Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs

Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs
Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs

Large Image :  Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs

Product Details:
Place of Origin: China
Brand Name: Lenovo
Model Number: Lenovo ThinkSystem SR635 V3 1U Rack Server
Payment & Shipping Terms:
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Contact Now

Lenovo ThinkSystem SR635 V3 1U Rack Server with 12x TruDDR5 DIMM Slots 1.5TB Memory and 4x Single-Width GPUs

Description
Form Factor / Depth: 1U Rack / 778mm (30.6”) Processor: One 4th Generation AMD EPYC™ Processors Or 5th Generation AMD EPYC™ Processors
Memory: 12x TruDDR5 DIMM Slots (1DPC) Maximum 1.5TB Using 128GB 3DS RDIMMs Up To 1DPC At 6400MHz GPU Supports: Up To 4x Single-width GPUs
RAID Support: Hardware RAID HBAs Power Supply: Dual Redundant AC & DC Supplies With Titanium/Platinum (ErP Lot9 Compliance)
Network Interface: OCP 3.0 Mezz Adapter; 1GbE Dedicated Management, Optional 2nd Port Using OCP Slot Slots: Up To 5x PCIe 4.0 Slots, Up To 2x PCIe 5.0 Slots; Up To 64x Lanes Via Onboard NVMe Connectors
Systems Management: ThinkSystem XClarity Controller (based On AST2600) Optional: Root Of Trust (RoT) Module With TPM 2.0
Highlight:

12x TruDDR5 DIMM Slots Lenovo Rack Server

,

1.5TB Memory Lenovo ThinkSystem SR635 V3

,

4x Single-Width GPUs 1U Rack Server

Lenovo ThinkSystem SR635 V3 1U Rack Server
Agility, Space, and Speed
The ThinkSystem SR635 V3 is designed with storage-rich versatility. You can use various combinations using AnyBay technology. Configure it for today's workloads and easily scale up or down as needed.
Ultimate Delivery in Performance
The versatile ThinkSystem SR635 V3 provides superior performance to offset rising costs with the 5th Gen AMD EPYC™ processor offering optimum processing power. Features enhanced bandwidth and storage speed for business applications, virtualization, and cloud environments.
Form Factor / Depth 1U rack / 778mm (30.6")
Processor One 4th Generation AMD EPYC™ Processors or 5th Generation AMD EPYC™ Processors
Memory
  • 12x TruDDR5 DIMM slots (1DPC)
  • Maximum 1.5TB using 128GB 3DS RDIMMs
  • Up to 1DPC at 6400MHz
Drive Bays
  • Up to 12x 2.5" hot-swap drive bays (SAS/SATA, NVMe, or AnyBay™)
  • Up to 16x EDSFF
  • Boot Drives: 2x 7mm drives at the rear
  • Internal M.2 module supporting up to two M.2 drives
GPU Support Up to 4x single-width GPUs
RAID Support Hardware RAID HBAs
Power Supply Dual Redundant AC & DC supplies with Titanium/Platinum (ErP Lot9 Compliance)
Network Interface OCP 3.0 mezz adapter; 1GbE Dedicated Management, optional 2nd port using OCP slot
Slots
  • Up to 5x PCIe 4.0 slots, up to 2x PCIe 5.0 slots
  • Up to 64x lanes via onboard NVMe connectors
Ports
Front:
  • Front operator panel or Integrated diagnostic panel
  • USB 3.1 (USB 10 Gbps)
  • USB 2.0 with XCC connection for mobile device
  • Optional: External Diagnostic Handset via external diagnostic port
  • Optional: VGA port
Rear:
  • 3x USB 3.1 ports (USB 10 Gbps)
  • VGA port
  • System ID LED
  • Error LED
  • NMI button
  • Optional: Serial (COM) port
Systems Management
  • ThinkSystem XClarity Controller (based on AST2600)
  • Optional: Root of Trust (RoT) module with TPM 2.0
Operating Systems
  • Microsoft Windows Server
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware vSphere

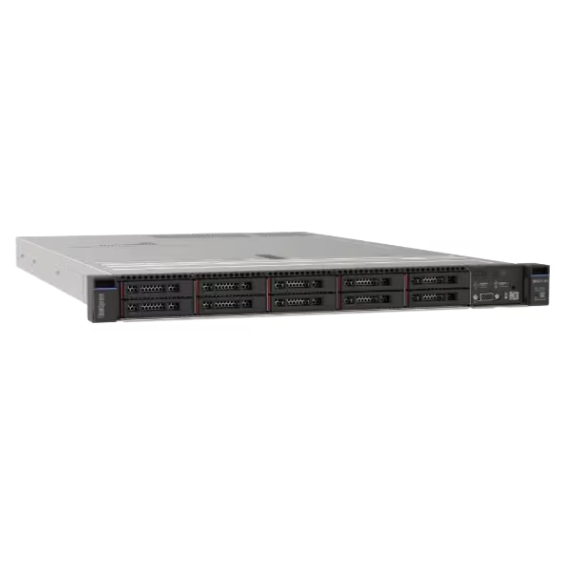

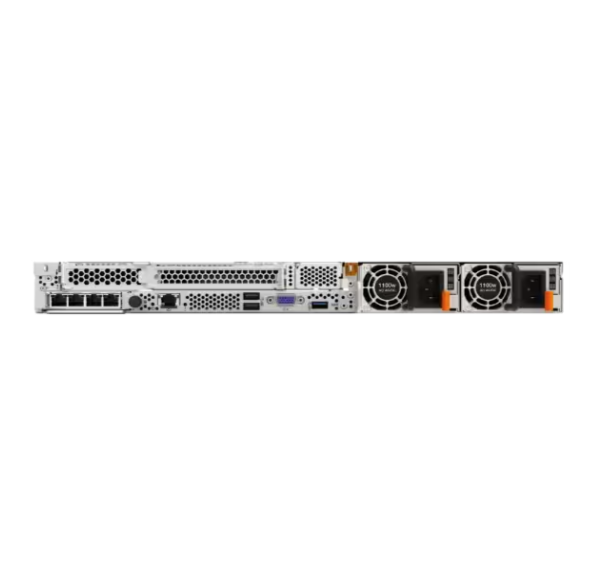

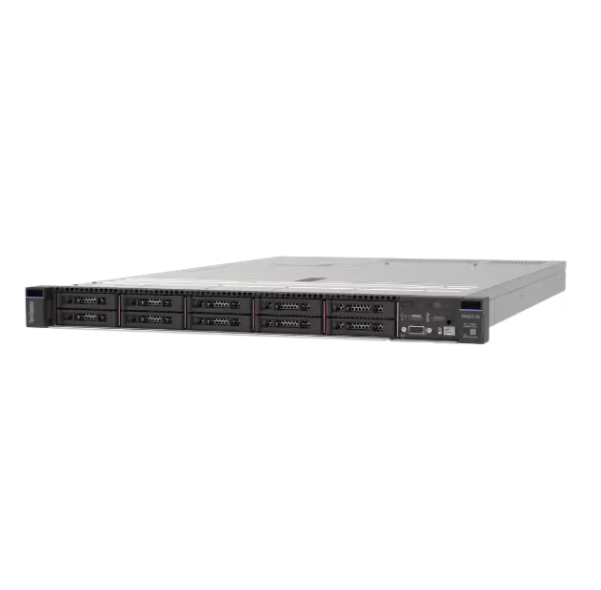

Lenovo ThinkSystem SR635 V3 front view Lenovo ThinkSystem SR635 V3 side view Lenovo ThinkSystem SR635 V3 rear view
