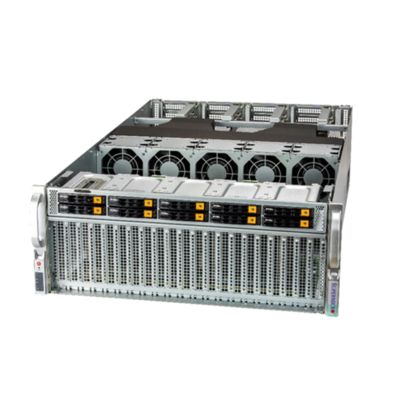

Name: Supermicro AS-4124GS-TNR 4U Rackmount GPU Server with 8TB DDR4-3200MHz RAM, 24 Hot-swap 2.5" Drive Bays, and 2000W Redundant Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: AS-4124GS-TNR
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	4U Rackmount	Processor:	Dual AMD EPYC™ 7003/7002 Series Processors
GPU:	8 Double-Width/Single-Width PCI-E 3.0/4.0 X16 Card (Full Height Full Length)	System Memory:	32 DIMM Slots* Up To 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Expansion Slots:	9 PCI-E 4.0 X16 (FHFL) Slots Or 10 PCI-E 4.0 X16 (FHFL) Slots Without NVMe Devices	Drive Bays:	Up To 24x 2.5" SAS/SATA Drive Bays 2x 2.5" SATA Supported Natively* 4x 2.5" NVMe (Gen3 Only) Supported Natively RAID Controller Option Available For 24 HDDs
Power Supply:	2000W Redundant Power Supplies With PMBus	Dimension (W X H X L):	73.5 X 40 X 203 Mm
Net Weight:	65.5 Lbs (29.7 Kg)	Gross Weight:	100 Lbs (45.3 Kg)
Highlight:	8TB DDR4-3200MHz RAM GPU Server , 24 Hot-swap 2.5" Drive Bays 4U Rackmount Server , 2000W Redundant Power Supplies Supermicro Server

Product Description

Supermicro AS-4124GS-TNR 4U GPU Server Supports up to 8 double-width GPUs

Key Applications

AI / Deep Learning
High Performance Computing (HPC)
Cloud Gaming
Molecular Dynamics Simulation

Key Features

Supports up to 8 double-width GPUs with direct connect for maximum performance
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
9 PCI-E 4.0 x16 (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
Up to 24 Hot-swap 2.5" drive bays (2x 2.5" SATA in RAID 1 via onboard Marvell 9230, 4x 2.5" NVMe Gen3)
2 GbE LAN ports (rear)
8 Hot-swap 11.5K RPM cooling fans
2000W (2+2) Redundant Titanium Level (96%+) Power Supplies

Form	Supermicro AS-4124GS-TNR 4U GPU Server
Processors	Dual AMD EPYC™ 7003/7002 Series Processors Socket SP3 Up to 128 Cores (64 per CPU)
GPU	Supported GPUs: 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct Supports both active and passive cooled GPUs CPU-GPU Interconnect: PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
System Memory	Memory Capacity: 32 DIMM slots Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Drive Bays Configuration	Hot-swap Up to 24x 2.5" SAS/SATA drive bays 2x 2.5" SATA supported natively 4x 2.5" NVMe (Gen3 only) supported natively RAID controller option available for 24 HDDs
Expansion slots	9 PCI-E 4.0 x16 (FHFL) slots or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
Power Supply	2000W Redundant Power Supplies with PMBus
Dimensions (W x H x L)	73.5 x 40 x 203 mm

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	AS-4124GS-TNR

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Supermicro AS-4124GS-TNR 4U Rackmount GPU Server with 8TB DDR4-3200MHz RAM, 24 Hot-swap 2.5" Drive Bays, and 2000W Redundant Power Supplies

8TB DDR4-3200MHz RAM GPU Server

24 Hot-swap 2.5" Drive Bays 4U Rackmount Server

2000W Redundant Power Supplies Supermicro Server
