Name: Supermicro GPU Server AS-2145GH-TNMR-LCC with Quad AMD Instinct MI300A APUs 8 Front NVMe Drive Bays and 2700W Titanium Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: AS-2145GH-TNMR-LCC
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
Max GPU Count:	4 Onboard GPUs	Supported GPU:	AMD: Instinct™ MI300A APU
Slot Count:	Onboard Memory	Drive Bays Configuration:	Total 8 Bays 8 Front Fixed 2.5" NVMe Drive Bays
Expansion Slots:	Default 4 PCIe 5.0 X16 FHFL Slots	Power Supply:	4x 2700W Redundant (3 + 1) Titanium Level (96%) Power Supplies
Gross Weight:	101.1 Lbs (45.86 Kg)	Available Color:	Silver
Highlight:	Quad AMD Instinct MI300A APUs Supermicro GPU Server , 8 Front NVMe Drive Bays 2U Rackmount Server , 2700W Titanium Power Supplies AMD Instinct MI300A Server

Product Description

Supermicro AS-2145GH-TNMR-LCC

2U Liquid Cooled System with Quad AMD Instinct™ MI300A Accelerators

Onsite service is required for this system

Key Applications

Artificial Intelligence (AI), Large Language Model (LLM), Cloud Solution Provider (CSP), High Performance Computing (HPC), Research Lab

Key Features

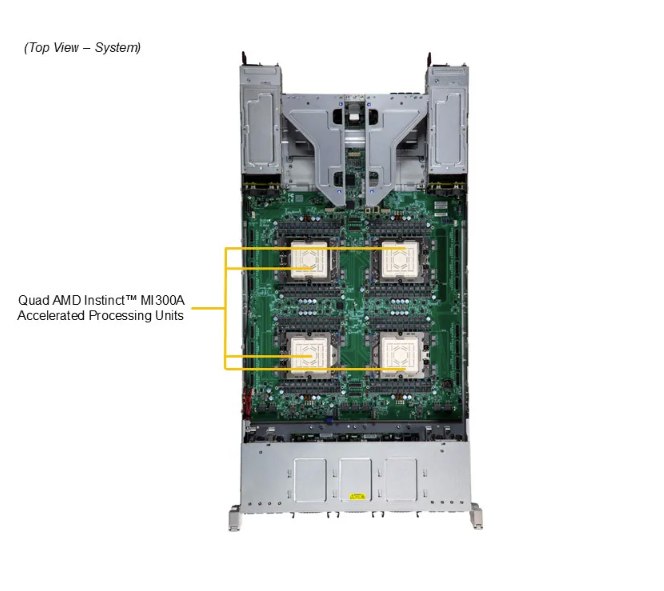

High density quad AMD Instinct™ MI300A processors
Onboard 512GB HBM3 unified memory
Optional PCIe configurations up to 6 PCIe x16 FHHL slots
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

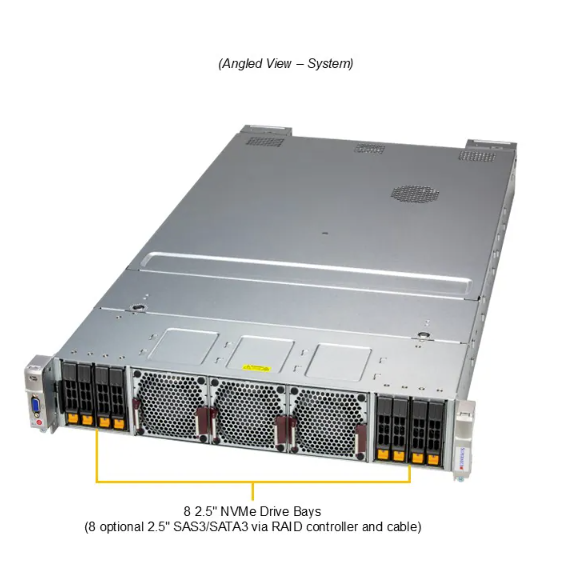

Default 8 2.5" NVMe drive bays or optional 8 2.5" SAS3/SATA3 drive bays via storage add-on card
2 Internal NVMe/SATA M.2 slots
3 heavy duty fans with liquid cooling system
4x 2700W redundant Titanium level power supplies

Technical Specifications

Form Factor	Supermicro AS-2145GH-TNMR-LCC 2U GPU Server
Processors	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU Configuration	Max GPU Count: 4 onboard GPUs Supported GPU: AMD Instinct™ MI300A APU
System Memory	Slot Count: Onboard Memory Max Memory: Up to 512GB ECC HBM3
Drive Bays Configuration	Default: Total 8 bays - 8 front fixed 2.5" NVMe drive bays Option A: Total 8 bays - 8 front fixed 2.5" SAS/SATA drive bays SAS/SATA support may require additional storage controller and/or cables M.2: 2 M.2 NVMe slots (M-key 2280/22110)
Expansion Slots	Default: 4 PCIe 5.0 x16 FHFL slots Option A: 4 PCIe 5.0 x16 FHFL slots, 2 PCIe 5.0 x16 FHHL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Power Supply	4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 101.1 lbs (45.86 kg) Net Weight: 78 lbs (35.38 kg) Available Color: Silver

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	AS-2145GH-TNMR-LCC

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
