Supermicro Hyper SuperServer SYS-221H-TNR 2U Rackmount Server with 5th Gen Intel® Xeon®, Up to 4TB DDR5 RDIMM, and Up to 4 Double-Width GPUs

Supermicro Hyper SuperServer SYS-221H-TNR 2U Rackmount Server with 5th Gen Intel® Xeon®, Up to 4TB DDR5 RDIMM, and Up to 4 Double-Width GPUs
Supermicro Hyper SuperServer SYS-221H-TNR 2U Rackmount Server with 5th Gen Intel® Xeon®, Up to 4TB DDR5 RDIMM, and Up to 4 Double-Width GPUs Supermicro Hyper SuperServer SYS-221H-TNR 2U Rackmount Server with 5th Gen Intel® Xeon®, Up to 4TB DDR5 RDIMM, and Up to 4 Double-Width GPUs Supermicro Hyper SuperServer SYS-221H-TNR 2U Rackmount Server with 5th Gen Intel® Xeon®, Up to 4TB DDR5 RDIMM, and Up to 4 Double-Width GPUs Supermicro Hyper SuperServer SYS-221H-TNR 2U Rackmount Server with 5th Gen Intel® Xeon®, Up to 4TB DDR5 RDIMM, and Up to 4 Double-Width GPUs
Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-221H-TNR
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
Form Factor: 2U Rackmount Processor: 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors
Max GPU Count: Up To 4 Double-width Or 8 Single-width GPUs Max Memory (1DPC): Up To 4TB 5600MT/s ECC DDR5 RDIMM
Drive Bays Configuration: Default: Total 8 Bays Power Supply: 2x 1200W Redundant Titanium Level (96%) Hot-plug Power Supplies
Gross Weight: 66 Lbs (30 Kg) Net Weight: 40 Lbs (18.2 Kg)
Available Color: N/A
Highlight:

5th Gen Intel® Xeon® Supermicro Hyper SuperServer

,

Up to 4TB DDR5 RDIMM Supermicro Storage Server

,

Up to 4 double-width GPUs 2U Rackmount Server

Product Description

Supermicro Hyper SuperServer SYS-221H-TNR
Key Applications
Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Key Features
  • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for up to 4 double-width or 8 x8 single-width GPU/Accelerator cards
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 8x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
  • 4 heavy duty hot-swap fans with optimal fan speed control
Technical Specifications
Form Factor 2U Rackmount Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
Processor Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T; Up to 320MB Cache per CPU
GPU Max GPU Count: Up to 4 double-width or 8 single-width GPUs
Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A4000, L40S, L4, A40, A16, A100

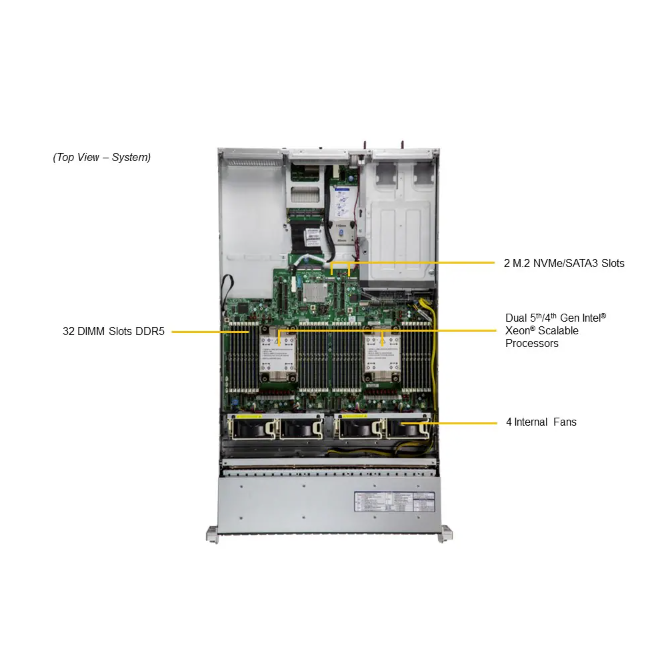

System Memory Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

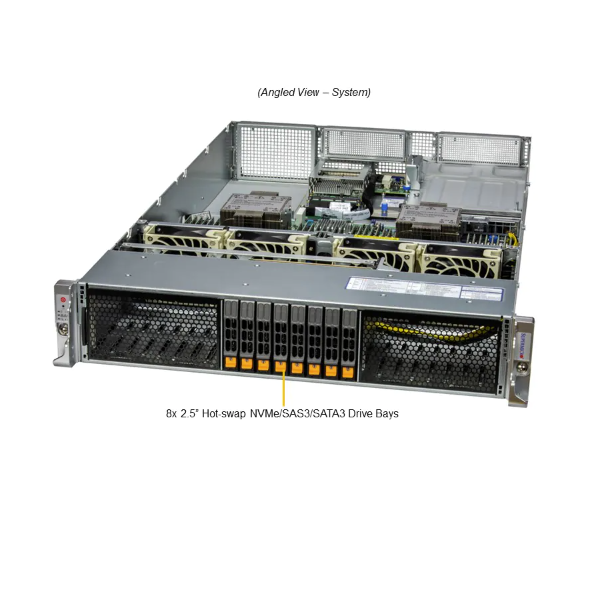

Drive Bays Configuration Default: Total 8 bays - 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 16 bays - 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)

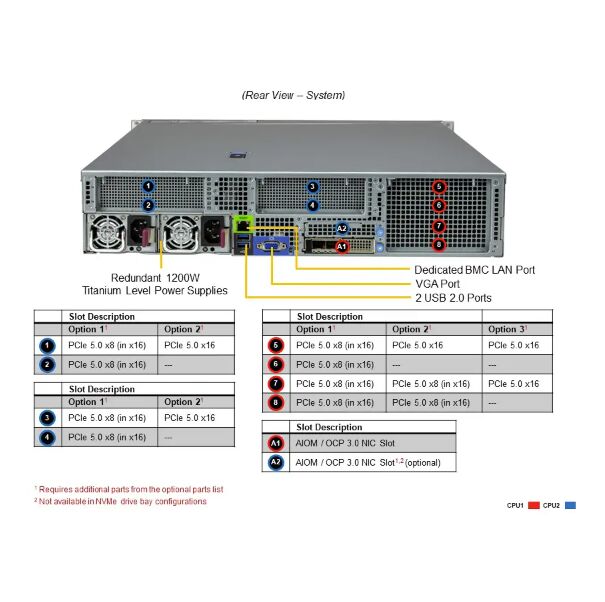

Expansion Slots PCI-Express (PCIe) Configuration:
Option A*: 4 PCIe 5.0 x16 FH/10.5"L double-width slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B*: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
CXL Support: Up to 4 CXL 1.1 x16/x8 devices
M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
On-Board Devices SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset: Intel® C741
Network Connectivity: Via AIOM
Power Supply 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimensions and Weight Weight: Gross Weight: 66 lbs (30 kg), Net Weight: 40 lbs (18.2 kg)
Available Color: N/A
