Name: Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-621H-TN12R
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors
Max GPU Count:	Up To 4 Double-width Or 8 Single-width GPUs	Supported GPU:	NVIDIA PCIe: H100, L40, L40S, L4, A40, A16, A100
Slot Count:	32 DIMM Slots	Gross Weight:	63 Lbs (28.6 Kg)
Net Weight:	37 Lbs (16.8 Kg)	Available Color:	N/A
Power Supply:	2x 1200W Redundant Titanium Level (96%) Hot-plug Power Supplies
Highlight:	5th Gen Intel® Xeon® Supermicro Hyper SuperServer , Up to 4 double-width GPUs Supermicro Storage Server , 32 DIMM slots Supermicro 2U Rackmount Server

Product Description

Supermicro Hyper SuperServer SYS-621H-TN12R

Key Applications

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
4 heavy duty hot-swap fans with optimal fan speed control

Technical Specifications

Form Factor	2U Rackmount Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6") Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
Processor	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) Up to 64C/128T; Up to 320MB Cache per CPU
GPU	Max GPU Count: Up to 4 double-width or 8 single-width GPUs Supported GPU: NVIDIA PCIe: H100, L40, L40S, L4, A40, A16, A100
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 12 bays 12 front hot-swap 3.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
Expansion Slots	PCI-Express (PCIe) Configuration: Option A: 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots + 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B: 8 PCIe 5.0 x8 (in x16) HH/10.5"L slots + 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) M.2: 2 M.2 NVMe/SATA slots (B+M-key 2280/22110)
Power Supply	2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimensions and Weight	Weight: Gross Weight: 63 lbs (28.6 kg) Net Weight: 37 lbs (16.8 kg) Available Color: N/A

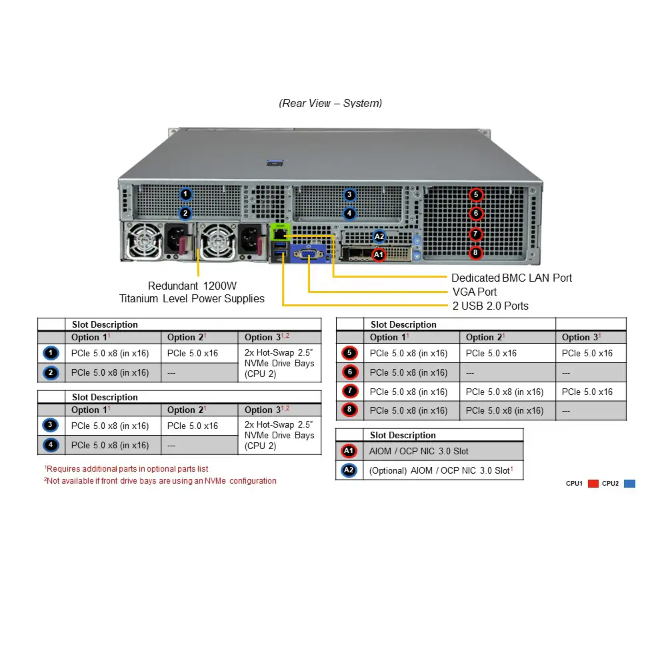

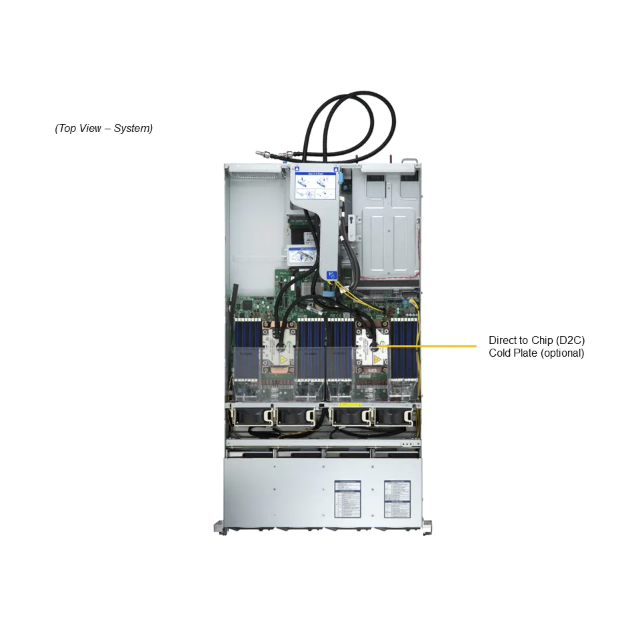

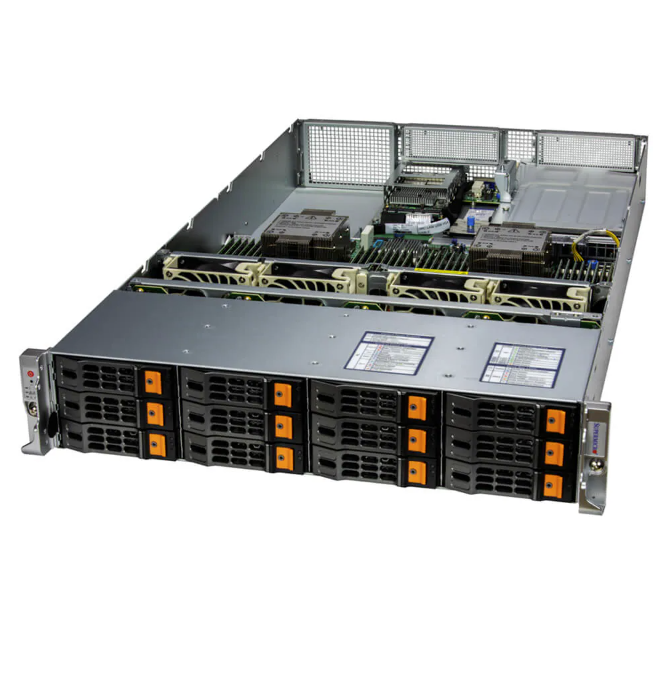

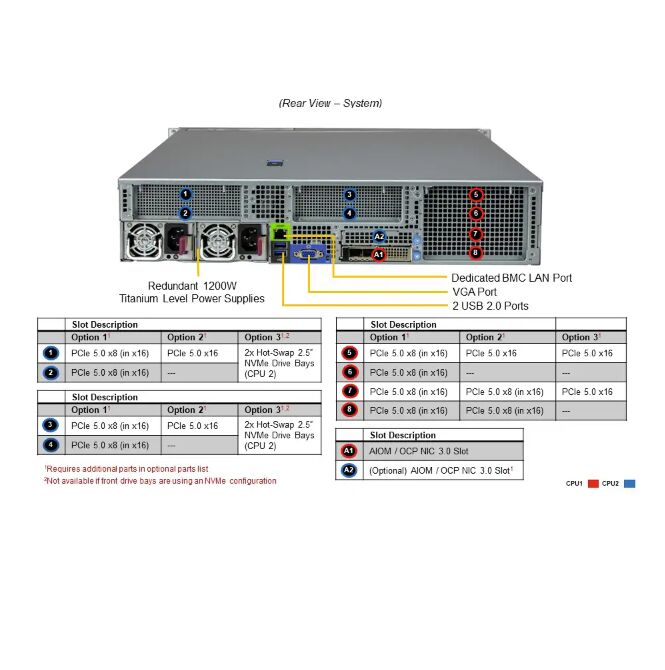

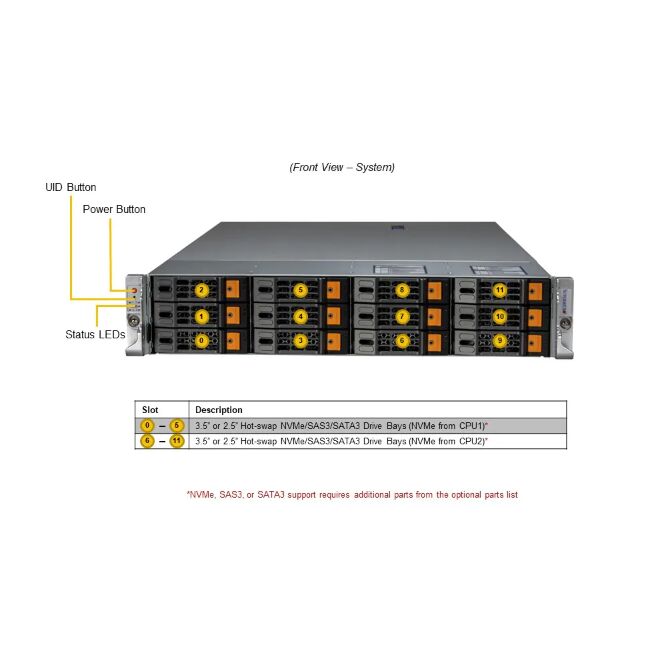

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-621H-TN12R

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Supermicro Hyper SuperServer SYS-621H-TN12R with 5th Gen Intel® Xeon®, Up to 4 Double-Width GPUs, and 32 DIMM Slots
