Name: Supermicro SuperServer SYS-620C-TN12R Storage Server with Dual Socket P4 3rd Gen Intel Xeon Scalable Processors and 12 Hot-Swap Hybrid Drive Bays
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-620C-TN12R
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Up To 40C/80T; Up To 60MB Cache Per CPU
Max GPU Count:	Up To 2 Double-width Or 6 Single-width GPUs	Supported GPU:	NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
Slot Count:	16 DIMM Slots	Gross Weight:	59 Lbs (26.76 Kg)
Net Weight:	33 Lbs (15 Kg)	Available Color:	Black Front & Silver Body
Power Supply:	2x 1200W Redundant (1 + 1) Titanium Level (96%) Power Supplies
Highlight:	Dual Socket P4 Supermicro Storage Server , 12 Hot-Swap Hybrid Drive Bays SuperServer , 3rd Gen Intel Xeon Scalable SuperServer

Product Description

Supermicro CloudDC SuperServer SYS-620C-TN12R

Key Applications

Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Content Delivery Networks, Edge Nodes

Key Features

Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Intel® C621A Chipset
16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
4 PCIe 4.0 x8 FHHL (optional: combine into 2 PCIe 4.0 x16); 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
3 heavy duty fans with optimal fan speed control, 1 air shroud
1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
1 VGA, 1 COM, 2 USB 3.0 (rear)

Form Factor	2U Rackmount Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5") Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5")
Processor	Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU
GPU	Max GPU Count: Up to 2 double-width or 6 single-width GPUs Supported GPU: NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100 Intel PCIe: Intel Data Center GPU Flex 170
System Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration	Default: Total 12 bays - 12 front hot-swap 3.5" NVMe/SAS/SATA drive bays Option A: Total 12 bays - 12 front hot-swap 2.5" NVMe/SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280; VROC required for RAID)
Expansion Slots	Default: 4 PCIe 4.0 x8 (in x16) FHFL double-width slots, 2 PCIe 4.0 x16 FHHL slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) Option A: 2 PCIe 4.0 x16 FHFL double-width slots, 2 PCIe 4.0 x16 FHHL slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) Option B: 4 PCIe 4.0 x16 FHFL double-width slots, 2 PCIe 4.0 x16 FHHL slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
System Cooling	Fans: Up to 3x 8cm heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud
Power Supply	2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 59 lbs (26.76 kg), Net Weight: 33 lbs (15 kg) Available Color: Black front & silver body

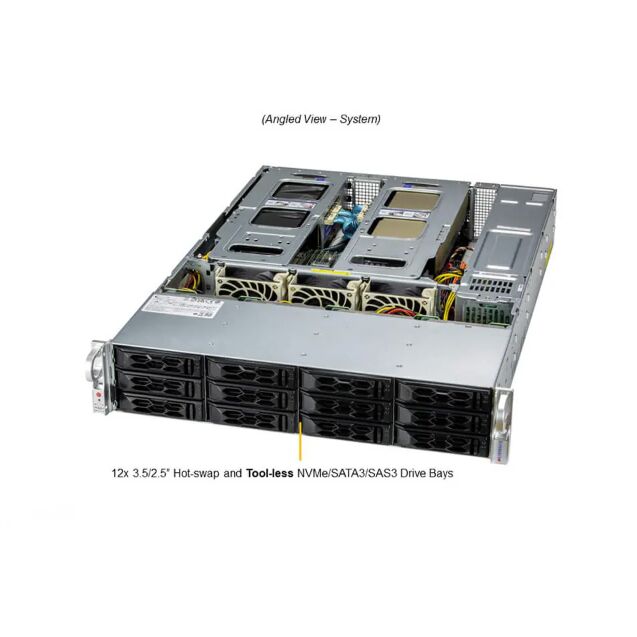

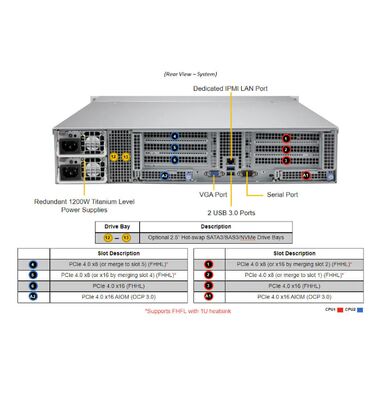

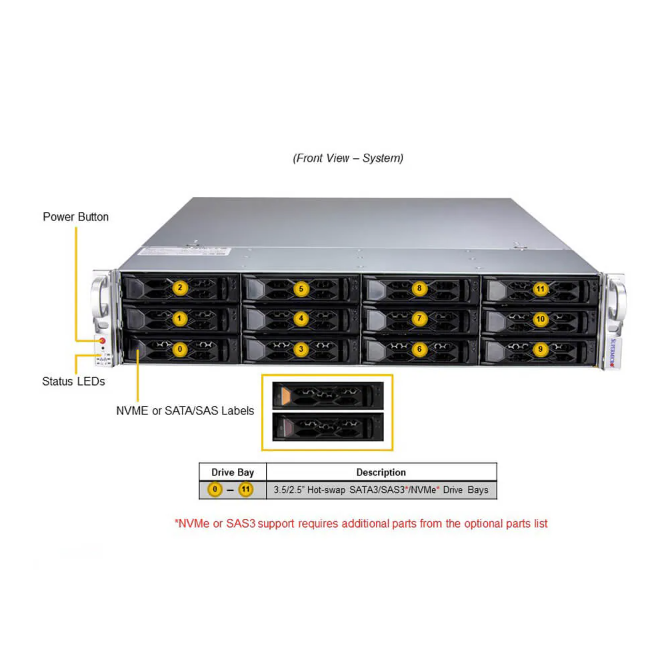

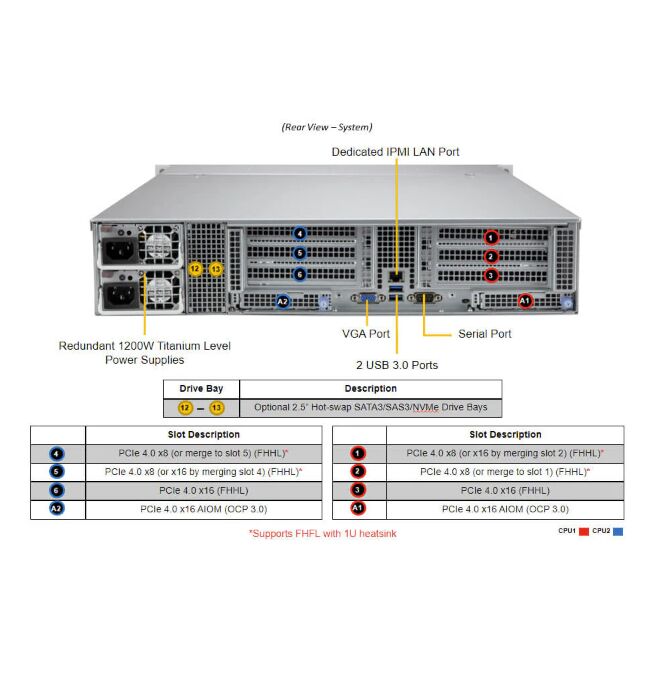

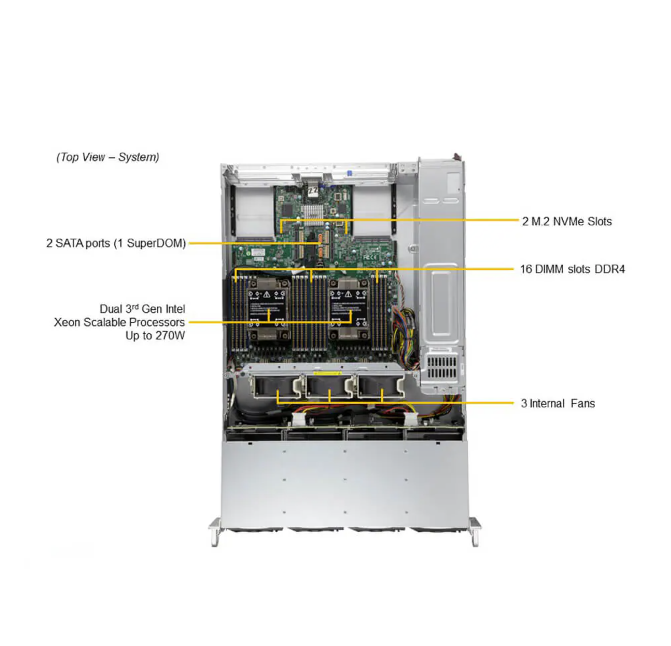

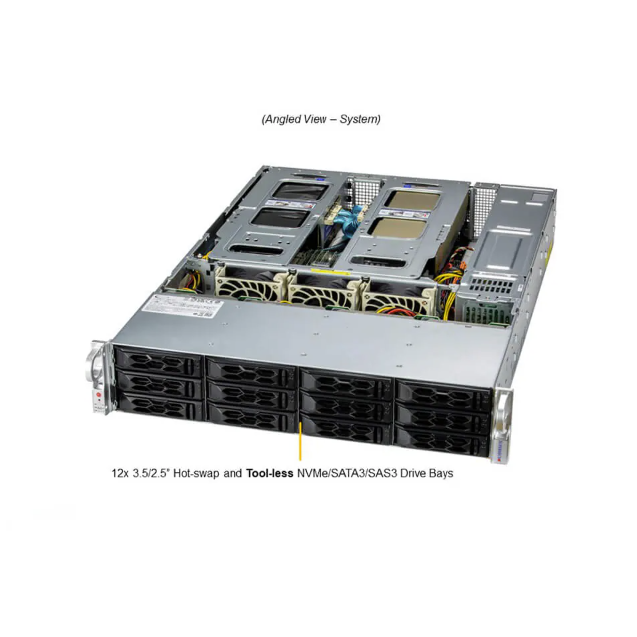

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-620C-TN12R

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Supermicro SuperServer SYS-620C-TN12R Storage Server with Dual Socket P4 3rd Gen Intel Xeon Scalable Processors and 12 Hot-Swap Hybrid Drive Bays
