| Brand Name: | inspur |
|---|---|

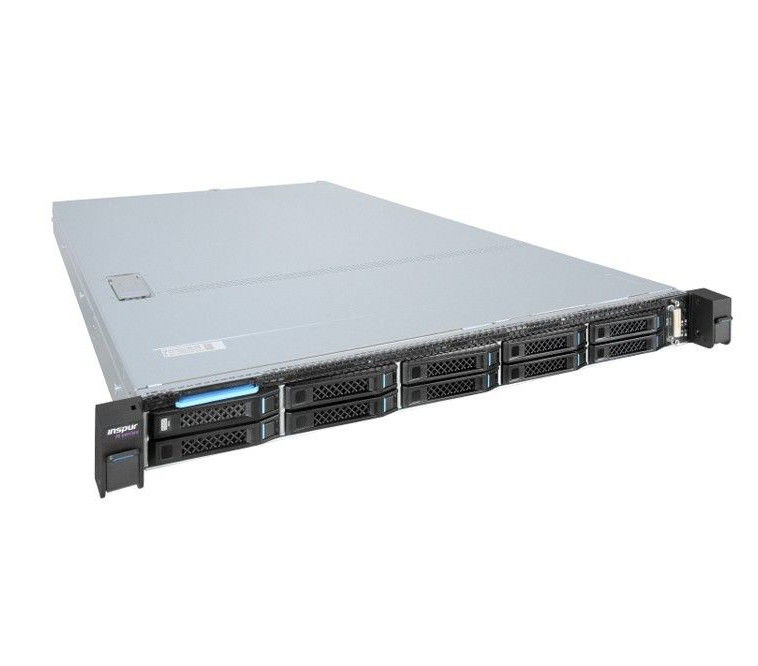

| Model Number: | NF5180M5 |
| Minimum Order Quantity: | 1 |
| Supply Ability: | 50pcs per week |
| Highlight: | 4210R Inspur Server,NF5180M5 Inspur Server,inspur nf5180m5 |
||
|---|---|---|---|
| Features and Specifications | ||||||
| Processor |
||||||
| Processor Type | Intel® Skylake Family (supports up to two 205W processors) | |||||
| Intel® Cascade Lake Family (supports up to two 205W processors) | ||||||
| Chipset | ||||||
| Chipset Type | Intel® C62x Chipset Family | |||||
| Memory | ||||||
| Memory Type | ECC Registered DDR4, RDIMM, LRDIMM, NVDIMM | |||||
| Memory Slot Qty. | 24 | |||||
| Total Memory | Supports up to 3TB (128GB per memory module) | |||||
| Capacity | ||||||
| I/O | ||||||
| USB | 3.5x4 model: | |||||
| 2 rear USB3.0 ports, 1 front USB3.0 port, 1 front USB2.0 port and 1 built-in USB3.0 port 2.5x10 model: | ||||||
| 2 rear USB3.0 ports, 2 front USB2.0 ports and 1 built-in USB3.0 port | ||||||
| VGA | 1 front VGA port | |||||
| 1 rear VGA port | ||||||
| IPMI | 1 RJ45 IPMI port | |||||
| Display | ||||||
| Controller Type | Integrated in the Aspeed2500 chip, supports up to 1280*1024 resolution | |||||
| SAS Backplane | ||||||
| SAS3.0 Backplane | Supports hot-plug SAS/SATA/NVME drives | |||||
| NIC | ||||||
| NIC Controller | Supports OCP/PCIE card | |||||
| Management | ||||||
| Management Chip | It integrates 1 independent 1000Mbps network interface, special for IPMI remote management. | |||||
| PCI Expansion Slot | • Onboard: 1 PCI Express 3.0 ×16 slot + 1 PCI Express 3.0 ×24 slot, used to support PCI-E Riser card. | |||||
| • The Riser card supports horizontal inserted half-height and full-height cards. | ||||||
| • Standa
|
||||||
| PCIE0 slot (CPU0 out): 1 Riser card, supporting 1 PCI Express 3.0 x16 slot | ||||||
| • Full configuration 1: | ||||||
| PCIE slot0 (CPU0 out): 1 Riser card, supporting 1 PCI Express 3.0 x16 slot | ||||||
| PCIE slot1 (CPU0/1 out): 1 Riser card, supporting 1 PCI Express 3.0 x8 slot (CPU0) +1 PCI Express 3.0 x16 slot (CPU1) | ||||||
| • Full configuration 2: | ||||||
| PCIE slot0 (CPU0 out): 1 Riser card, supporting 1 PCI Express 3.0 x16 slot | ||||||
| PCIE slot1 (CPU0/1 out): 1 Riser card, supporting 1 PCI Express 3.0 x8 slot (CPU0) + 4 NVME ports (CPU1) | ||||||
| OCP | ||||||
| OCP Slot | • Onboard: 1 Type A+ slot, 1 Type A+B slot, and 1 Type C slot | |||||
| • Supports OCP/PHY card | ||||||
| Drive | ||||||
| Drive Type | SAS, SATA, NVME, SATA M.2, PCIE M.2 | |||||
| External Storage Drive | ||||||
| Optical Drive | Supports external USB drive | |||||
| TF Card | Built-in TF card | |||||
| Power | ||||||
| Specification | Supports power supply of 550W/800W/1300W/1600W and above output power; 2 power modules; 1+1 redundancy; supports single-power/dual-power | |||||
| Power Input | Please refer to the power input on the nameplate label of the host. | |||||
| Physical | ||||||
| Packing Box | 651 width × 247 height × 1031 depth (unit: mm) | |||||
| Dimensions | ||||||
| Host Machine | 435 width × 43 height × 750 depth (unit: mm) | |||||
| Dimensions | ||||||
| Product Weight | Gross weight of full configuration (Gross weight includes: Host + Packing Box + Rails + Accessory Box) | |||||
| 2.5x4 model: 26.5kg | ||||||
| 3.5x4 model: 27.2kg | ||||||
