Name: Supermicro GPU SuperServer SYS-822GS-NB3RT With Intel® Xeon® 6700/6500 series processors with P-cores
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-822GS-NB3RT
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	8U Rackmount	Processor:	Intel® Xeon® 6700/6500 Series Processors With P-cores
GPU:	Max GPU Count: 8 Onboard GPUs Supported GPU: NVIDIA SXM: HGX B300 8-GPU (288GB) GPU-GPU Interconnect: NVIDIA® NVLink® With NVSwitch™	System Memory:	Slot Count: 32 DIMM Slots Max Memory (2DPC): Up To 8TB 6400MT/s ECC DDR5 RDIMM
Expansion Slots:	Default 2 PCIe 5.0 X16 FHHL Slots	Drive Bays Configuration:	Default: Total 8 Bays 8 Front Hot-swap E1.S NVMe Drive Bays M.2: 2 M.2 NVMe Slots (M-key; RAID Support Via S3808N Controller
Power Supply:	4x 5250W Redundant (2 + 2) Titanium Level (96%) Power Supplies	Gross Weight:	302 Lbs (137 Kg)
Net Weight:	263 Lbs (119 Kg)	Available Color:	Silver
Highlight:	8 Onboard GPUs Supermicro GPU SuperServer , NVIDIA HGX B300 8-GPU Supermicro GPU SuperServer , Up to 8TB 6400MT/s ECC DDR5 RDIMM Supermicro GPU SuperServer

Product Description

DP Intel 8U System with NVIDIA HGX B300 8-GPU

Key Applications

Scientific Research, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Finance Services and Fraud Detection, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI, High Performance Computing (HPC), Autonomous Vehicle Technologies,

Key Features

Dual Intel® Xeon® 6700 series processors with P-cores, up to 350W TDP; 8x B300 Blackwell Ultra SXM GPUs with NVSwitch;

8x CX-8 Integrated 800G NICs supporting IB XDR or ETH 2x400GbE per NIC; 32x DIMM slots supporting up to 8TB of memory;

8x front hot-swap E1.S + 2x M.2 NVMe drive bays;

2x PCIe 5.0 x16 FHHL slots;

1x USB 3.0, 1x USB 2.0, 1x Mini-DP, 1x BMC/IPMI GbE LAN, 2x 10GbE NIC (X710); 6x redundant (3+3) 6.6kW Titanium level power supplies;

8U air-cooled chassis with front I/O;

Form Factor	8U Rackmount Enclosure: 449 x 356 x 950mm (17.6" x 13.8" x 37.4") Package: 1255 x 700 x 750mm (51" x 27.6" x 29.5")
Processor	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
GPU	Max GPU Count: 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX B300 8-GPU (288GB) GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™
System Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 6400MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key; RAID support via S3808N controller
Expansion Slots	Default 2 PCIe 5.0 x16 FHHL slots
On-Board Devices	Chipset: System on Chip Network Connectivity: 8 OSFP 800GbE
Power Supply	6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 302 lbs (137 kg) Net Weight: 263 lbs (119 kg) Available Color: Silver

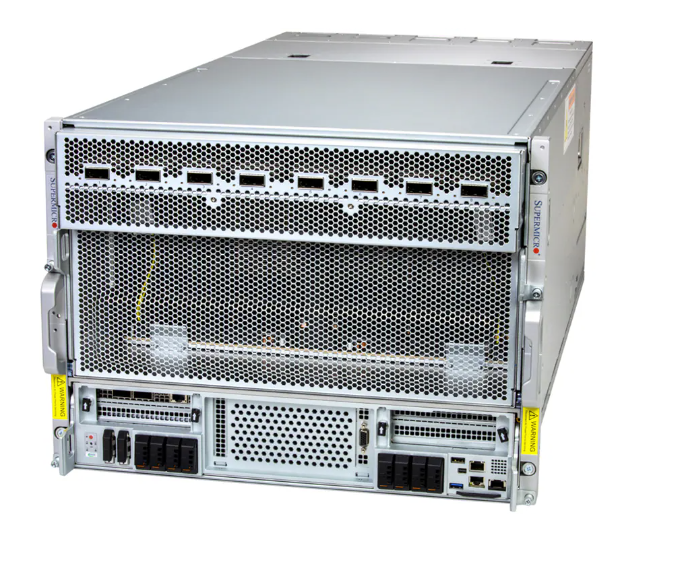

Supermicro GPU SuperServer SYS-822GS-NB3RT With Intel® Xeon® 6700/6500 series processors with P-cores 0

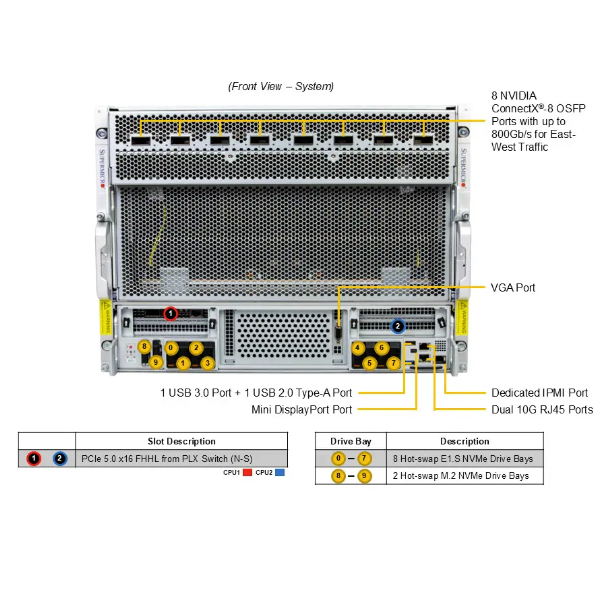

Supermicro GPU SuperServer SYS-822GS-NB3RT With Intel® Xeon® 6700/6500 series processors with P-cores 1

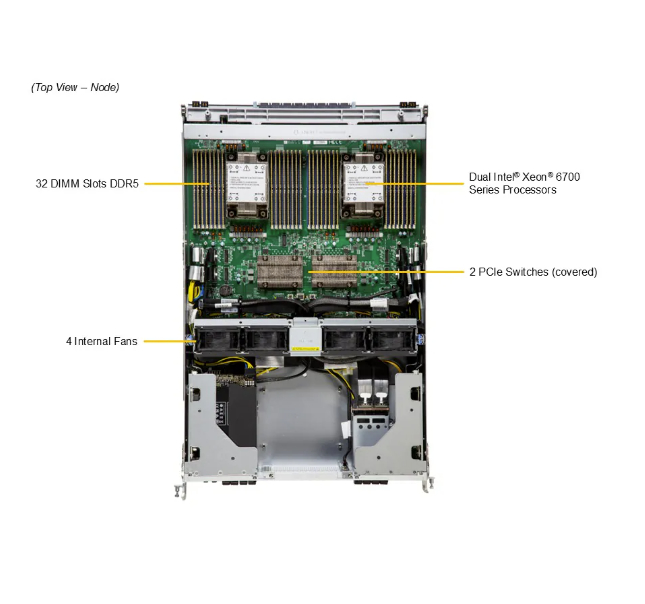

Supermicro GPU SuperServer SYS-822GS-NB3RT With Intel® Xeon® 6700/6500 series processors with P-cores 2

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-822GS-NB3RT

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
