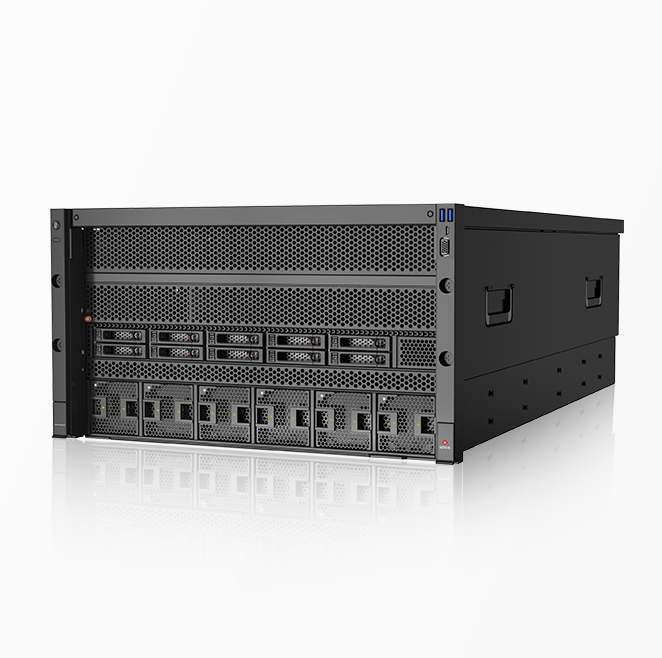

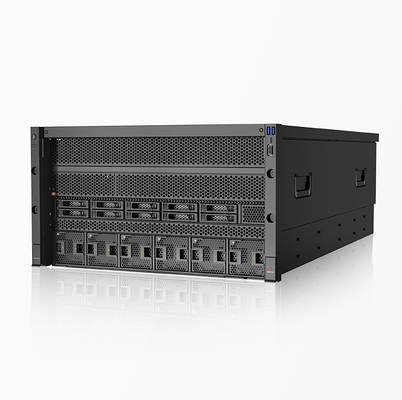

FusionServer G6550 V8 6U AI Server with 5th Gen AMD EPYC™ 9005 Series Processors and 10 Dual-Width GPU Accelerator Cards

–Up to 10 x 2.5″ SAS/SATA/NVMe drives

–supports two M.2 SSDs

RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures;

RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

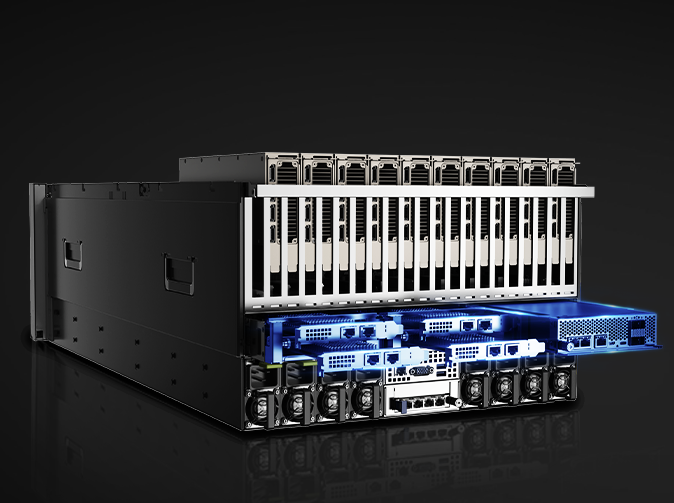

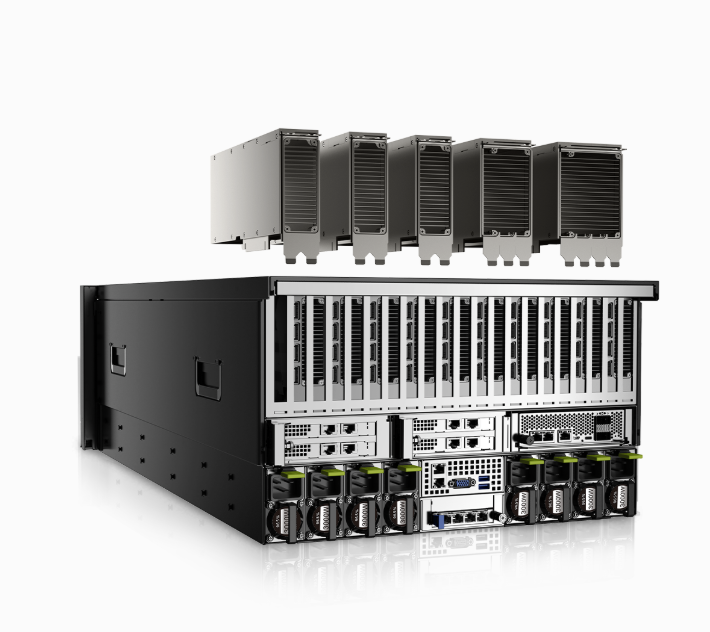

–Passthrough model:Up to 11 x standard PCIe 5.0 slots

–Switch model:Up to 15 x standard PCIe 5.0 slots

GPU: 12 or 18 x 6056++ fans in N+1 redundancy

CPU: 6 x 6056++ fans in N+1 redundancy

– The iBMC chip integrates one dedicated management GE port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.

– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote

management user interface based on HTML5/VNC KVM, and supports out-of-band management

functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified

management.

– It is optional to configure FusionDirector that enables intelligent, automatic, visualized, and refined

management throughout the server lifecycle.

SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux,

Oracle, Ubuntu, and openEuler
