Name: Xfusion FusionServer 5288 V7 4U Rack Server with 4th/5th Gen Intel® Xeon® Scalable processors, 32 x DDR5 DIMMs, and 10 x PCIe slots
Brand: Beijing Core-Net Techonology Co., Limited
SKU: 5288 V7
Price: 485.00 USD
Availability: InStock

Detail Information

Form Factor:	4U Rack Server	Processor:	1 Or 2 X 4th/5th Gen Intel® Xeon®Scalable Processors, With Up To 385 W TDP Per Processor
Chipset:	Emmitsburg PCH	Memory:	32 X DDR5 DIMMs, With Up To 5600 MT/s Speed
PCIe Expansion:	Up To 10 X PCIe Slots, Including 2 X FlexIO Slots Dedicated For OCP 3.0 NICs And 10 X PCIe Expansion Slots. PCIe 5.0 Is Supported	GPU Card:	8 X Single-width GPU Cards*
Fan Module:	6 Or 8 X Hot-swappable Counter-rotating Fans In N+1 Redundancy	Dimensions(H X W X D):	Chassis With 3.5ʺ Drives: 175 Mm × 447 Mm × 798 Mm (6.89 In. X 17.60 In. X 31.42 In.)
Highlight:	4th/5th Gen Intel® Xeon® Scalable processors FusionServer 5288 V7 , 32 x DDR5 DIMMs 4U Rack Server , 10 x PCIe slots HUAWEI Storage Server

Product Description

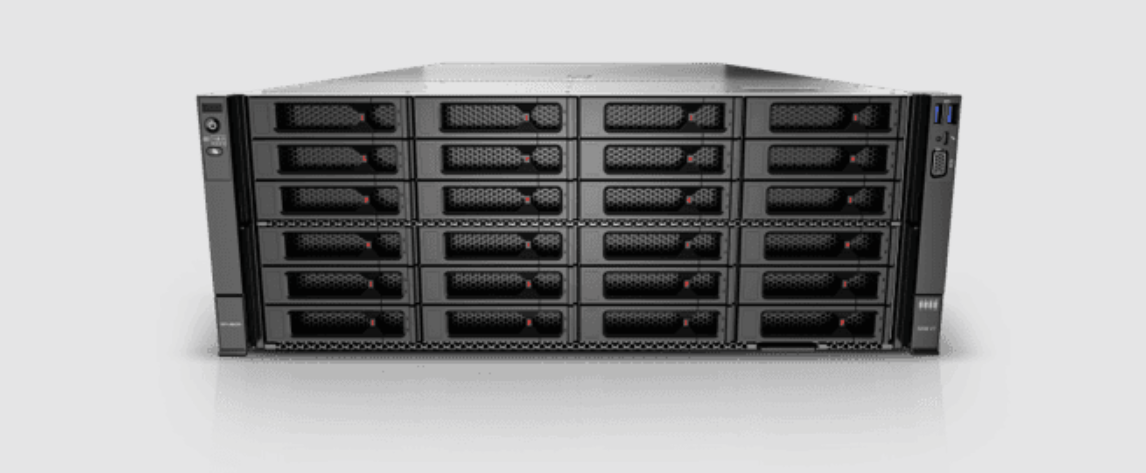

Xfusion FusionServer 5288 V7 Rack Server

The FusionServer 5288 V7 is a next-generation 4U 2-socket rack server engineered for demanding workloads including Internet services, data centers, cloud computing, virtualization, distributed storage, big data processing, and enterprise applications.

This server delivers exceptional performance with low power consumption, high scalability and reliability, simplified deployment, and comprehensive management capabilities.

Key Features

Optimized for Internet Data Center (IDC) and core IT services
Advanced cloud computing and virtualization support
High-performance distributed storage and big data processing
Enterprise and telecom service application ready

Technical Specifications

Form Factor	4U rack server
Processor	1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor
Chipset	Emmitsburg PCH
Memory	32 x DDR5 DIMMs, with up to 5600 MT/s speed
Local Storage	Hot-swappable drive configurations: • 4 x 2.5ʺ SAS/SATA drives/SSDs • 24 to 44 x 3.5ʺ SAS/SATA drives • 4 x NVMe SSDs Flash storage: 2 x M.2 SSDs
RAID	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Expansion capability for multiple network types. OCP 3.0 NICs supported. Two FlexIO card slots support two OCP 3.0 NICs with hot swap and PCIe 5.0 support
PCIe Expansion	Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 supported
GPU Card	8 x single-width GPU cards*
Fan Module	6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply	900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

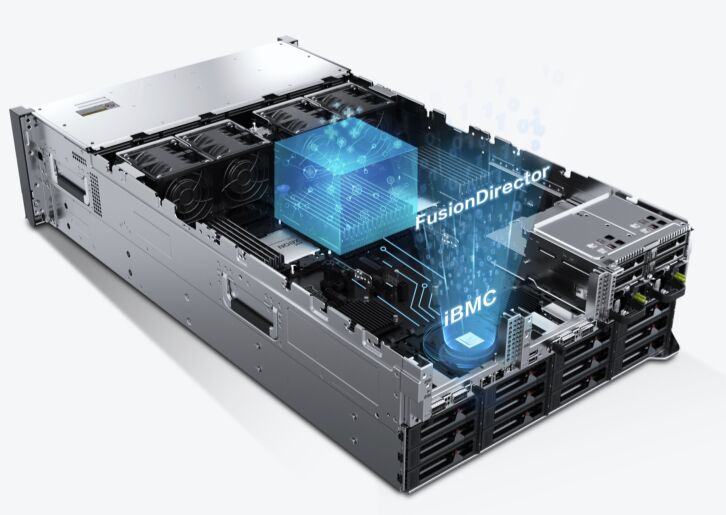

Management	iBMC chip with dedicated management GE network port providing comprehensive management features including fault diagnosis, automatic O&M, and hardware security hardening. Supports Redfish, SNMP, and IPMI 2.0 interfaces with HTML5/VNC KVM remote management. Optional FusionDirector management software for intelligent, automated, visualized lifecycle management.
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 175 mm * 447 mm * 798 mm (6.89 in. x 17.60 in. x 31.42 in.)

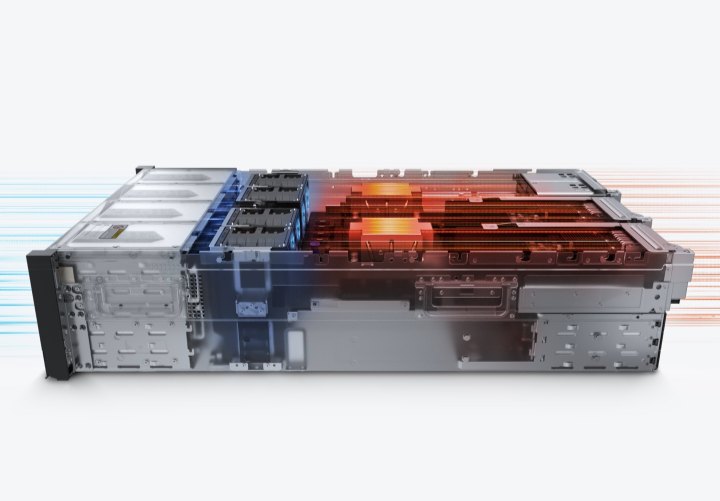

Product Visualization

Tag:

Place of Origin:	China
Brand Name:	Xfusion
Model Number:	5288 V7

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
