| Maximum Number Of Controllers: | 32 | System Cache: | 256GB-8TB |
|---|---|---|---|
| Supported Interface Protocols: | FC, ISCSI, NFS, CIFS, FC-NVMe, NVMe Over RoCE, NDMP, S3*, NFS Over RDMA | Front-End Port Types: | 8/16/32/64 Gbit/s FC/FC-NVMe And 10/25/40/100 Gbps Ethernet, 25/100Gbps NVMe Over RoCE/NFS Over RDMA |
| Back-End Port Types: | 100G RDMA/SAS 3.0 | Hard Disk Type: | 1.92TB/3.84TB/7.68TB/15.36TB* Palm-sized NVMe SSD 960GB/1.92TB/3.84TB/7.68TB/15.36TB* SAS SSD 3.84TB/7.68TB/15.36TB/30.72TB Palm-sized Encrypted NVMe SSD |
| Maximum Number Of Hot-swappable I/O Modules/controller Enclosures: | 12 | Number Of LUNs: | 16384 |
| Highlight: | 3200 SSDs All-Flash Storage,8TB System Cache HUAWEI Storage Server,NVMe over RoCE HUAWEI OceanStor Dorado 5000 V6 |
||

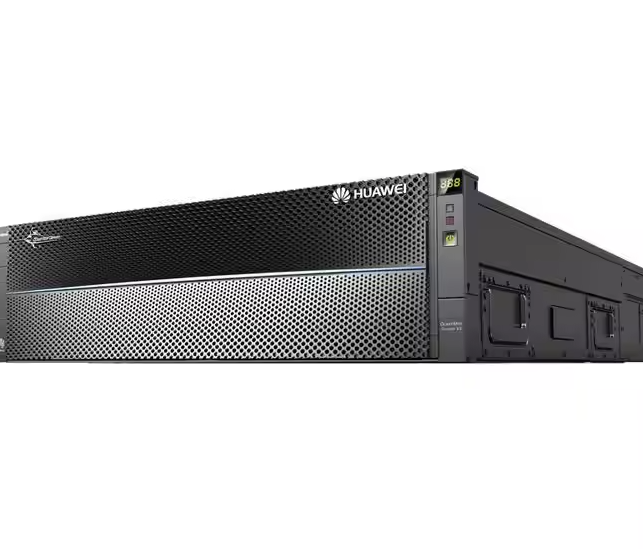

Huawei OceanStor Dorado 5000 V6 and 6000 V6 represent the next generation of mid-range all-flash storage systems, engineered to address critical enterprise requirements for high availability, optimal utilization, and ease of use. These systems deliver massive storage capacity and rapid data access for medium to large enterprises.
Built on proprietary flagship hardware and FLASHLINK® intelligent algorithms specifically optimized for flash media, these systems feature end-to-end Non-Volatile Memory Express (NVMe) architecture. They combine the intelligence and efficiency of the Smart series with the high reliability of the Hyper series, ensuring always-on performance for mission-critical services.
The industry-first built-in intelligent accelerator module enhances storage intelligence during application operations, making these systems ideal for database, virtualization, and big data analytics scenarios across carrier, finance, government, and manufacturing industries.
| Specification | Details |
|---|---|
| Form Factor | Huawei OceanStor Dorado 5000 V6 All-Flash Storage |
| Maximum Number of Controllers | 32* |
| System Cache | 256 GB - 8 TB |
| Supported Interface Protocols | FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, NDMP, S3*, NFS over RDMA |
| Front-End Port Types | 8/16/32/64 Gbit/s FC/FC-NVMe and 10/25/40/100 Gbps Ethernet, 25/100Gbps NVMe over RoCE/NFS over RDMA |
| Back-End Port Types | 100G RDMA/SAS 3.0 |
| Maximum Hot-Swappable I/O Modules/Controller Enclosures | 12 |
| Maximum Front-End Ports per Controller Enclosure | 48 |
| Maximum Number of SSDs | 3200 |
| Number of LUNs | 16,384 |
| Supported SCM | 800GB/1.6TB* |
