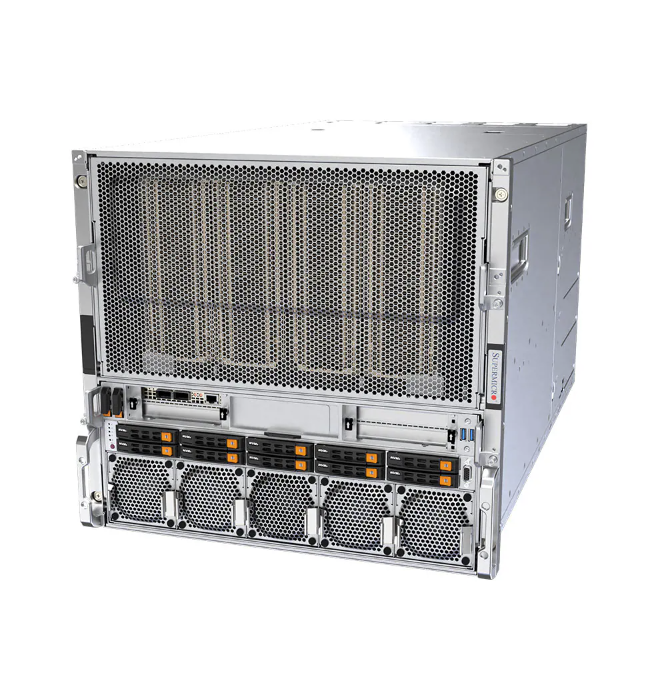

Name: Supermicro GPU SuperServer SYS-A22GA-NBRT with Dual Intel Xeon 6900 Processors and 8 NVIDIA SXM B200 GPUs in 10U Rackmount
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-A22GA-NBRT
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	10U Rackmount	Processor:	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 Series Processors With P-cores Up To 128C/256T; Up To 504MB Cache Per CPU
Max GPU Count:	8 Onboard GPUs	Supported GPU:	NVIDIA SXM: HGX B200 8-GPU (180GB)
Slot Count:	24 DIMM Slots	Gross Weight:	341 Lbs (155 Kg)
Net Weight:	293 Lbs (133 Kg)	Available Color:	Silver
Power Supply:	6x 5250W Redundant (3 + 3) Titanium Level (96%) Power Supplies
Highlight:	Dual Intel Xeon 6900 series processors Supermicro GPU Server , 8 onboard NVIDIA SXM B200 GPUs Supermicro SuperServer , 10U Rackmount Form Factor Supermicro Storage Server

Product Description

Supermicro GPU SuperServer SYS-A22GA-NBRT

Key Applications

Scientific Research, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Finance Services and Fraud Detection, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI, High Performance Computing (HPC), Autonomous Vehicle Technologies

Key Features

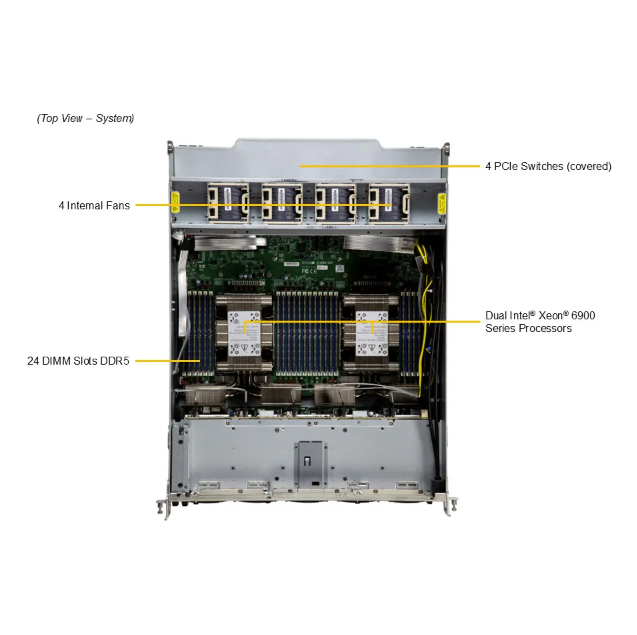

Dual Intel® Xeon® 6900 series processors with P-cores
8x NVIDIA SXM B200 GPUs, 1.4TB of GPU memory space
24x DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800MT/s (1DPC)
10x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
10x front hot-swap 2.5" NVMe U.2, 2x front hot-swap NVMe M.2
2x 10GbE RJ-45, 1x Dedicated BMC/IPMI

Technical Specifications

Form Factor	10U Rackmount Enclosure: 449 x 438.8 x 843.28mm (17.6" x 17.2" x 33.2") Package: 1280 x 710 x 730mm (50.39" x 27.95" x 28.74")
Processor	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
GPU	Max GPU Count: 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX B200 8-GPU (180GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink™ with NVSwitch™
System Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays M.2: 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; RAID support via S3808N controller)

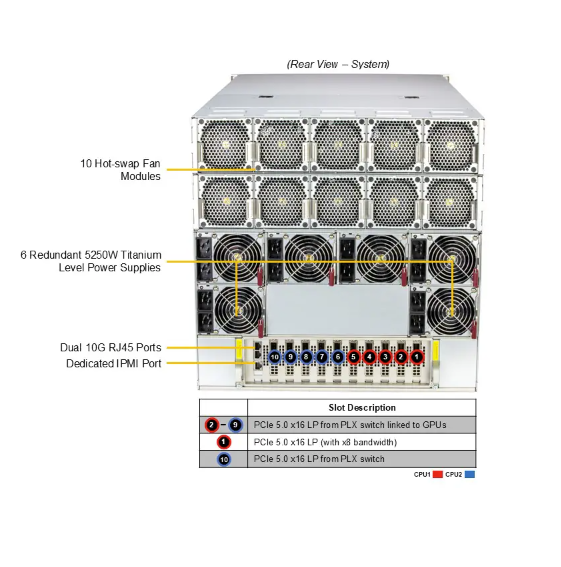

Expansion Slots	Default 10 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
System Cooling	Fans: Up to 15 counter-rotating 80x80x80mm Fan(s) Up to 4 counter-rotating 60x60x56mm Fan(s) Air Shroud: 1 Air Shroud
Power Supply	6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) Available Color: Silver

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-A22GA-NBRT

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
