Name: Supermicro Hyper SuperServer SYS-122HA-TN-LCC with Intel Xeon 6900 Series Processors 12 Hot-Swap NVMe Drive Bays and 1600W Redundant Titanium Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-122HA-TN-LCC
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	1U Rackmount	Processor:	Intel® Xeon® 6900 Series Processors With P-cores
System Memory:	Slot Count: 24 DIMM Slots	Expansion Slots:	Default 2 PCIe 5.0 X16 FH/10.5"L Slots 1 PCIe 5.0 X16 AIOM Slot (OCP 3.0 Compatible)
Drive Bays Configuration:	Default: Total 12 Bays	Power Supply:	2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug Power Supplies
Gross Weight:	41.4 Lbs (18.8 Kg)	Net Weight:	19.2 Lbs (8.7 Kg)
Available Color:	Silver
Highlight:	Intel Xeon 6900 Series Processors Supermicro Hyper SuperServer , 12 Hot-Swap NVMe Drive Bays Supermicro Storage Server , 1600W Redundant Titanium Power Supplies 1U Rackmount Server

Product Description

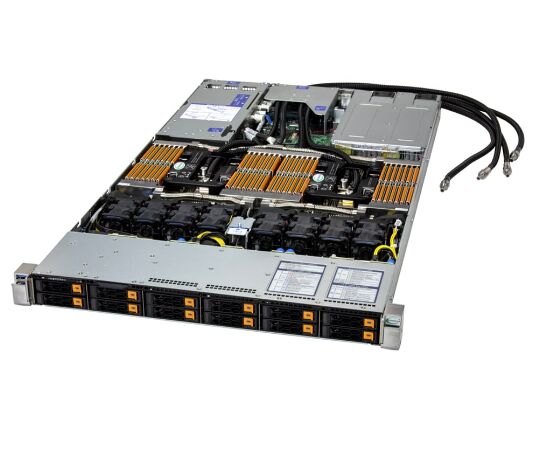

Supermicro Hyper SuperServer SYS-122HA-TN-LCC

Primary Applications

Artificial Intelligence (AI), Virtualization, High Performance Computing, Data Analytics

Key Features

Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W with D2C liquid cooling
Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM

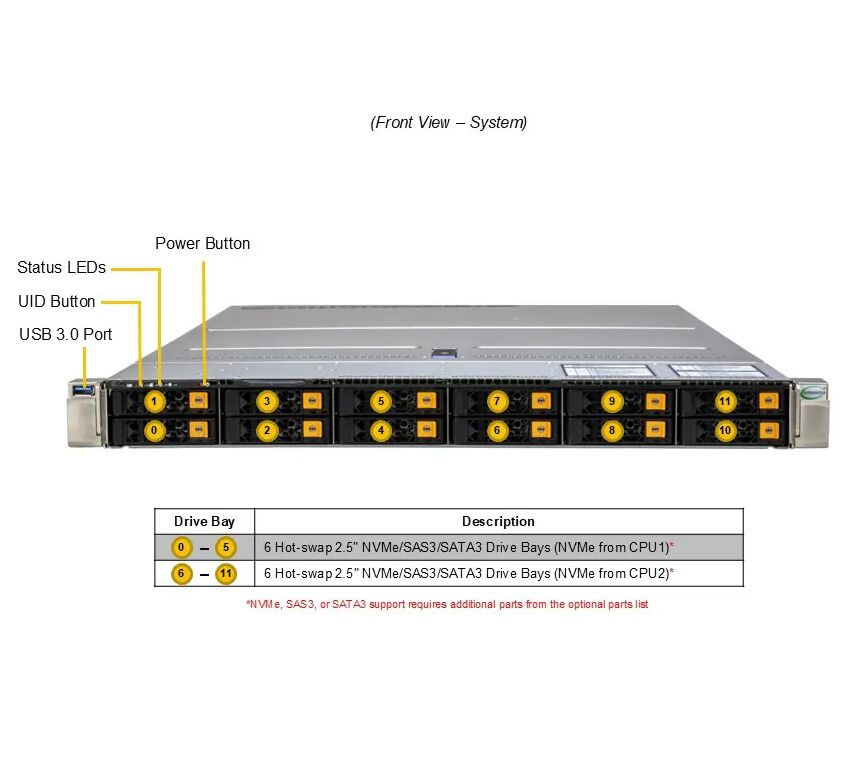

12 front hot-swap 2.5" NVMe drive bays
2 PCIe 5.0 x16 slots (full-height, 10.5" length)
1 AIOM/OCP 3.0 NIC slot for flexible networking options
Redundant titanium level power supplies with options from 1600W to 2600W
1U Rackmount chassis with 30.66" (778.7mm) depth

Technical Specifications

Form Factor	1U Rackmount Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66") Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31")
Processor	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
System Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
Drive Bays Configuration	Default: Total 12 bays 12 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

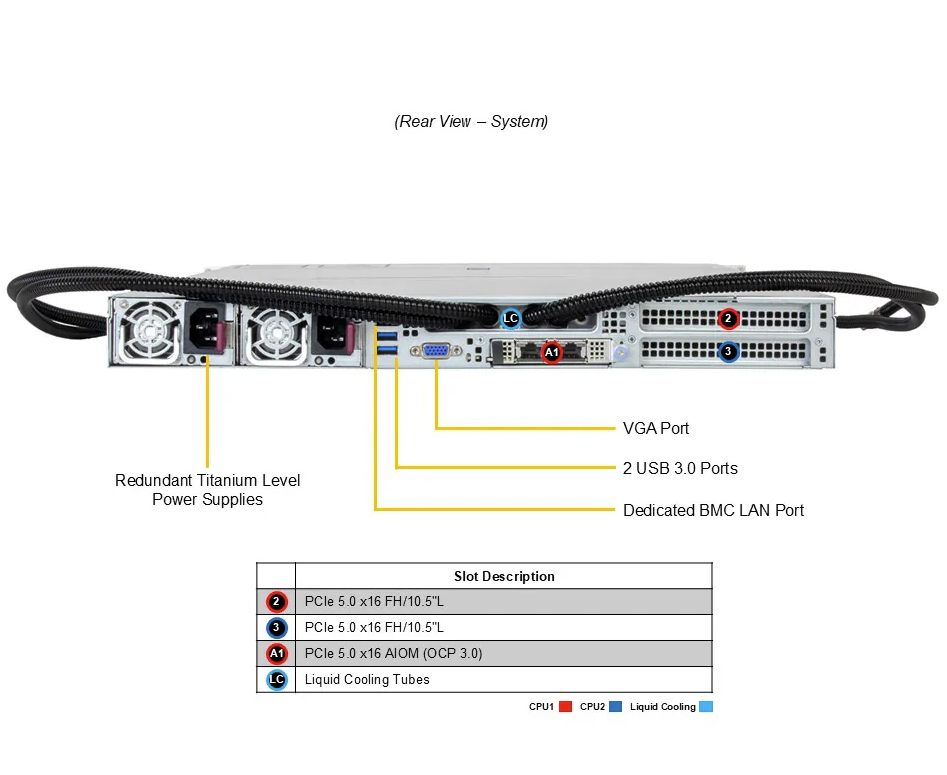

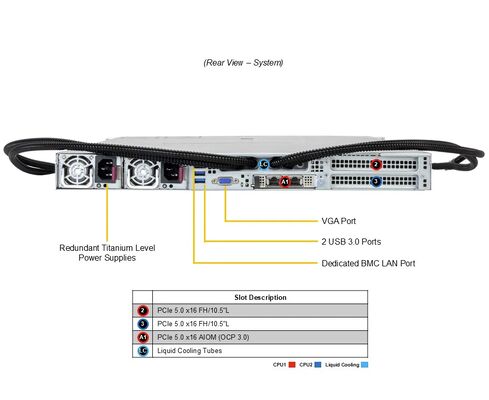

Expansion Slots	Default 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
On-Board Devices	NVMe: NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) Chipset: System on Chip Network Connectivity: Via AIOM
Power Supply	2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimensions and Weight	Weight: Gross Weight: 41.4 lbs (18.8 kg) Net Weight: 19.2 lbs (8.7 kg) Available Color: Silver

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-122HA-TN-LCC

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
