Name: Supermicro GPU SuperServer SYS-822GS-NBRT with 32 DIMM Slots 8 PCIe 5.0 x16 LP Slots and 6x 6600W Redundant Titanium Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-822GS-NBRT
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	8U Rackmount	Processor:	Dual Socket E2 (LGA-4710)
GPU:	Max GPU Count: 8 Onboard GPUs	System Memory:	Slot Count: 32 DIMM Slots
Expansion Slots:	Default 8 PCIe 5.0 X16 LP Slots 2 PCIe 5.0 X16 FHHL Slots	Drive Bays Configuration:	Default: Total 8 Bays
Power Supply:	6x 6600W Redundant (3 + 3) Titanium Level (96%) Power Supplies	Gross Weight:	341 Lbs (155 Kg)
Net Weight:	293 Lbs (133 Kg)	Available Color:	Silver
Highlight:	32 DIMM Slots Supermicro GPU SuperServer , 8 PCIe 5.0 x16 LP Slots Supermicro Storage Server , 6x 6600W Redundant Titanium Power Supplies 8U Rackmount Server

Product Description

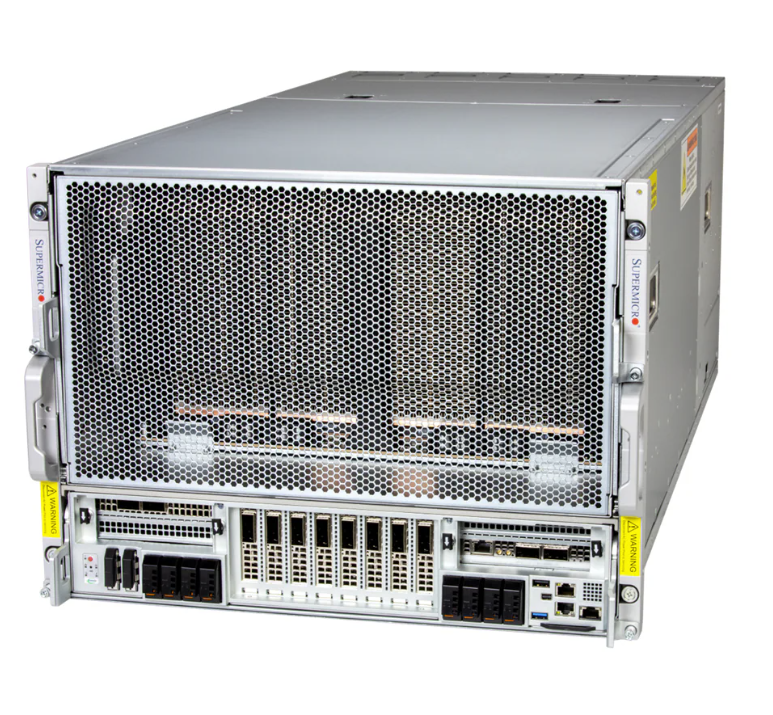

Supermicro GPU SuperServer SYS-822GS-NBRT

Dual Intel® Xeon® 6700/6500 series processors with P-cores, up to 350W TDP

DP Intel 8U System with NVIDIA HGX B200 8-GPU supporting 32 DIMMs

Key Applications

Scientific Research
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Finance Services and Fraud Detection
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI
High Performance Computing (HPC)
Autonomous Vehicle Technologies

Key Features

Dual Intel® Xeon® 6700/6500 series processors with P-cores, up to 350W TDP
HGX B200 8-GPU SXM6 with NVSwitch, 1000W TDP per GPU, air cooled

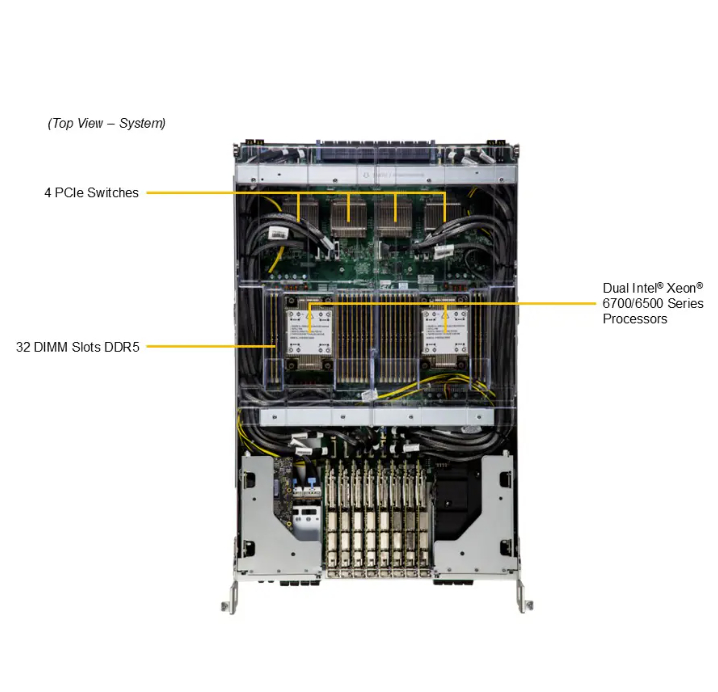

32 DIMM slots supporting up to 8TB of memory
8 Hot-swap E1.S NVMe storage drives, 2 M.2 NVMe
Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL
1 USB 3.0 port, 1 USB 2.0 port, 1 Mini-DP port
1 IPMI GbE LAN port, 2 10G NIC (X710)
6 redundant (3+3) 6600W Titanium level power supplies

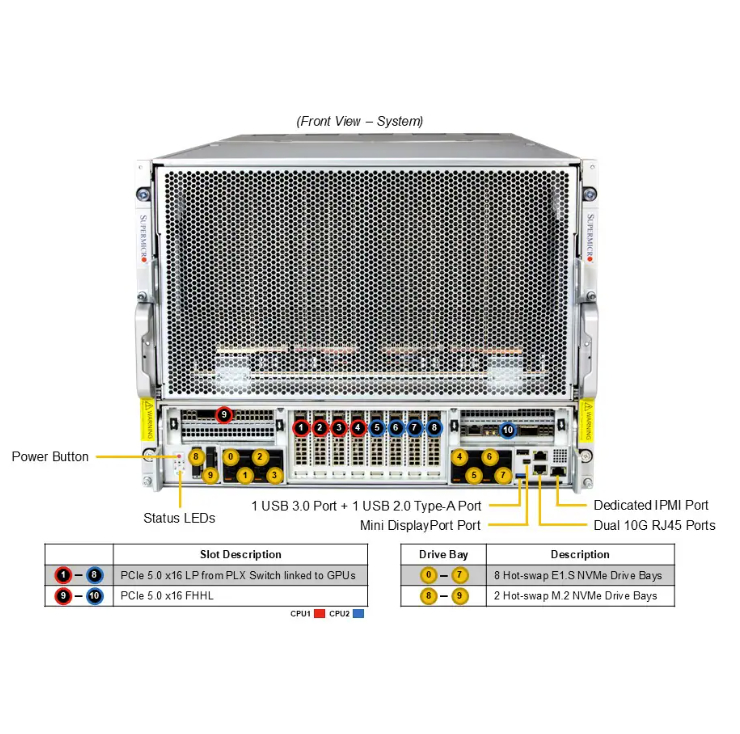

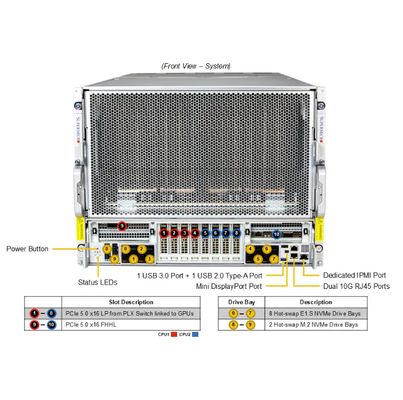

8U air-cooled Front I/O system

Form Factor	8U Rackmount Enclosure: 449 x 356 x 950mm (17.6" x 13.8" x 37.4") Package: 1255 x 700 x 750mm (51" x 27.6" x 29.5")
Processor	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores Up to 86C/172T; Up to 336MB Cache per CPU
GPU	Max GPU Count: 8 onboard GPUs CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
Expansion Slots	Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
On-Board Devices	Chipset: System on Chip Network Connectivity: 2 RJ45 10GbE with Intel® X710
Power Supply	6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) Available Color: Silver

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-822GS-NBRT

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
