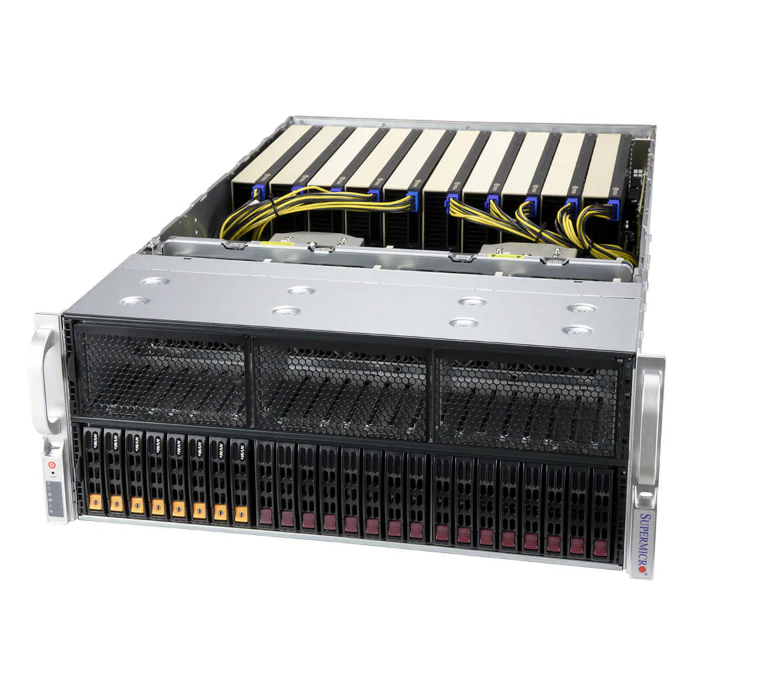

Supermicro SYS-420GP-TNR 4U GPU Server with 3rd Gen Intel® Xeon® Scalable processors

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Up to 40C/80T; Up to 60MB Cache per CPU

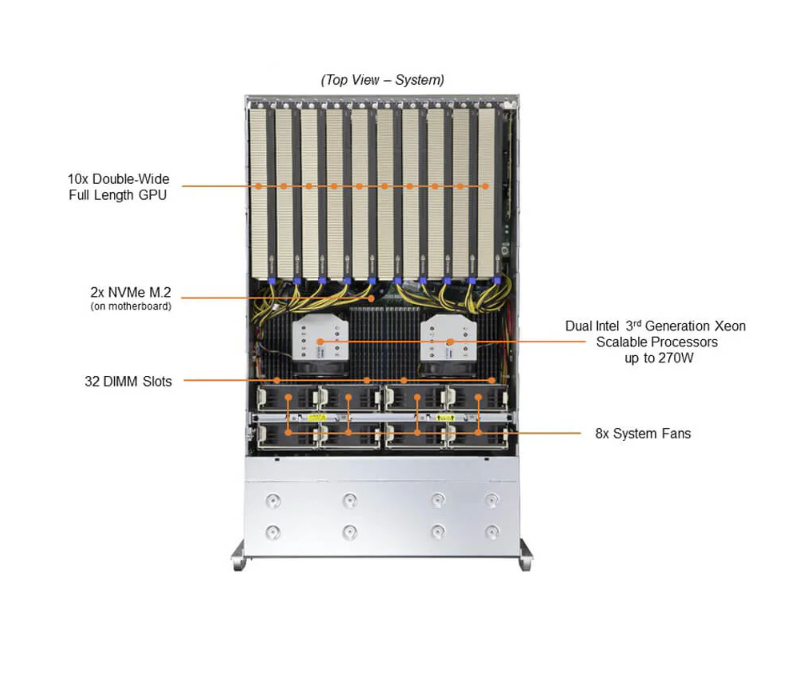

Max GPU Count: Up to 10 double-width or 10 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10
Intel PCIe: Intel Data Center GPU Flex 170
CPU-GPU Interconnect: PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional)

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

Default: Total 24 bays 8 front hot-swap 2.5" NVMe drive bays 16 front hot-swap 2.5" SAS/SATA drive bays

Option A: Total 24 bays 24 front hot-swap 2.5" NVMe*/SAS/SATA drive bays

(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe/SATA slots (M-key)

Default

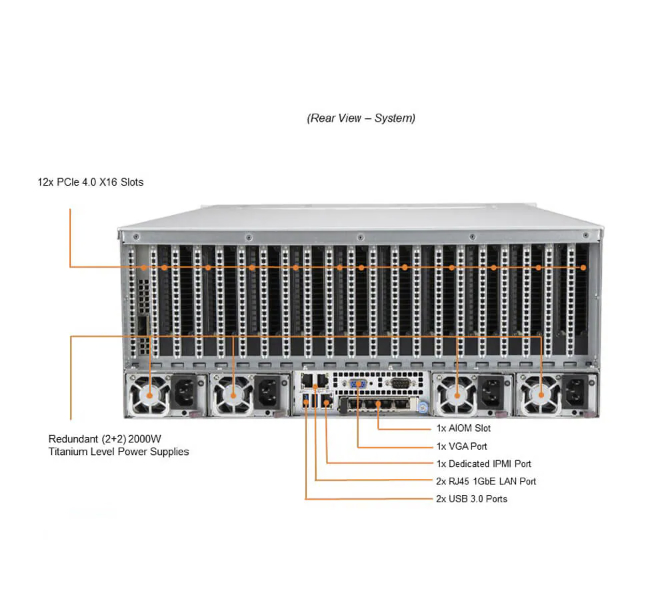

12 PCIe 4.0 x16 FHFL slots

Weight: Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
