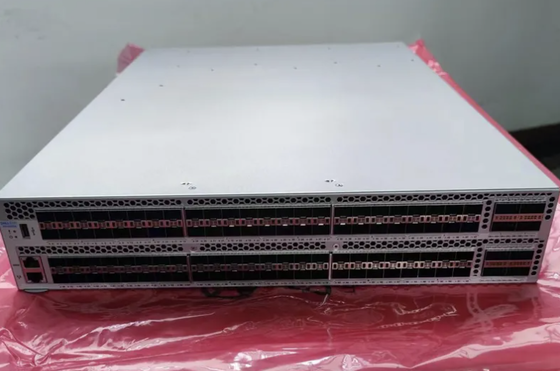

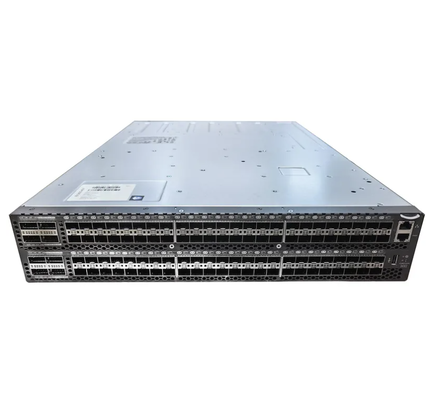

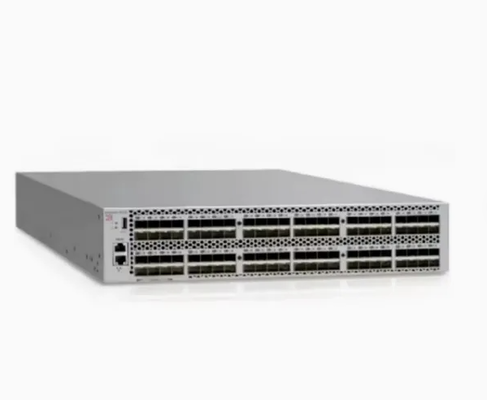

Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports

Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports
Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports

Large Image :  Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports

Product Details:
Place of Origin: China
Brand Name: Brocade
Model Number: G630
Payment & Shipping Terms:
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Contact Now

Brocade G630 Switch 4 Tb/s Bandwidth Brocade G630 Fibre Channel Switch with 48 to 128 Ports

Description
Lifecycle: Active Access Gateway: Not Available
Bandwidth: 4 Tb/s Certified Maximum: Single Fabric: 56 Domains, 7 Hops MPR Fabric: 19 Hops
Power: 942W, Dual Hot-swappable Power Supplies Size (mm): 440.0 (W) X 86.70 (H) X 609.60 (D)
Total Line Rate Ports: 48 To 128 @ 32G
Highlight:

4 Tb/s Bandwidth Brocade G630 Switch

,

48 to 128 Ports @ 32G Brocade G630 Fibre Channel Switch

,

Dual Hot-Swappable Power Supplies Brocade G630 SAN Switch

Purpose-built to meet the low-latency and high IOPS requirements of flash storage, this high-density switch is designed to tackle the growing requirements of large and dynamic environments. The Brocade® G630 is a high-density building block designed to support NVMe storage environments, demanding workloads and data center consolidation.

Build a network that scales as fast as your business

The Brocade G630 Switch delivers industry-leading 32G Fibre Channel performance across 128 ports in a 2U form factor. This switch enables organizations to increase scale with 33 percent more connectivity at double the speed with Brocade Gen 6 technology.

Deliver leading-edge, low-latency NVMe performance with trusted reliability

The Brocade G630 delivers seamless integration with the next generation of NVMe flash storage, without a disruptive rip-and-replace. With this switch, organizations can reap the benefit of running NVMe and SCSI concurrently on the same network to ramp up a gradual technology transition to NVMe performance.

Automate for operational efficiency

Power IT with simple and open automation to increase productivity. By automating daily repetitive tasks, IT organizations can improve efficiency and dramatically decrease the risk of operational mistakes.

Specification Value
Lifecycle Active
Access Gateway Not available
Bandwidth 4 Tb/s
Certified Maximum Single fabric: 56 domains, 7 hops MPR fabric: 19 hops
Fibre Channel Performance Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. Auto-sensing of 4*32, 4*16, 4*8, 4*4G speeds on the QSFP ports with Brocade FOS v8.2.0.
FICON Support Not available
Frame Based ISL Trunking 256Gb/s frame-based trunk (optional)
Power Text 942W, dual hot-swappable power supplies
Size (mm) 440.0 (W) x 86.70 (H) x 609.60 (D)
Total Line Rate Ports 48 to 128 @32G
