Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies

Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies
Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies

Large Image :  Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies

Product Details:
Place of Origin: China
Brand Name: Brocade
Certification: all
Model Number: G610
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: chat
Packaging Details: Carton
Delivery Time: 5-8work days
Payment Terms: T/T
Supply Ability: 50 pieces per week
Contact Now

Brocade G610 Switch with 768Gb/s Bandwidth, 24 to 64 @ 32G Ports, and Dual Hot-Swappable Power Supplies

Description
Bandwidth: 768Gb/s Certified Maximum: 6,000 Active Nodes; 56 Switches, 19 Hops In Brocade Fabric OS® Fabrics; Larger Fabrics Certified As Required
FICON Support: Not Available Frame Based ISL Trunking: 256Gb/s Frame-based Trunk (optional)
Power: 205W, Dual Hot-swappable Power Supplies Size (mm): 440(W) X 43.9(H) X 355.6(D)
Total Line Rate Ports: 24 To 64 @ 32G
Highlight:

768Gb/s Bandwidth Brocade G610 Switch

,

24 to 64 @ 32G Ports Brocade Fiber Switch

,

Dual Hot-Swappable Power Supplies Gen 6 Fibre Channel Switch

Brocade G610 Switch
Small environments can achieve significant benefits from digital transformation with the right infrastructure. The Brocade G610 provides a simple, always-on solution that meets the high throughput and low-latency demands of critical applications. Purpose-built for small to mid-sized businesses, this switch delivers enterprise-class availability and flash-ready performance.
Affordable Performance
This cost-effective, industry-leading Gen 6 Fibre Channel switch provides small to midsized data centers with high-performance storage access and scalable connectivity from 8 to 24 ports. The intuitive point-and-click user interface ensures fast and easy installation and management.
Flash-Ready Architecture
Optimized for flash storage environments, the Brocade G610 delivers the high throughput and low latency required to maximize flash performance today, while providing adaptability features for future flash storage advancements.
Always-On Reliability
Leveraging proven enterprise-class Gen 6 Fibre Channel reliability and Brocade Fabric Vision technology, the G610 ensures continuous business operations. Benefit from integrated VM sensors, comprehensive monitoring, and advanced diagnostics to maintain operational stability.
Technical Specifications
Specification Value
Lifecycle Active
Access Gateway Supports
Bandwidth 768 Gb/s
Certified Maximum 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Fibre Channel Performance Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds
FICON Support Not available
Frame Based ISL Trunking 256Gb/s frame-based trunk (optional)
Power 76.52W, single, fixed power supply
Size (mm) 428.8(W) x 42.9(H) x 306.6(D)
Total Line Rate Ports 8 to 24 @ 32G

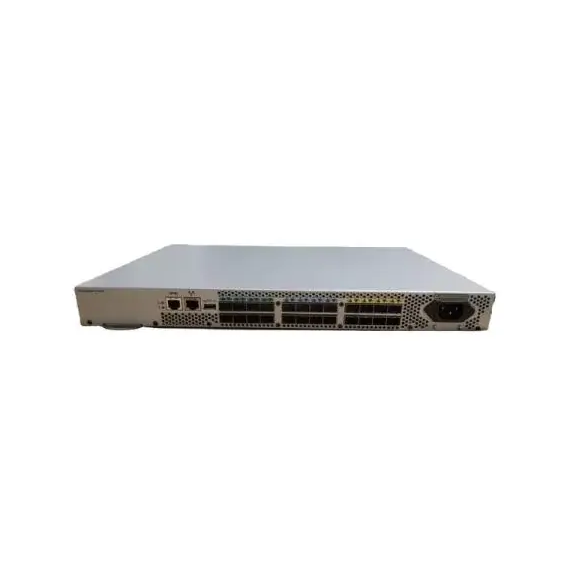

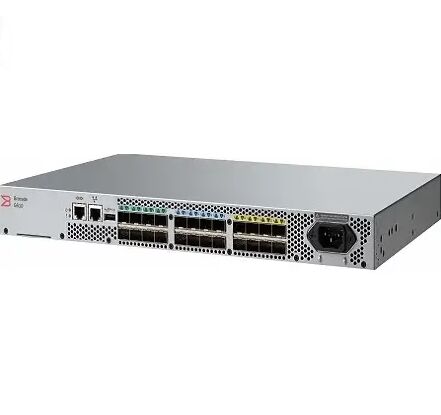

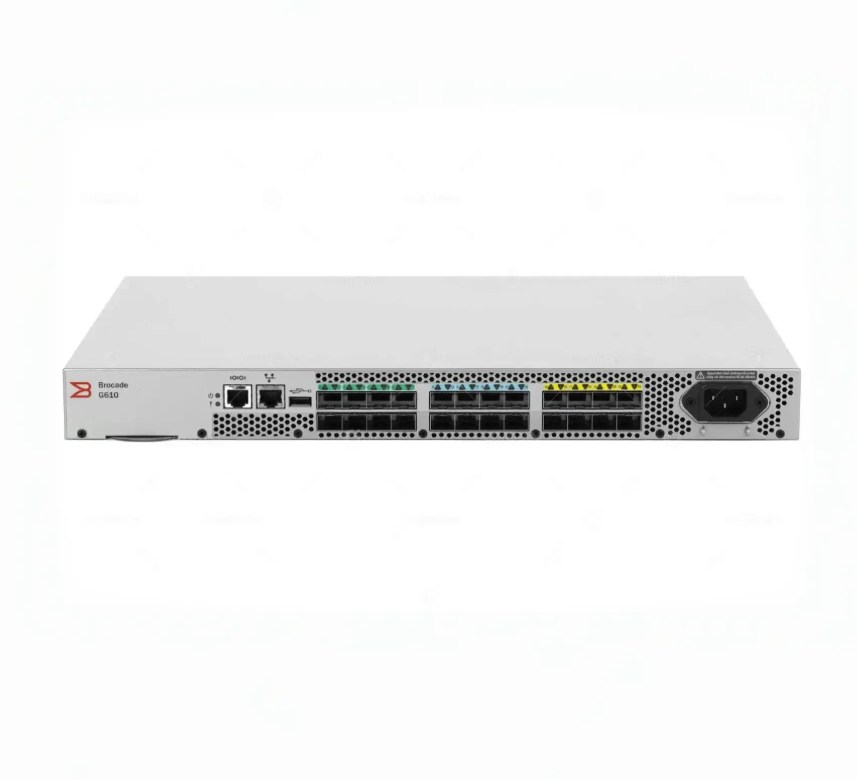

Brocade G610 Switch product image showing front panel and connectivity options
