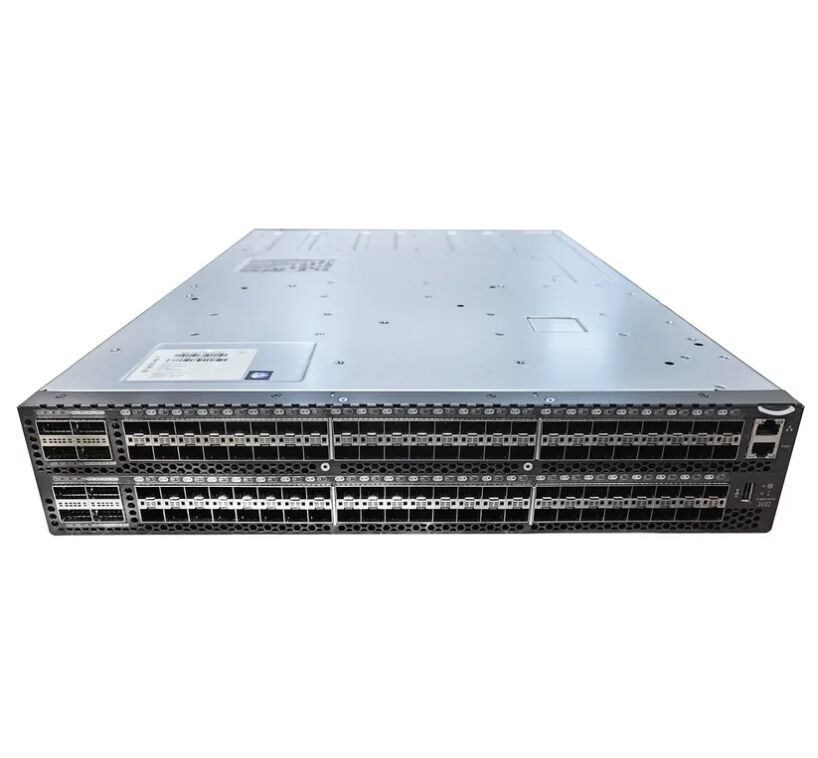

Name: Brocade G630 Fibre Channel Switch with 128 Ports, 4Tb/s Bandwidth, and Dual Hot-Swappable Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: G630
Price: 2,850.00 USD
Availability: InStock

Detail Information

Bandwidth:	4Tb/s	Certified Maximum:	Single Fabric: 56 Domains, 7 Hops MPR Fabric: 19 Hops
FICON Support:	Not Available	Frame Based ISL Trunking:	256Gb/s Frame-based Trunk (optional)
Power:	942W, Dual Hot-swappable Power Supplies	Size (mm):	440(W) X 86.70(H) X 609.60(D)
Total Line Rate Ports:	48 To 128 @ 32G
Highlight:	128 ports Fibre Channel Switch , 4Tb/s bandwidth Brocade G630 Switch , dual hot-swappable power supplies Data Center Switch

Product Description

Brocade G630 Switch

Purpose-built to meet the low-latency and high IOPS requirements of flash storage, this high-density switch is designed to tackle the growing requirements of large and dynamic environments. The Brocade® G630 is a high-density building block designed to support NVMe storage environments, demanding workloads and data center consolidation.

Build a Network That Scales as Fast as Your Business

The Brocade G630 Switch delivers industry-leading 32G Fibre Channel performance across 128 ports in a 2U form factor. This switch enables organizations to increase scale with 33 percent more connectivity at double the speed with Brocade Gen 6 technology.

Deliver Leading-Edge, Low-Latency NVMe Performance with Trusted Reliability

The Brocade G630 delivers seamless integration with the next generation of NVMe flash storage, without a disruptive rip-and-replace. With this switch, organizations can reap the benefit of running NVMe and SCSI concurrently on the same network to ramp up a gradual technology transition to NVMe performance.

Automate for Operational Efficiency

Power IT with simple and open automation to increase productivity. By automating daily repetitive tasks, IT organizations can improve efficiency and dramatically decrease the risk of operational mistakes.

Technical Specifications

Lifecycle	Active
Access Gateway	Not available
Bandwidth	4 Tb/s
Certified Maximum	Single fabric: 56 domains, 7 hops MPR fabric: 19 hops
Fibre Channel Performance	Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. Auto-sensing of 4×32, 4×16, 4×8, 4×4G speeds on the QSFP ports with Brocade FOS v8.2.0.
FICON Support	Not available
Frame Based ISL Trunking	256Gb/s frame-based trunk (optional)
Power	942W, dual hot-swappable power supplies
Size (mm)	440.0 (W) x 86.70 (H) x 609.60 (D)
Total Line Rate Ports	48 to 128 @32G

Tag:

Place of Origin:	China
Brand Name:	Brocade
Certification:	all
Model Number:	G630

Minimum Order Quantity:	1
Price:	chat
Packaging Details:	Carton
Delivery Time:	5-8work days
Payment Terms:	T/T
Supply Ability:	50 pieces per week
