Name: Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power
Brand: Beijing Core-Net Techonology Co., Limited
SKU: AS-4145GH-TNMR
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	4U Rackmount	Processor:	AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU:	AMD: Instinct™ MI300A APU	System Memory:	Max Memory: Up To 960GB ECC LPDDR5X
Expansion Slots:	4 PCIe 5.0 X16 FHHL Slots 2 PCIe 5.0 X8 FHHL Slots	Power Supply:	4x 2700W Redundant (3 + 1) Titanium Level (96%) Power Supplies
Available Color:	No Paint	Gross Weight:	158.07 Lbs (71.7 Kg)
Net Weight:	120.59 Lbs (54.7 Kg)
Highlight:	960GB ECC LPDDR5X GPU Server , 4 PCIe 5.0 x16 FHHL slots 4U Rackmount Server , 2700W Titanium Power Supermicro Storage Server

Product Description

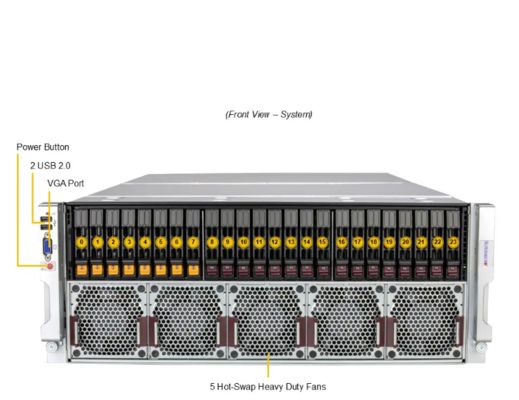

Supermicro AS-4145GH-TNMR 4U GPU Server With Quad AMD Instinct™ MI300A Accelerators

4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service is required)

Artificial Intelligence (AI) Large Language Model (LLM) Cloud Solution Provider (CSP) High Performance Computing (HPC) Research Lab

Key Features

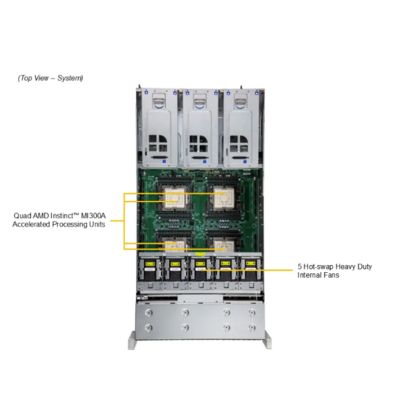

Quad AMD Instinct™ MI300A processors
Onboard 512GB HBM3 unified memory
Optional PCIe configurations up to 8 PCIe x16 slots
Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

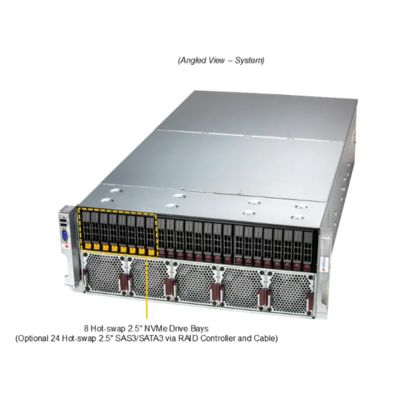

Default 8 2.5" NVMe drive bays or Optional 24 2.5" SAS3/SATA3 drive bays via storage add-on card
2 Internal NVMe/SATA M.2 slots
10 heavy duty fans with optimal fan speed control
4x 2700W redundant Titanium level power supplies

Form	Supermicro AS-4145GH-TNMR 4U GPU Server
Processors	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU	Max GPU Count: 4 onboard GPUs Supported GPU: AMD: Instinct™ MI300A APU GPU-GPU Interconnect: AMD Infinity Fabric™ Link
System Memory	Slot Count: Onboard Memory Max Memory: Up to 512GB non-ECC HBM3
Drive Bays Configuration	Default: Total 8 bays - 8 front fixed 2.5" NVMe drive bays Option A: Total 16 bays - 16 front fixed 2.5" NVMe drive bays Option B: Total 24 bays - 24 front fixed 2.5" SAS/SATA drive bays (*SAS/SATA support may require additional storage controller and/or cables) M.2: 2 M.2 NVMe slots (M-key 2280/22110)
Expansion slots	Default: 4 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x8 FHHL slots Option A: 4 PCIe 5.0 x16 FHHL slots, 6 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) Option B: 6 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option C: 14 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible) Option D: 4 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
Power Supply	4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 158.07 lbs (71.7 kg) Net Weight: 120.59 lbs (54.7 kg) Available Color: No Paint

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	AS-4145GH-TNMR

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power

960GB ECC LPDDR5X GPU Server

4 PCIe 5.0 x16 FHHL slots 4U Rackmount Server

2700W Titanium Power Supermicro Storage Server
