Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power

Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power
Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power
Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power
Informations de base
Lieu d'origine: CHINE
Nom de marque: Supermicro
Numéro de modèle: AS-4145GH-TNMR
Quantité de commande min: 1 / set
Délai de livraison: 2-3 jours de travail
Conditions de paiement: T / t
Capacité d'approvisionnement: 50 pièces par semaine
meilleur prix Contactez
Détail Infomation
Facteur de forme: Montage en rack 4U Processeur: Unités de traitement accélérées (APU) AMD InstinctTM MI300A
GPU: AMD : Instinct™ MI300A APU Mémoire du système: Mémoire maximale: jusqu'à 960 Go ECC LPDDR5X
Emplacements d'extension: 4 slots PCIe 5.0 x16 FHHL 2 slots PCIe 5.0 x8 FHHL Alimentation électrique: 4x 2700W Résiduelle (3 + 1) Titane niveau (96%) sources d'alimentation
Couleur disponible: Aucune peinture Poids brut: 158,07 livres (71,7 kg)
Poids net: 120,59 livres (54,7 kg)
Mettre en évidence:

960GB ECC LPDDR5X GPU Server

,

4 PCIe 5.0 x16 FHHL slots 4U Rackmount Server

,

2700W Titanium Power Supermicro Storage Server

Description de produit

Supermicro AS-4145GH-TNMR 4U GPU Server With Quad AMD Instinct™ MI300A Accelerators
4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service is required)
Artificial Intelligence (AI) Large Language Model (LLM) Cloud Solution Provider (CSP) High Performance Computing (HPC) Research Lab
Key Features
  • Quad AMD Instinct™ MI300A processors
  • Onboard 512GB HBM3 unified memory
  • Optional PCIe configurations up to 8 PCIe x16 slots
  • Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)

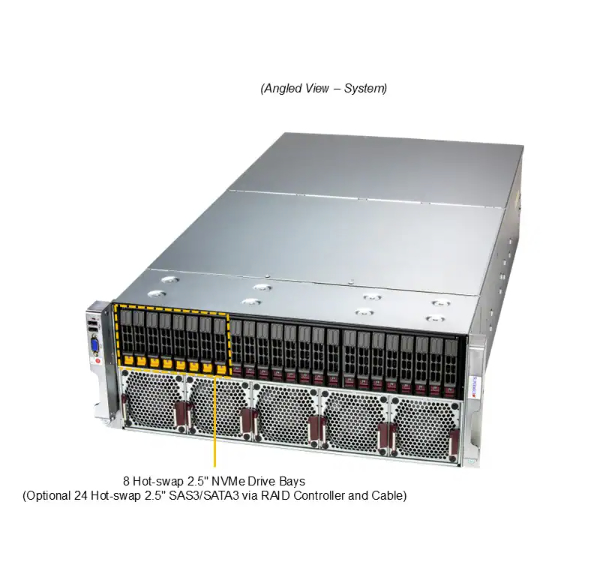

  • Default 8 2.5" NVMe drive bays or Optional 24 2.5" SAS3/SATA3 drive bays via storage add-on card
  • 2 Internal NVMe/SATA M.2 slots
  • 10 heavy duty fans with optimal fan speed control
  • 4x 2700W redundant Titanium level power supplies
Form Supermicro AS-4145GH-TNMR 4U GPU Server
Processors Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU Max GPU Count: 4 onboard GPUs
Supported GPU: AMD: Instinct™ MI300A APU
GPU-GPU Interconnect: AMD Infinity Fabric™ Link
System Memory Slot Count: Onboard Memory
Max Memory: Up to 512GB non-ECC HBM3
Drive Bays Configuration Default: Total 8 bays - 8 front fixed 2.5" NVMe drive bays
Option A: Total 16 bays - 16 front fixed 2.5" NVMe drive bays
Option B: Total 24 bays - 24 front fixed 2.5" SAS*/SATA* drive bays
(*SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 NVMe slots (M-key 2280/22110)
Expansion slots Default: 4 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x8 FHHL slots
Option A: 4 PCIe 5.0 x16 FHHL slots, 6 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
Option B: 6 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option C: 14 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
Option D: 4 PCIe 5.0 x16 FHHL slots, 2 PCIe 5.0 x8 FHHL slots, 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
Power Supply 4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimensions and Weight Weight:
Gross Weight: 158.07 lbs (71.7 kg)
Net Weight: 120.59 lbs (54.7 kg)
Available Color: No Paint
Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power 0 Supermicro AS-4145GH-TNMR 4U Rackmount GPU Server with Quad AMD Instinct™ MI300A Accelerators 960GB ECC LPDDR5X and 2700W Titanium Power 1
