Name: Supermicro ARS-221GL-SR GPU Server with Up to 4 NVIDIA GPUs 960GB ECC LPDDR5X and 3x 2000W Redundant Titanium Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: ARS-221GL-SR
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Dual Processor(s) NVIDIA Dual 72-core CPUs On A Grace™ CPU Superchip
GPU:	Max GPU Count: Up To 4 Double-width GPUs	System Memory:	Max Memory: Up To 960GB ECC LPDDR5X
Expansion Slots:	Default 3 PCIe 5.0 X16 FHFL Slots 4 PCIe 5.0 X16 FHFL Double-width Slots	Power Supply:	3x 2000W Redundant Titanium Level (96%) Power Supplies
Available Color:	Black Front & Silver Body	Weight:	Gross Weight: 86.5 Lbs (39.2 Kg) Net Weight: 67.5 Lbs (30.6 Kg)
Highlight:	Up to 4 NVIDIA GPUs Supermicro GPU Server , 960GB ECC LPDDR5X Supermicro Storage Server , 3x 2000W Redundant Titanium Power Supplies 2U Rackmount Server

Product Description

Supermicro ARS-221GL-SR 2U GPU Server

Dual NVIDIA Grace™ Superchip system with up to 4 NVIDIA GPUs and NVIDIA BlueField®-3 storage mode

Key Applications

High Performance Computing
AI/Deep Learning Training
Large Language Model (LLM) Natural Language Processing
General purpose CPU workloads including analytics, data science, simulation, HPC, and application servers

Key Features

NVIDIA Grace™ CPU Superchip up to total 144 cores
Up to 4 double-width PCIe GPU accelerator cards
Up to 960GB ECC LPDDR5X onboard memory
Up to 3 PCIe 5.0 x16 FHFL + 4 PCIe 5.0 x16 FHFL double-width slots

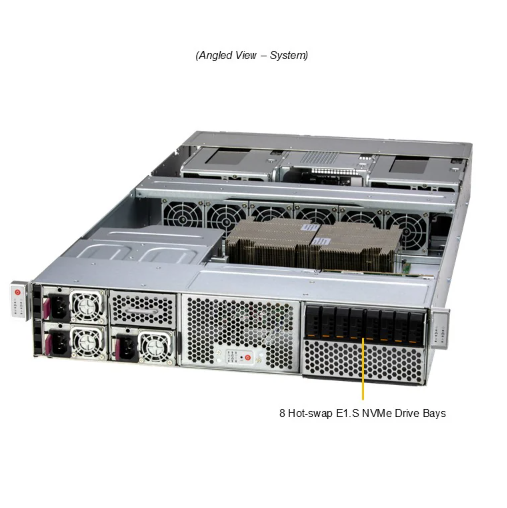

Up to 8 front hot-swap E1.S NVMe drive bays
2 NVIDIA® BlueField®-3 DPUs

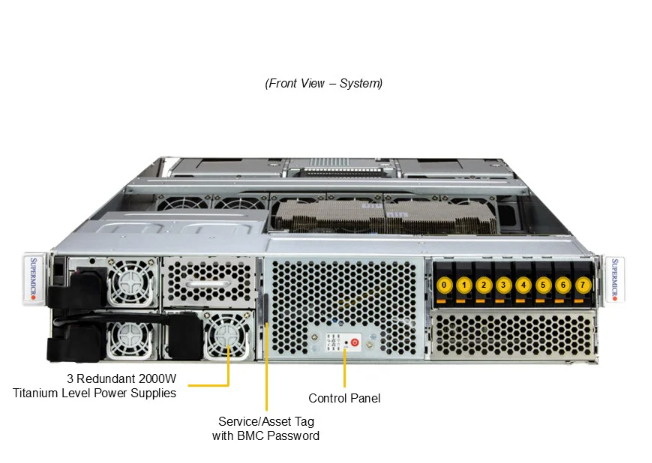

3 Redundant 2000W Titanium Level power supplies

Form Factor	Supermicro ARS-221GL-SR 2U GPU Server
Processors	Dual NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
GPU	Max GPU Count: Up to 4 double-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, L40S CPU-GPU Interconnect: PCIe 5.0 x16 GPU-GPU Interconnect: PCIe
System Memory	Slot Count: Onboard Memory Max Memory: Up to 960GB ECC LPDDR5X
Drive Bays Configuration	Total 8 bays: 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110)
Expansion Slots	3 PCIe 5.0 x16 FHFL slots 4 PCIe 5.0 x16 FHFL double-width slots
Power Supply	3x 2000W Redundant Titanium Level (96%) power supplies
Dimensions and Weight	Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) Available Color: Black front & silver body

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	ARS-221GL-SR

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
