Name: Supermicro ARS-221GL-NHIR 2U 1-node GPU Server with NVIDIA Grace Hopper Superchip and 3 PCIe 5.0 x16 Slots
Brand: Beijing Core-Net Techonology Co., Limited
SKU: ARS-221GL-NHIR
Price: 2,850.00 USD
Availability: InStock

Detail Information

Processors:	NVIDIA 72-core NVIDIA Grace CPU On GH200 Grace Hopper™ Superchip	GPU:	Max GPU Count: 2 Onboard GPUs
System Memory:	Up To 960GB ECC LPDDR5X Additional	Form Factor:	2U Rackmount
Drive Bays Configuration:	Default: Total 3 Bays 3 Front Fixed E1.S NVMe Drive Bays M.2: 2 M.2 NVMe Slots (M-key)	Expansion Slots:	Default 3 PCIe 5.0 X16 (in X16) FHFL Slots 1 PCIe 5.0 X4 (in X16) FHFL Slot
Power Supply:	4x 2000W Redundant (2 + 2) Titanium Level (96%) Power Supplies	Gross Weight:	103 Lbs (46.8 Kg)
Highlight:	Dell EMC Storage Server with SUSE Linux , Dell EMC data storage solution , Dell EMC enterprise storage server

Product Description

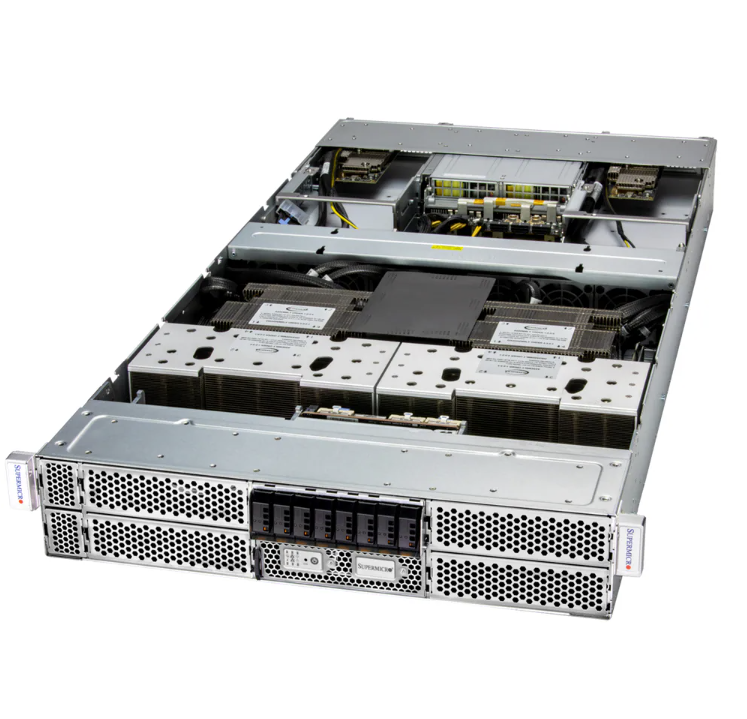

Supermicro ARS-221GL-NHIR High Density 2U 1-Node GPU System

DP NVIDIA GH200 Grace Hopper Superchip System

This high-performance 2U server features two integrated NVIDIA H100 GPUs and supports NVIDIA BlueField-3 or NVIDIA ConnectX-7, delivering exceptional computing power for demanding workloads.

Key Applications

High Performance Computing
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI

Key Features

High density 2U 1-node GPU system with two integrated NVIDIA H100 GPUs
Two 72-core Arm Neoverse V2 CPUs
NVIDIA® NVLink® high-speed interconnect between GH200 Super Chips
NVLink® Chip-2-Chip (C2C) interconnect at 900GB/s between CPU and GPU
Up to 1248GB coherent memory (960GB LPDDR5X + 288GB HBM3e)
4x PCIe 5.0 X16 supporting NVIDIA Bluefield 3 and ConnectX-7 cards
6 heavy duty fans with optional speed control

Form	Supermicro ARS-221GL-NHIR 2U GPU Server
Processors	NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
GPU	Max GPU Count: 2 onboard GPUs Supported GPU: NVIDIA H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) CPU-GPU Interconnect: NVLink®-C2C GPU-GPU Interconnect: NVIDIA® NVLink®
System Memory	Slot Count: Onboard Memory Max Memory: Up to 960GB ECC LPDDR5X Additional GPU Memory: Up to 288GB ECC HBM3e

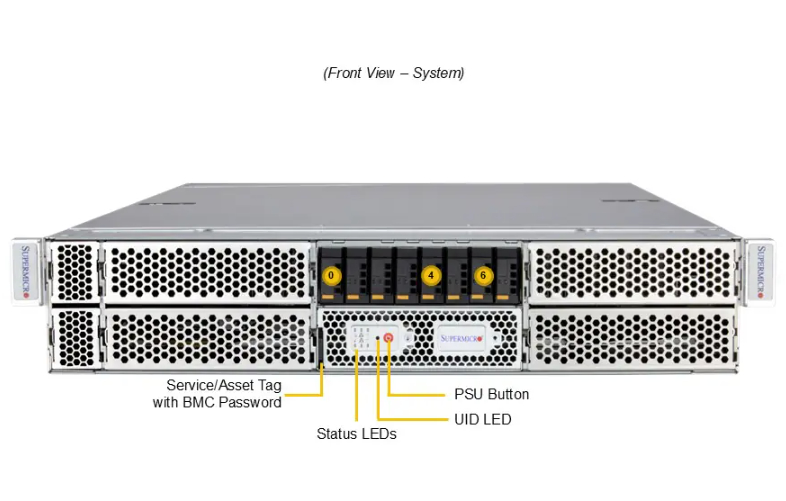

Drive Bays Configuration	Default: Total 3 bays 3 front fixed E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key)
Expansion Slots	Default 3 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x4 (in x16) FHFL slot

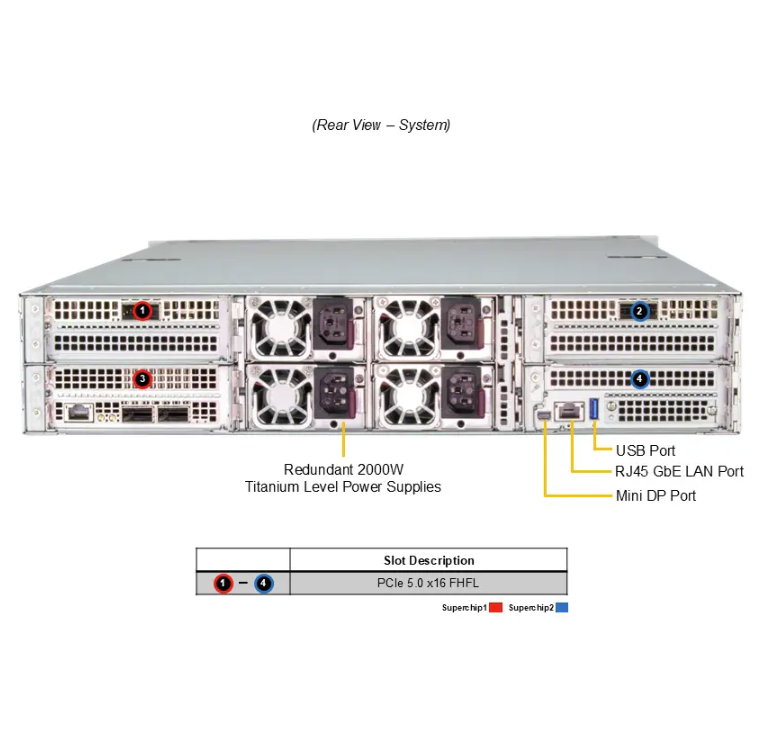

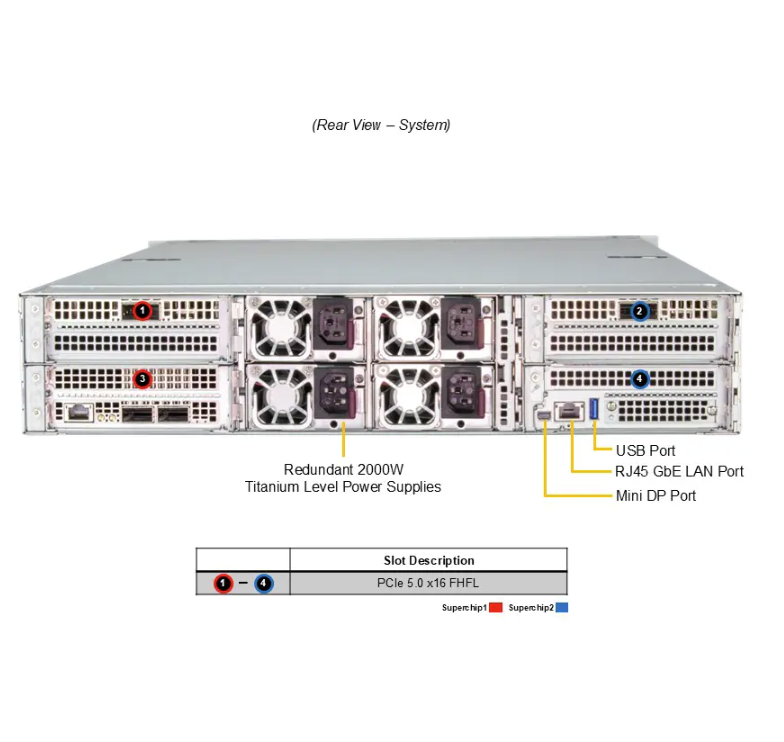

Power Supply	4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 103 lbs (46.8 kg) Net Weight: 88 lbs (40 kg) Available Color: Silver

Tag:

Place of Origin:	Beijing
Brand Name:	Supermicro
Model Number:	ARS-221GL-NHIR

Delivery Time:	1-3 days
Payment Terms:	100% TT
