| 프로세서: | NVIDIA 72 코어 NVIDIA GRACE CPU on GH200 GRACE HOPPER ™ SUPERCHIP | GPU: | 최대 GPU 수 : 2 온보드 GPU |
|---|---|---|---|
| 시스템 메모리: | 최대 960GB ECC LPDDR5X 추가 | 폼 팩터: | 2U 랙 마운트 |
| 구동 베이 구성: | 기본값: 총 베이 3개 전면 고정 E1.S NVMe 드라이브 베이 3개 M.2: M.2 NVMe 슬롯 2개(M 키) | 확장 슬롯: | 기본 PCIe 5.0 x16(x16) FHFL 슬롯 3개 PCIe 5.0 x4(x16) FHFL 슬롯 1개 |
| 전원 공급 장치: | 4X 2000W 중복 (2 + 2) 티타늄 레벨 (96%) 전원 공급 장치 | 총 체중: | 46.8kg(103파운드) |
| 강조하다: | Dell EMC Storage Server with SUSE Linux,Dell EMC data storage solution,Dell EMC enterprise storage server |
||

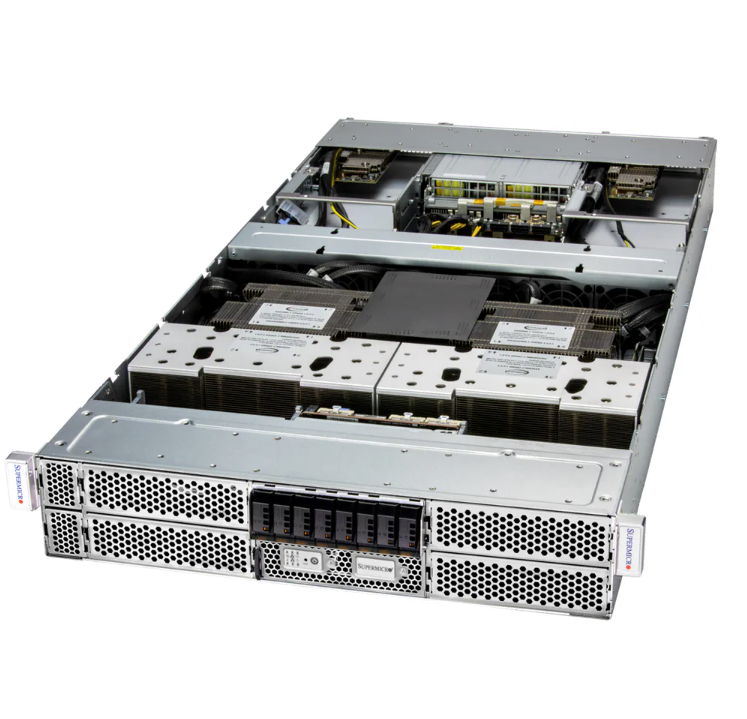

| Form | Supermicro ARS-221GL-NHIR 2U GPU Server |
|---|---|
| Processors | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| GPU |
Max GPU Count: 2 onboard GPUs Supported GPU: NVIDIA H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) CPU-GPU Interconnect: NVLink®-C2C GPU-GPU Interconnect: NVIDIA® NVLink® |
| System Memory |
Slot Count: Onboard Memory Max Memory: Up to 960GB ECC LPDDR5X Additional GPU Memory: Up to 288GB ECC HBM3e |
| Drive Bays Configuration |
Default: Total 3 bays 3 front fixed E1.S NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots |
Default 3 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x4 (in x16) FHFL slot |

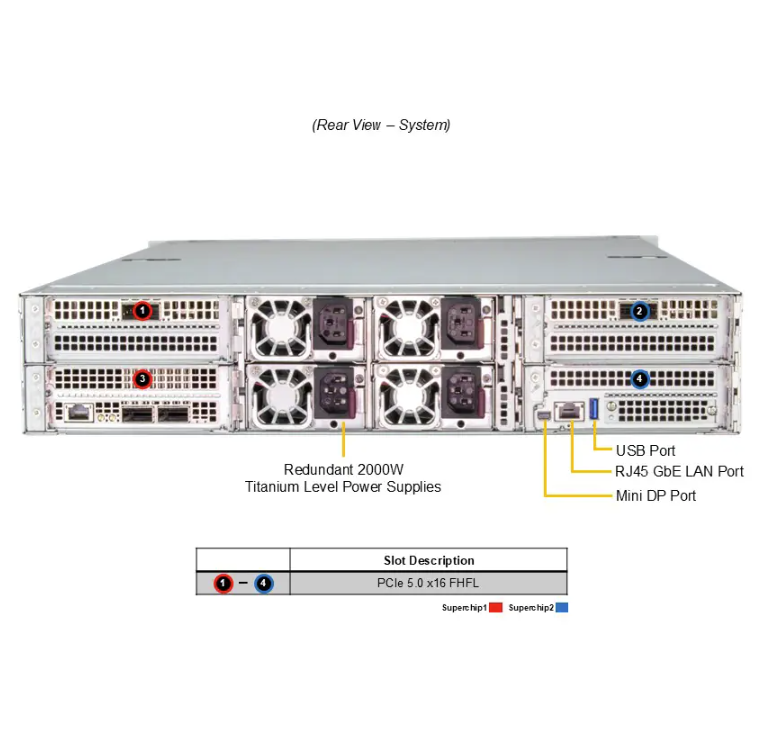

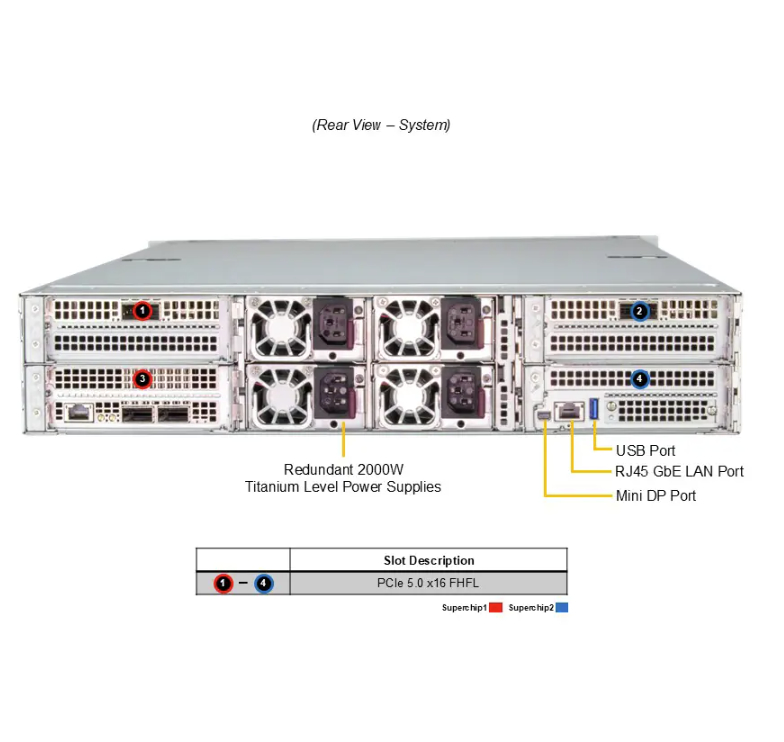

| Power Supply | 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies |
| Dimensions and Weight |
Weight: Gross Weight: 103 lbs (46.8 kg) Net Weight: 88 lbs (40 kg) Available Color: Silver |
