Name: Supermicro ARS-221GL-NR GPU Server with Dual 72-core CPUs Up to 2 Double-Width GPUs and 960GB ECC LPDDR5X Memory
Brand: Beijing Core-Net Techonology Co., Limited
SKU: ARS-221GL-NR
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Dual Processor(s) NVIDIA Dual 72-core CPUs On A Grace™ CPU Superchip
GPU:	Max GPU Count: Up To 2 Double-width GPUs	System Memory:	Max Memory: Up To 960GB ECC LPDDR5X
Drive Bays Configuration:	Default: Total 4 Bays	Expansion Slots:	Default 3 PCIe 5.0 X16 FHFL Slots 2 PCIe 5.0 X16 FHFL Double-width Slots
System Cooling:	Fans: Up To 6 Heavy Duty Fans With Optimal Fan Speed Control	Power Supply:	3x 2000W Redundant Titanium Level (96%) Power Supplies
Gross Weight:	86.5 Lbs (39.2 Kg)
Highlight:	Dell R640 server with Xeon 4214R , Dell R640 storage server 4x2TB SSD , Dell R640 OCP 3.0 network server

Product Description

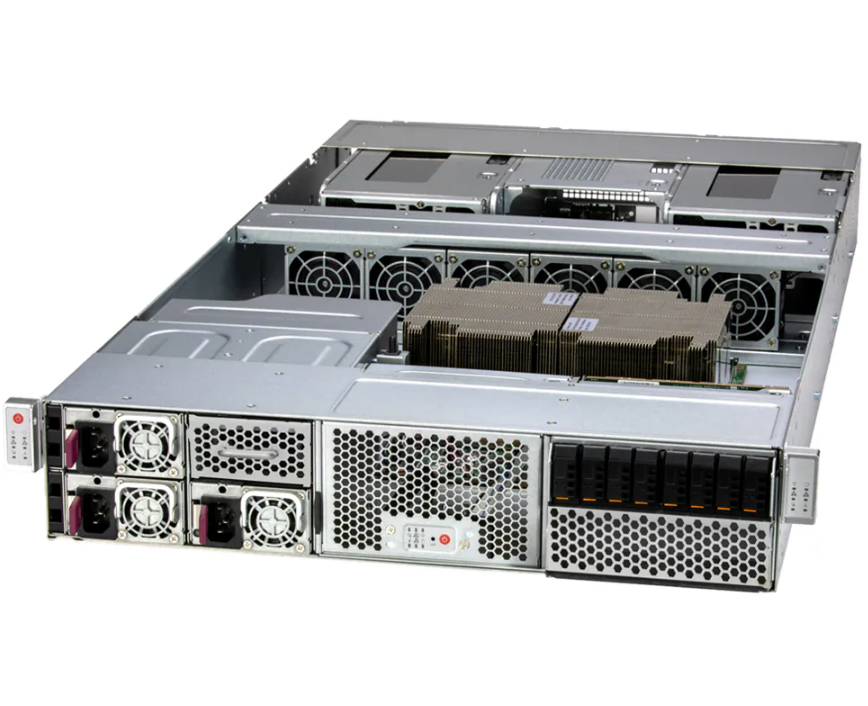

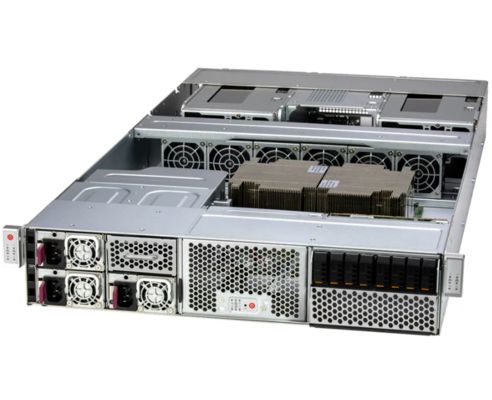

Supermirco ARS-221GL-NR With Dual processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip

High-Performance Computing Solution

Designed for demanding computational workloads, this 2U rackmount system delivers exceptional performance for AI/Deep Learning training, Large Language Model processing, and general-purpose CPU applications including analytics, data science, and simulation.

Key Features

High-density 2U GPU system supporting up to 2 NVIDIA® PCIe GPUs
PCIe-based NVIDIA H100 NVL and NVIDIA L40s GPU options
Energy-efficient NVIDIA Grace™ CPU Superchip with 144 total cores
Up to 960GB ECC LPDDR5X onboard memory for minimal latency and maximum power efficiency
5 PCIe 5.0 x16 FHFL expansion slots

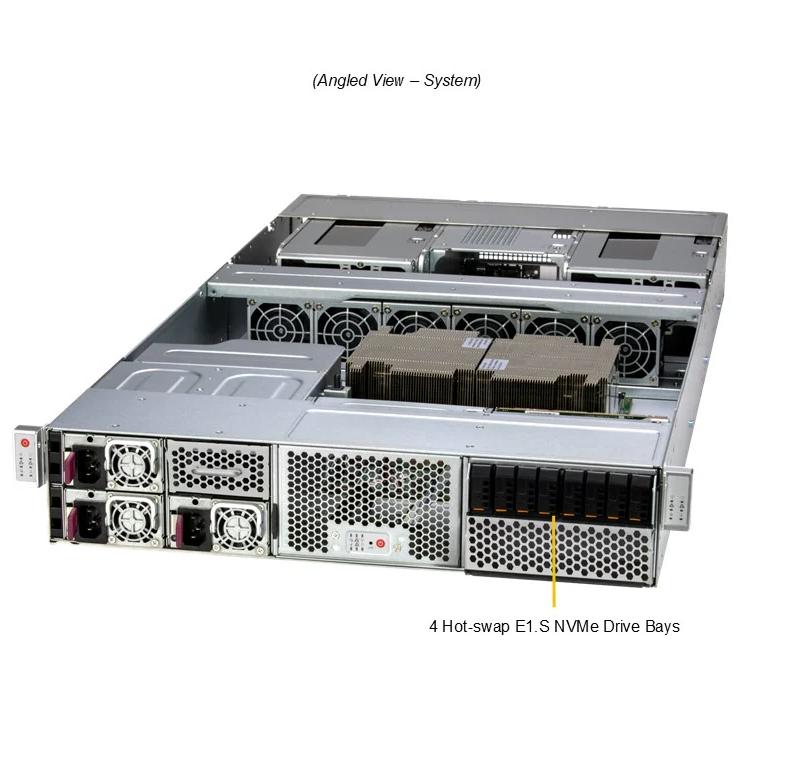

4 E1.S NVMe storage bays for high-speed data access

Technical Specifications

Form Factor	2U Rackmount Enclosure: 438.4 x 88 x 900mm (17.25" x 3.46" x 35.43") Package: 22.5" x 11" x 45.5"
Processor	Dual NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
GPU	Max GPU Count: Up to 2 double-width GPUs CPU-GPU Interconnect: PCIe 5.0 x16 GPU-GPU Interconnect: PCIe
System Memory	Slot Count: Onboard Max Memory: Up to 960GB ECC LPDDR5X
Drive Bays Configuration	Total 4 bays: 4 front hot-swap E1.S NVMe drive bays 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110)
Expansion Slots	3 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 FHFL double-width slots
System Cooling	Up to 6 heavy duty fans with optimal fan speed control

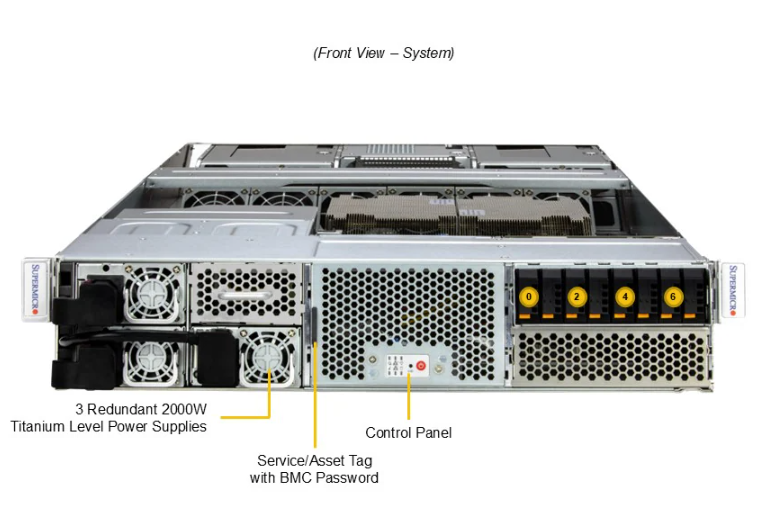

Power Supply	3x 2000W Redundant Titanium Level (96%) power supplies
Dimensions and Weight	Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) Color: Black front & silver body

Product Images

Tag:

Place of Origin:	Beijing
Brand Name:	Supermirco
Model Number:	ARS-221GL-NR

Delivery Time:	1-3 days
Payment Terms:	100% TT
