| Place of Origin: | China |
|---|---|
| Brand Name: | HUAWEI |
| Model Number: | Hua Wei OceanStor SNS5604 Fibre Channel Storage Switches |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Number Of Ports: | Up To 192 32 Gbps Ports Or A 256-port Equivalent With 16 UltraScale ICL Ports | Chassis Bandwidth: | 6.1 Tbps Per Chassis (192 Ports×32 Gbps) Data Rate + 2.048 Tbps UltraScale ICL Bandwidth (16×128 Gbps) |
|---|---|---|---|
| Slot Bandwidth: | 1536 Gbps | Power Suplly: | The Device Ships With Two Power Supplies |
| Highlight: | 1536 Gbps Fibre Channel Storage Switches,Hua Wei OceanStor SNS5604 |
||
| Form | Hua Wei OceanStor SNS5604 Fibre Channel Storage Switches |
| Number of ports | up to 192 32 Gbps ports or a 256-port equivalent with 16 UltraScale ICL ports |
| Port types | Each provides support for (E, F, D, M, SIM, AE, and EX) Fibre Channel ports using 48-port 32 Gbps Fibre Channel blades. FC32-48 port blade: F_Port, E_Port, EX_Port, M_Port, SIM, and D_Port SX6 Extension Blade: F_Port, E_Port, and EX_Port on FC, and VE_Port on GbE |
| Chassis bandwidth | 6.1 Tbps per chassis (192 ports×32 Gbps) data rate + 2.048 Tbps UltraScale ICL bandwidth (16×128 Gbps) |
| Slot bandwidth | 1,536 Gbps (line rate) |

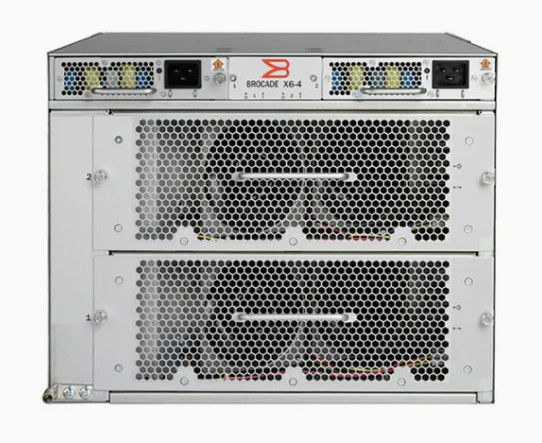

| Power Suplly |
• The device ships with two power supplies • Suggest install two to provide power efficiency and 1+1 redundancy |
