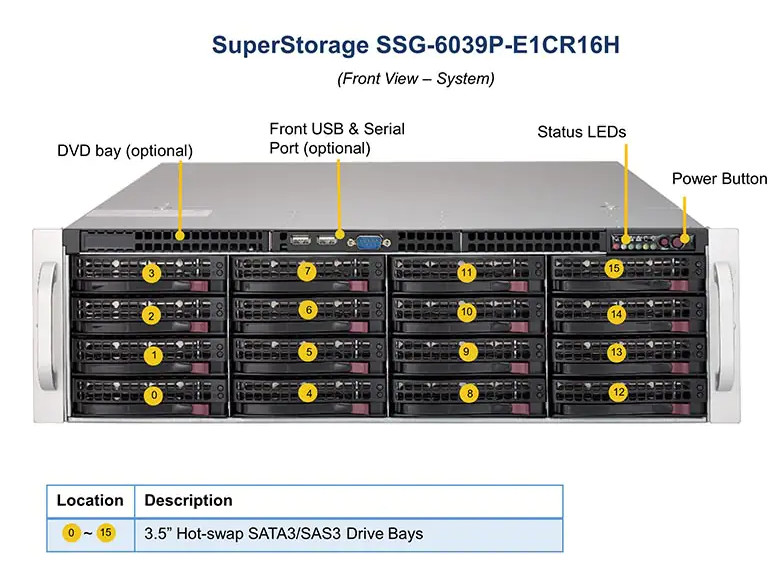

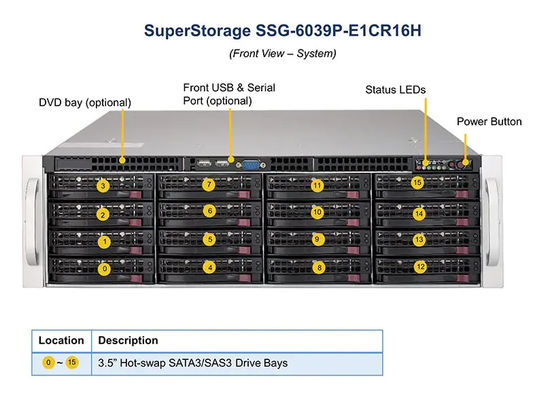

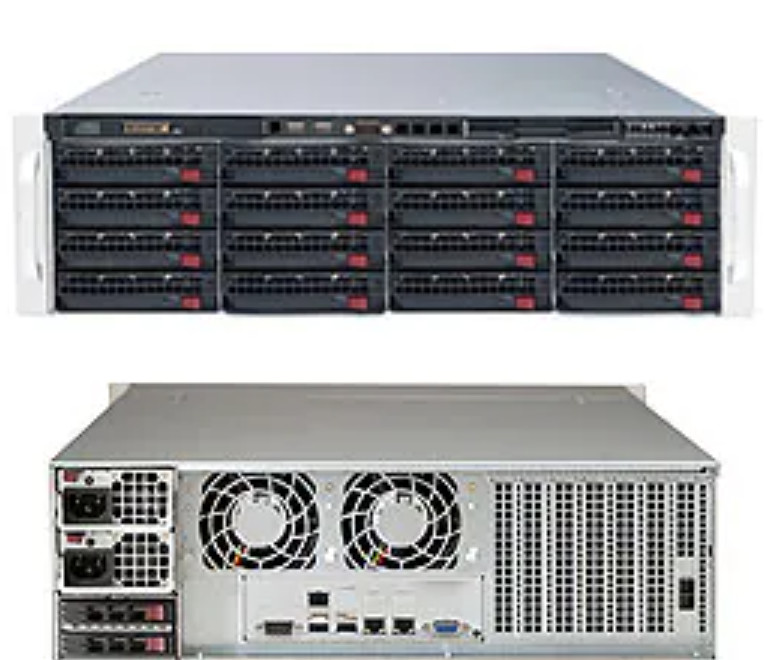

| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | 6039P-E1CR16H |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Private Mold: | Yes | Type: | Rack |
|---|---|---|---|
| Processor Type: | INTEL/AMD | ||
| Highlight: | 3U supermicro superstorage server,LSI 3108 supermicro superstorage server,6039P-E1CR16H |
||
|
Standard Parts (Bulk Package)
|
|||
|
|
Part Number
|
Qty
|
Description
|
|
I/O Cables
|
CBL-0044L •
|
2
|
57.5 cm SATA FLAT S-S PBF
|
|
I/O Shield
|
MCP-260-00042-0N •
|
1
|
STD I/O SHIELD
|
|
Standard Parts (Retail Package)
|
|||
|
|
Part Number
|
Qty
|
Description
|
|
I/O Cables
|
CBL-0044L •
|
2
|
57.5 cm SATA FLAT S-S PBF
|
|
I/O Shield
|
MCP-260-00042-0N •
|
1
|
STD I/O SHIELD
|
|
Optional Parts
|
|||
|
|
Part Number
|
Qty
|
Description
|
|
TPM security module (optional, not included)
|
AOM-TPM-9671H
|
1
|
SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
|
|
AOM-TPM-9671V
|
1
|
SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
|
|
|
AOM-TPM-9670V
|
1
|
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
|
|
|
AOM-TPM-9670H
|
1
|
SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
|
|
|
Product SKUs
|
Expansion Slots
|
||
|
MBD-X11DPH-T
|
|
PCIe
|
3 PCIe 3.0 x16,
|
|
Physical Stats
|
4 PCIe 3.0 x8
|
||
|
Form Factor
|
E-ATX
|
M.2
|
M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
|
|
Dimension
|
12" x 13" (30.48cm x 33.02cm)
|
Form Factor: 2242/2260/2280/22110
|
|
|
Processor
|
Key: M-Key
|
||
|
CPU
|
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
|
System BIOS
|
|
|
Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
|
BIOS Type
|
AMI UEFI
|
|
|
Note
|
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
|
Management
|
|
|
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
|
Software
|
SuperDoctor庐 5,聽SUM, KVM with dedicated LAN,聽SPM, Intel庐 Node Manager,聽SSM,聽IPMI2.0, Watchdog
|
|
|
BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
|
PC Health Monitoring
|
||
|
System Memory
|
Voltage
|
Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
|
|
|
Memory Capacity
|
16 DIMM slots
|
LED
|
UID/Remote UID
|
|
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz
|
Power LED
|
||
|
Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz
|
BMC/IPMI Heartbeat LED
|
||
|
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
|
Temperature
|
Monitoring for CPU and chassis environment
|
|
|
Memory Type
|
2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
|
CPU thermal trip support
|
|
|
DIMM Sizes
|
LRDIMM: 64GB
|
Thermal Control for 8 Fan Connectors
|
|
|
RDIMM: 64GB
|
FAN
|
8x 4-pin fan headers (up to 8 fans)
|
|
|
Memory Voltage
|
1.2V
|
PWM fan speed control
|
|
|
Error Detection
|
Corrects single-bit errors
|
8x fans with tachometer monitoring
|
|
|
Detects double-bit errors (using ECC memory)
|
Other Features
|
WOL, UID, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX
Power connector, ACPI power management, 8-pin 12v DC power connector, SDDC, NCSI header |
|
|
On-Board Devices
|
Operating Environment
|
||
|
Chipset
|
Intel® C622
|
|
|
|
SATA
|
Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
Operating Temperature Range
|
10°C - 35°C (50°F - 95°F)
|
|
IPMI
|
ASPEED AST2500
|
Non-Operating Temperature Range
|
-40°C - 70°C (-40°F - 158°F)
|
|
Network Controllers
|
Dual LAN with 10GBase-T with Intel® X722 + X557
|
Operating Relative Humidity Range
|
8% - 90% (non-condensing)
|
|
Input / Output
|
Non Operating Relative Humidity Range
|
|
|
|
SATA
|
10 SATA3 (6Gbps) port(s)
|
|
|
|
LAN
|
2 RJ45 10GBase-T ports
|
|
|
|
USB
|
7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
|
|
|
|
Video Output
|
1 VGA port(s)
|
|
|
|
Serial Port
|
1 COM Port(s) (1 rear)
|
|
|
|
DOM
|
2 SATA DOM (Disk on Module) power connector support
|
|
|
|
TPM
|
1 TPM Header
|
|
|
|
|
|
|
|
