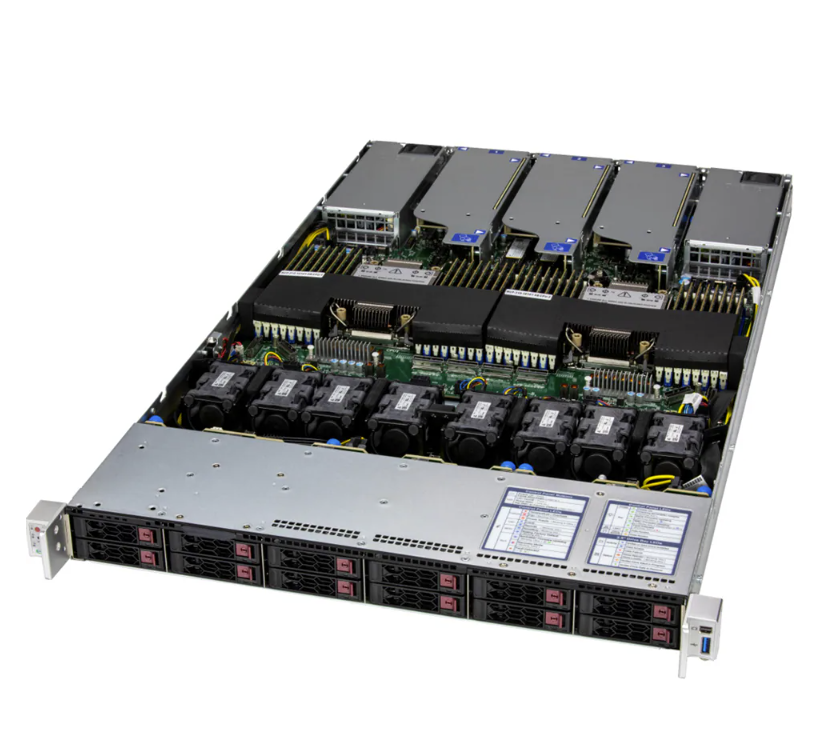

Supermicro SYS-122C-TN 1U Rackmount Server with Dual Socket E2 Intel Xeon 6700/6500 Series, 4TB DDR5 RDIMM & 1000W Redundant Titanium Power

1U Rackmount

Enclosure: 438.4 x 43.6 x 755.1mm (17.2" x 1.7" x 29.7")

Package: 580 x 185 x 1080mm (22.83" x 7.28" x 42.5")

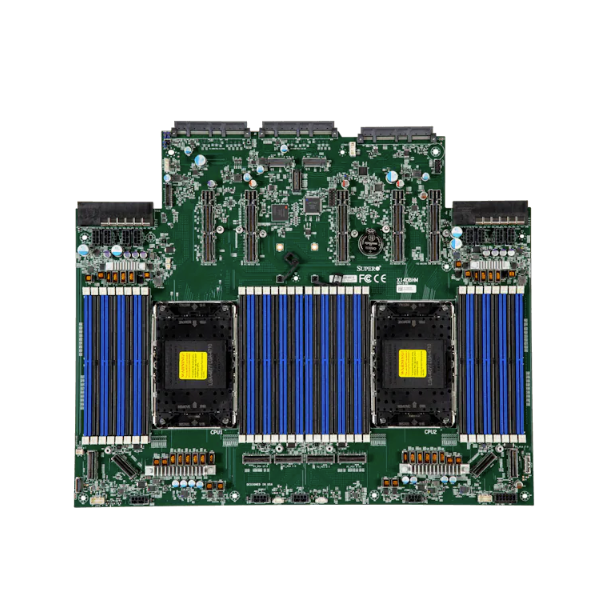

Dual Socket E2 (LGA-4710)

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

P-cores: Up to 86C/172T; Up to 336MB Cache per CPU

E-cores: Up to 144C/144T; Up to 108MB Cache per CPU

Up to 3 single-width GPUs

Slot Count: 32 DIMM slots

Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM

Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

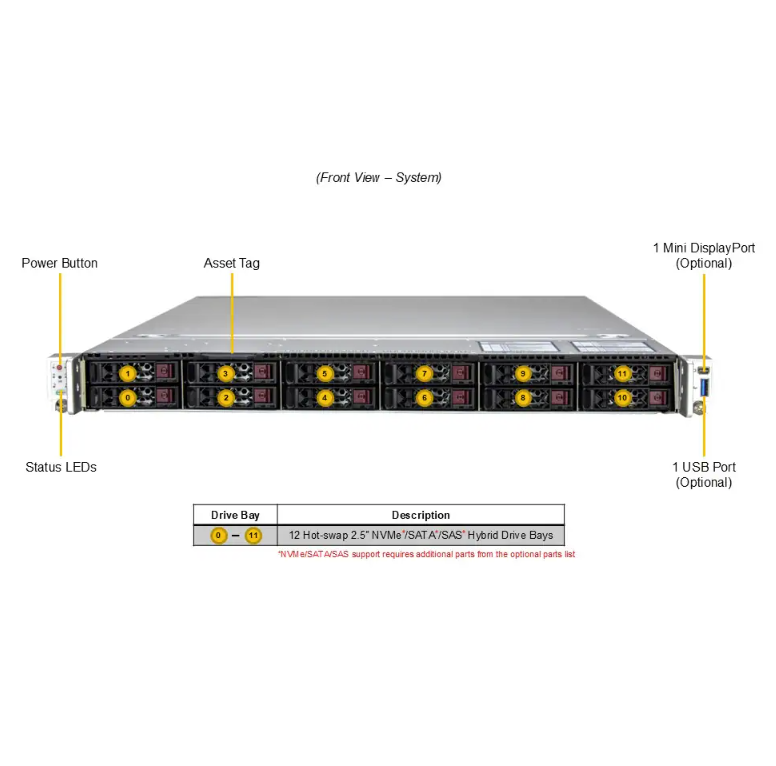

Default: Total 12 bays

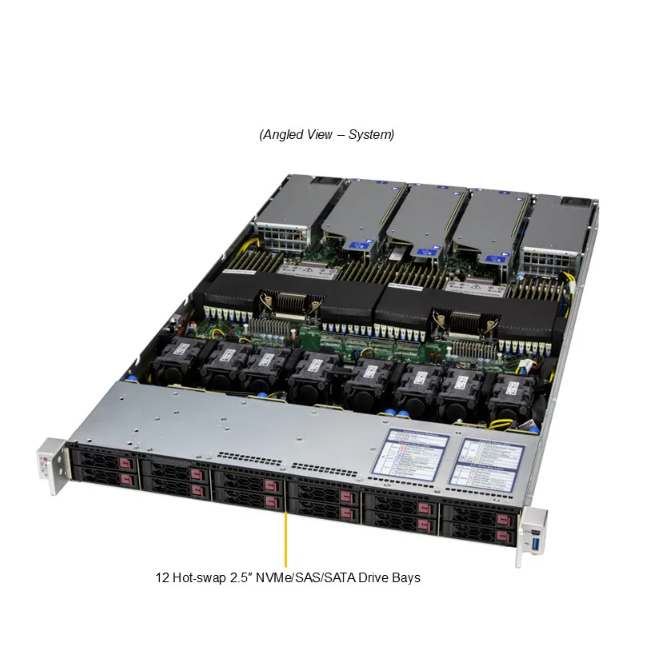

12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables)

M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)

Default

2 PCIe 5.0 x16 LP slots

1 PCIe 5.0 x8 LP slot

2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required)

Chipset: System on Chip

Network Connectivity: Via AIOM

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Weight: Gross Weight: 41 lbs (19 kg)

Net Weight: 31 lbs (17 kg)

Available Color: Silver
