Name: Supermicro SYS-122H-TN 1U Rackmount Server with Dual Socket E2 Intel Xeon 6700/6500 Series, 8TB DDR5 Memory & 1200W Redundant Power
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-122H-TN
Price: 2,850.00 USD
Availability: InStock

Supermicro SYS-122H-TN 1U Rackmount Server with Dual Socket E2 Intel Xeon 6700/6500 Series, 8TB DDR5 Memory & 1200W Redundant Power

Basic Information

Place of Origin:	China
Brand Name:	Supermirco
Model Number:	SYS-122H-TN

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Get Best Price Contact Now

Form Factor:

1U Rackmount Enclosure: 438.4 X 43.6 X 743.38mm (17.3" X 1.71" X 29.27") Package: 604.8 X 203 X 950mm (23.81" X 7.99" X 37.4")

Processor:

Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 Series Processors With P-cores Or 6700 Series Processors With E-cores P-cores: Up To 86C/172T; Up To 336MB Cache Per CPU E-cores: Up To 144C/144T; Up To 108MB Cache Per CPU

GPU:

Up To 1 Double-width Or 3 Single-width GPUs

System Memory:

Slot Count: 32 DIMM Slots Max Memory (1DPC): Up To 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up To 1TB 8000MT/s ECC DDR5 MRDIMM (P-core Only) Max Memory (2DPC): Up To 8TB 5200MT/s ECC DDR5 RDIMM

On-Board Devices:

NVMe: NVMe; RAID 0/1/5/10 Support(Intel® VROC RAID Key Required) Chipset: System On Chip Network Connectivity: Via AIOM

Power Supply:

2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug Power Supplies

Dimensions And Weight:

Weight: Gross Weight: 41 Lbs (18.6 Kg) Net Weight: 18.7 Lbs (8.5 Kg)

Available Color:

Silver

Highlight:

Supermicro 1U rackmount server with DDR5 memory

Dual Socket E2 Intel Xeon server

Supermicro storage server with 1200W power

Form Factor

1U Rackmount

Enclosure: 438.4 x 43.6 x 743.38mm (17.3" x 1.71" x 29.27")

Package: 604.8 x 203 x 950mm (23.81" x 7.99" x 37.4")

Processor

Dual Socket E2 (LGA-4710)

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

P-cores: Up to 86C/172T; Up to 336MB Cache per CPU

E-cores: Up to 144C/144T; Up to 108MB Cache per CPU

GPU

Up to 1 double-width or 3 single-width GPUs

System Memory

Slot Count: 32 DIMM slots

Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM

Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)

Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

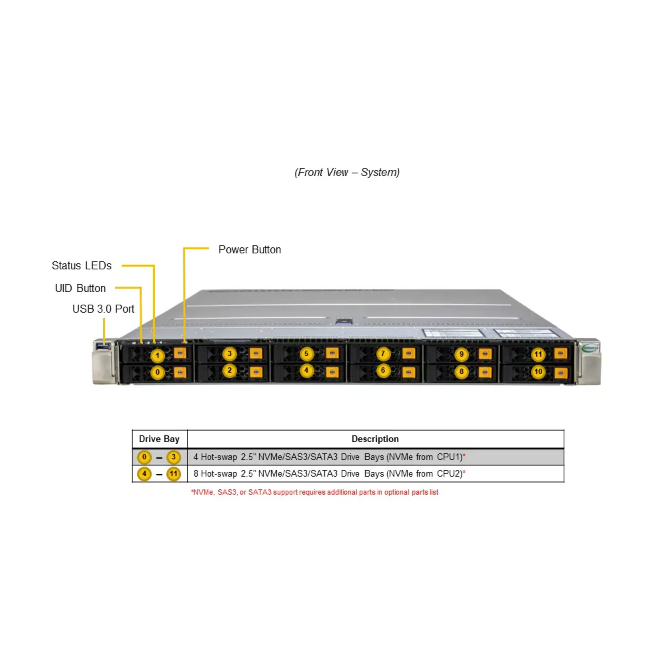

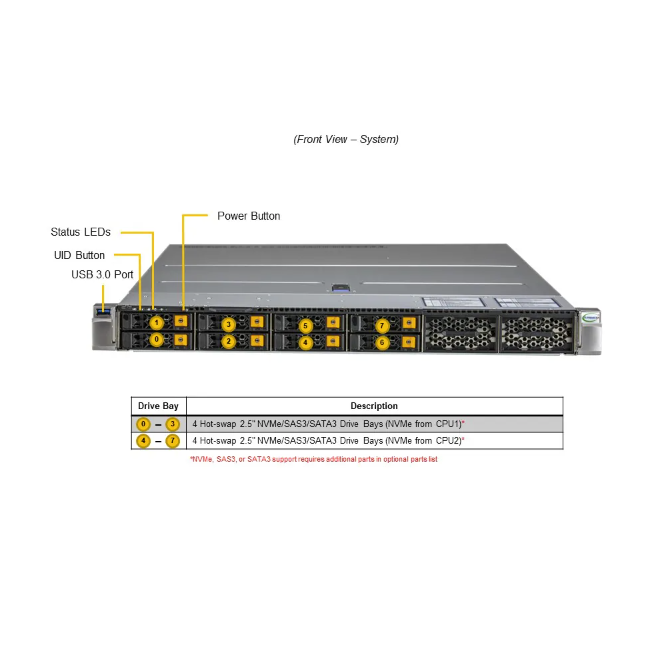

Drive Bays Configuration

Default: Total 8 bays

8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

Option A: Total 12 bays

12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

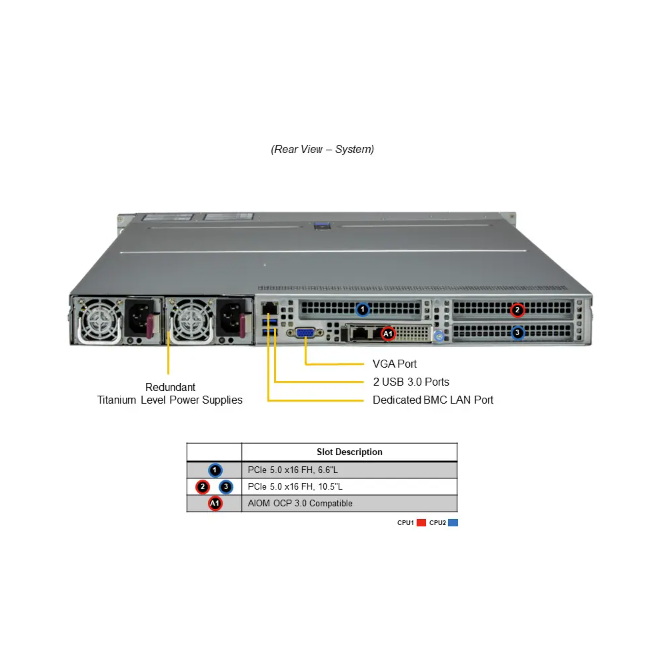

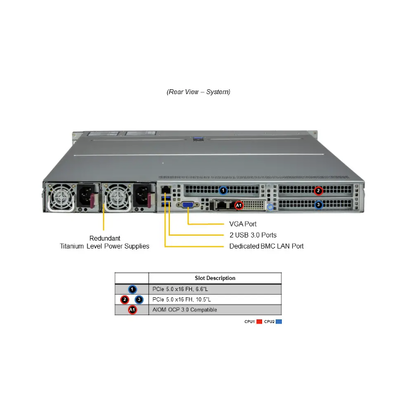

Expansion Slots

Default

1 PCIe 5.0 x16 FHHL slot

2 PCIe 5.0 x16 FH/10.5"L slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

On-Board Devices

NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset: System on Chip

Network Connectivity: Via AIOM

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimensions and Weight

Weight: Gross Weight: 41 lbs (18.6 kg)

Net Weight: 18.7 lbs (8.5 kg)

Available Color: Silver
