Supermicro GPU Server SYS-212GB-FNR 2U Rackmount with Intel Xeon 6700-series processors, 4 double-width GPUs, and 2700W Titanium power supplies

Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-212GB-FNR
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Detail Information
Form Factor: 2U Rackmount Processor: Intel® Xeon® 6700/6500 Series Processors With P-cores
Max GPU Count: Up To 4 Double-width GPUs Supported GPU: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
Slot Count: 16 DIMM Slots/8 Channels Drive Bays Configuration: Default: Total 4 Bays 4 Rear Hot-swap E1.S PCIe 5.0 X4 NVMe Drive Bays
Expansion Slots: PCI-Express (PCIe) Configuration: Default 4 PCIe 5.0 X16 FHFL Double-width Slots 3 PCIe 5.0 X16 FHFL Slots Power Supply: 2x 2700W Redundant Titanium Level (96%) Power Supplies
Weight: Gross Weight: 84 Lbs (38 Kg) Available Color: Silver
Highlight:

Intel Xeon 6700-series processors Supermicro GPU Server

,

4 double-width GPUs 2U Rackmount Server

,

2700W Titanium power supplies Supermicro Storage Server


Product Description

Supermicro GPU Server SYS-212GB-FNR
Key Applications
  • Scientific Research and Model Analysis
  • High Performance Computing (HPC)
  • Research Laboratory Applications
  • Financial Services and Analytics
  • Edge AI Computing
Key Features
  • Single Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores up to 350W with air cooling
  • Support for up to 4 double-width PCIe GPU accelerator cards
  • Up to 16 DIMMs supporting up to 1TB DDR5-6400 in 1DPC or 2TB DDR5-5200 in 2DPC or 512GB DDR5-8000 in 1DPC
  • Up to 4 PCIe 5.0 x16 FHFL double-width + 3 PCIe 5.0 x16 FHFL slots
  • Up to 4 rear hot-swap E1.S NVMe drive bays
  • Two 2700W Titanium Level power supplies
Technical Specifications
Form Factor 2U Rackmount Enclosure: 438.4 x 87 x 900mm (17.3" x 3.43" x 35.43")
Package: 700 x 280 x 1200mm (27.56" x 11.02" x 47.24")
Processor Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores
Up to 80C/160T
GPU Support Max GPU Count: Up to 4 double-width GPUs
Supported GPU: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional)
System Memory Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Drive Bays Configuration Default: Total 4 bays
4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Expansion Slots PCI-Express (PCIe) Configuration: Default 4 PCIe 5.0 x16 FHFL double-width slots
3 PCIe 5.0 x16 FHFL slots
M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
System Cooling Fans: 5x 8cm heavy duty fans with optimal fan speed control
Power Supply 2x 2700W Redundant Titanium Level (96%) power supplies
Dimensions and Weight Weight: Gross Weight: 84 lbs (38 kg)
Net Weight: 66 lbs (30 kg)
Available Color: Silver
Product Images

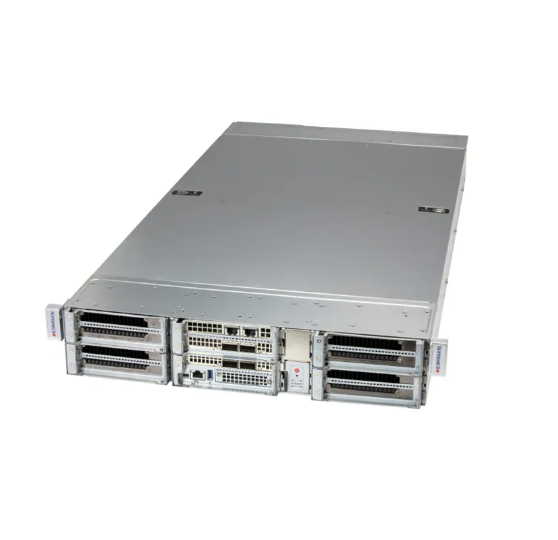

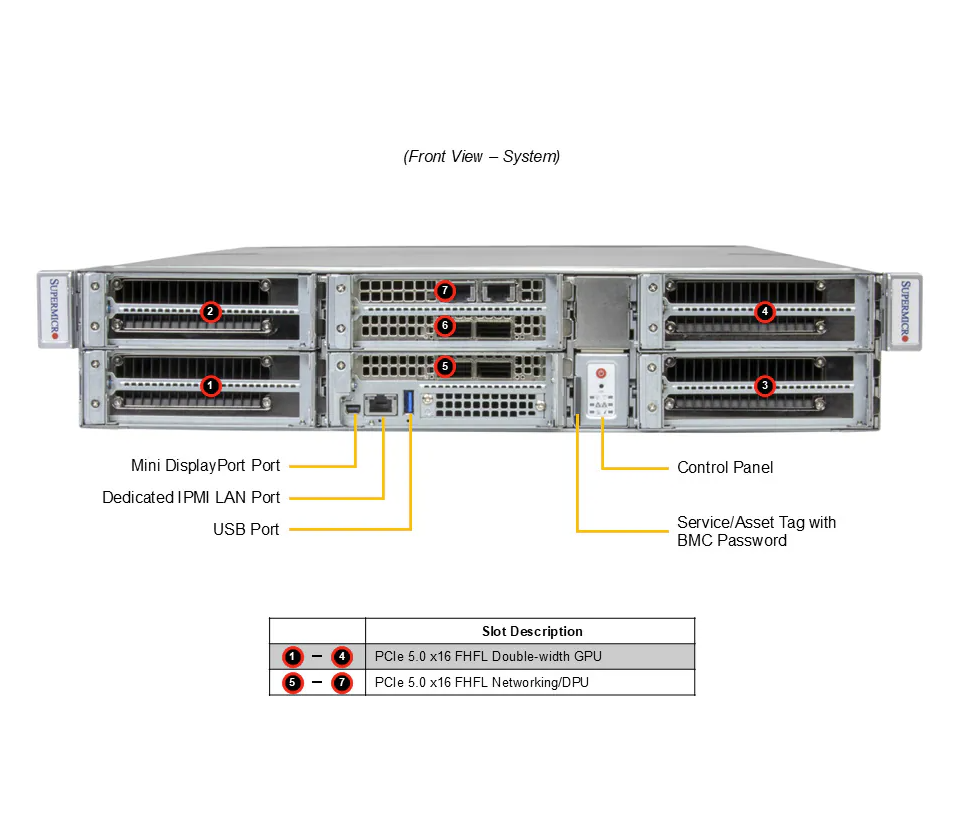

Supermicro GPU Server SYS-212GB-FNR 2U Rackmount with Intel Xeon 6700-series processors, 4 double-width GPUs, and 2700W Titanium power supplies 0 Supermicro GPU Server SYS-212GB-FNR 2U Rackmount with Intel Xeon 6700-series processors, 4 double-width GPUs, and 2700W Titanium power supplies 1 Supermicro GPU Server SYS-212GB-FNR 2U Rackmount with Intel Xeon 6700-series processors, 4 double-width GPUs, and 2700W Titanium power supplies 2
