Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling

Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling
Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-221GE-TNHT-LCC
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
Form Factor: 2U Rackmount Processors: 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors
Max GPU Count: 4 Onboard GPUs Supported GPU: NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB)
Max Memory: Up To 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM Drive Bays Configuration: Total 4 Bays
Expansion Slots: Default 4 PCIe 5.0 X16 LP Slots Power Supply: 2x 5250W Redundant Titanium Level (96%) Power Supplies
Weight: Gross Weight: 86.5 Lbs (39.2 Kg) Available Color: Silver
Highlight:

4 onboard GPUs Supermicro GPU Server

,

8TB DDR5 Memory 2U Rackmount Server

,

Direct-To-Chip Liquid Cooling Supermicro SYS-221GE-TNHT-LCC

Product Description

Supermicro GPU Server SYS-221GE-TNHT-LCC
High-Performance 2U Liquid-Cooled GPU Server
Dual processor Intel 2U liquid-cooled system supporting NVIDIA HGX™ H100 4-GPU or H200 4-GPU configurations for demanding computational workloads.
Key Applications
High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Healthcare, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Climate and Weather Modeling, Finance & Economics
Key Features
  • Highest GPU communication using NVIDIA® NVLINK™ technology
  • High density 2U system with NVIDIA® HGX™ H100 4-GPU/H200 4-GPU and 4x PCIe Gen 5 slots
  • 5th/4th Gen Intel® Xeon® Scalable processor support
  • 32 DIMM slots, up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
  • Up to 256 GB memory with speeds up to 5600 MT/s (1DPC) or 4400 MT/s (2DPC)
  • 4 PCIe Gen 5.0 x16 LP expansion slots
  • Flexible networking options
  • 2 M.2 NVMe for boot drive only
  • 4x 2.5" Hot-swap NVMe/SATA3 drive bays
  • Direct-To-Chip Liquid Cooling solution
  • 4 heavy duty fans with optimal fan speed control
  • 2x 5250W (1+1) Redundant Titanium Level Power Supplies
Technical Specifications
Form Factor Supermicro SYS-221GE-TNHT-LCC 2U GPU Server
Processors Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 56C/112T; Up to 112.5MB Cache per CPU
GPU Max GPU Count: 4 onboard GPUs
Supported GPU: NVIDIA SXM: HGX H100 4-GPU (80GB), HGX H200 4-GPU (141GB)
CPU-GPU Interconnect: PCIe 5.0 x16
GPU-GPU Interconnect: NVIDIA® NVLink®
System Memory Slot Count: 32 DIMM slots/16 Channels
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
Drive Bays Configuration Default: Total 4 bays
4 front hot-swap 2.5" NVMe/SATA drive bay
Expansion Slots PCI-Express Configuration: Default 4 PCIe 5.0 x16 LP slots
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280)
Power Supply 2x 5250W Redundant Titanium Level (96%) power supplies
Dimensions and Weight Weight: Gross Weight: 86.5 lbs (39.2 kg)
Net Weight: 67.5 lbs (30.6 kg)
Available Color: Silver Body
Product Images

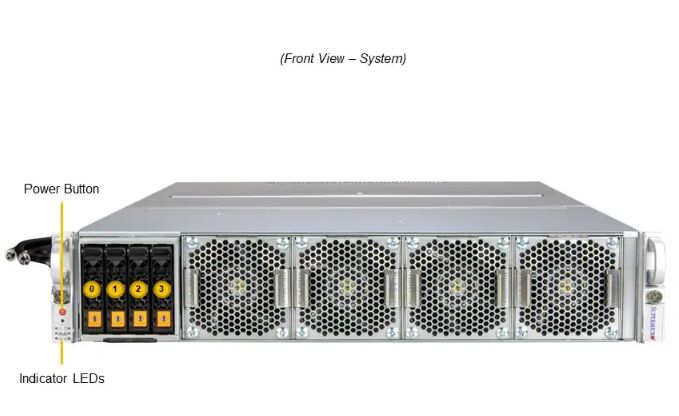

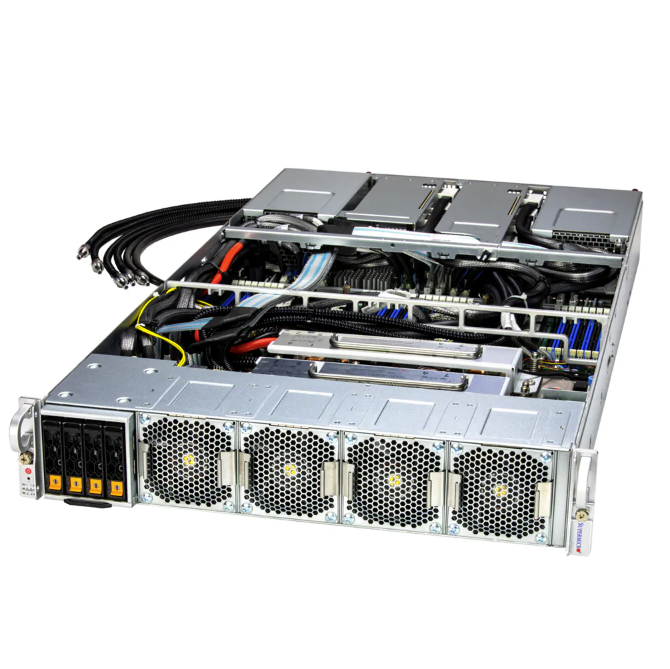

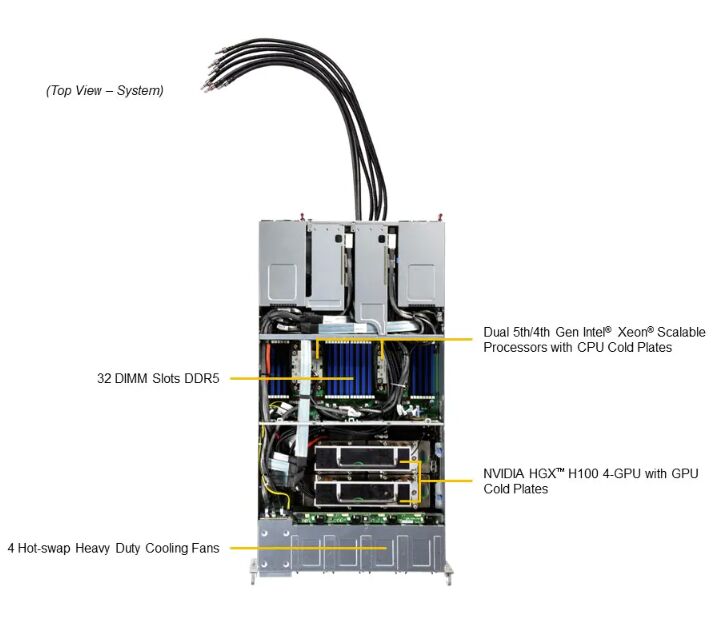

Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling 0 Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling 1 Supermicro GPU Server SYS-221GE-TNHT-LCC 2U Rackmount with 4 Onboard GPUs, 8TB DDR5 Memory, and Direct-To-Chip Liquid Cooling 2
