Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots

Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots
Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots
Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-220U-TNR
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
Form Factor: 2U Rackmount Processor: Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Up To 40C/80T; Up To 60MB Cache Per CPU
Max GPU Count: Up To 4 Double-width Or 6 Single-width GPUs Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
Slot Count: 32 DIMM Slots Gross Weight: 63 Lbs (28.6 Kg)
Net Weight: 37 Lbs (16.8 Kg) Available Color: Black Front & Silver Body
Power Supply: 1x 1600W Redundant Titanium Level (96%) Hot-plug Power Supply
Highlight:

Dual Socket P+ Supermicro Ultra SuperServer

,

32 DIMM slots Supermicro Storage Server

,

Up to 4 double-width GPUs 2U Rackmount Server

Product Description

Supermicro Ultra SuperServer SYS-220U-TNR
Key Applications
Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
Key Features
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 32 DIMM Slots supporting up to 8TB DRAM
  • Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM)
  • 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM
  • Intel® Optane™ Persistent Memory 200 series
  • Comprehensive PCIe 4.0 expansion capabilities
  • Flexible networking options
  • 24 hot-swap drive bays (22 hybrid NVMe/SATA/SAS + 2 SATA/SAS)
  • 4 heavy duty fans with optimal speed control
  • 1600W redundant Titanium level power supplies
Technical Specifications
Form Factor 2U Rackmount Enclosure: 437 x 89 x 717.2mm (17.2" x 3.5" x 28.2")
Package: 625 x 253 x 1154mm (24.6" x 9.96" x 45.43")
Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Up to 40C/80T; Up to 60MB Cache per CPU
GPU Support Max GPU Count: Up to 4 double-width or 6 single-width GPUs
Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
System Memory Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration Total 24 bays: 22 front hot-swap 2.5" NVMe/SAS*/SATA drive bays + 2 front hot-swap 2.5" SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables)
Expansion Slots 1 PCIe 4.0 x16 FH/10.5"L slot
5 PCIe 4.0 x8 FH/10.5"L slots
1 PCIe 4.0 x8 LP slot
1 PCIe 4.0 x16 LP slot
On-Board Devices SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support
Chipset: Intel® C621A
Network Connectivity: Various 10GbE options available
Power Supply 1x 1600W Redundant Titanium Level (96%) Hot-plug power supply
Dimensions and Weight Gross Weight: 63 lbs (28.6 kg)
Net Weight: 37 lbs (16.8 kg)
Available Color: Black Front & Silver Body
Product Images

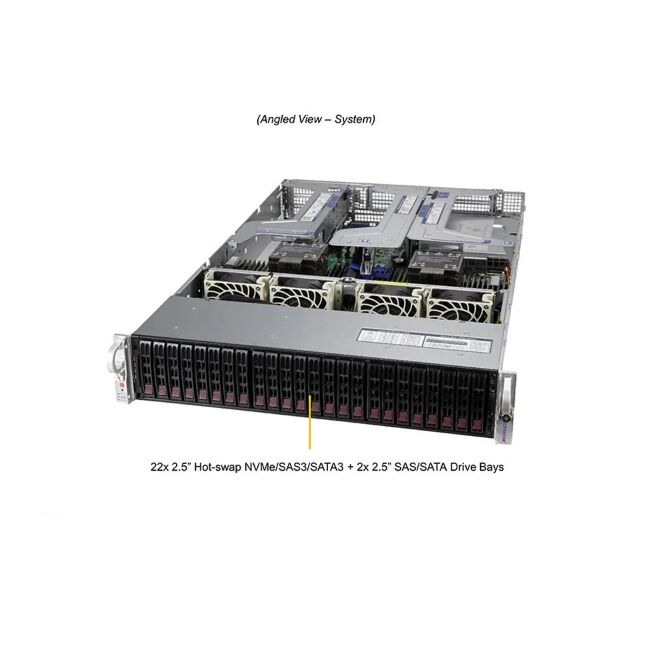

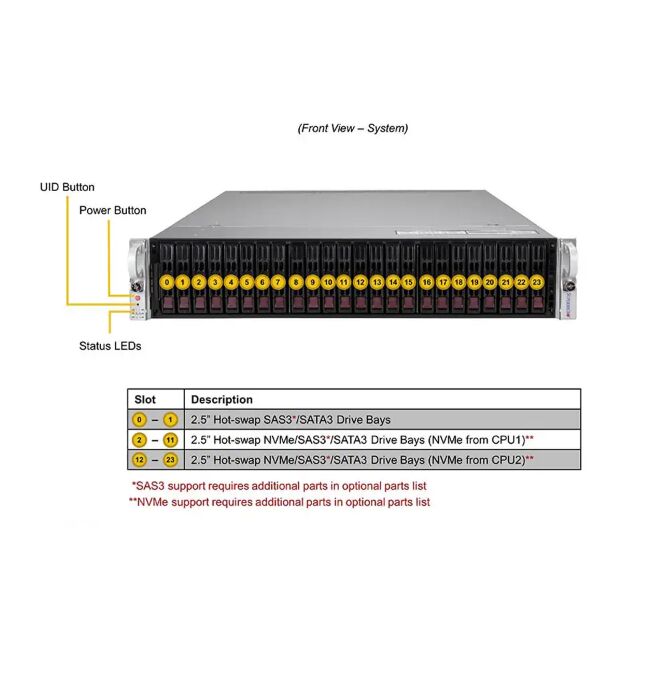

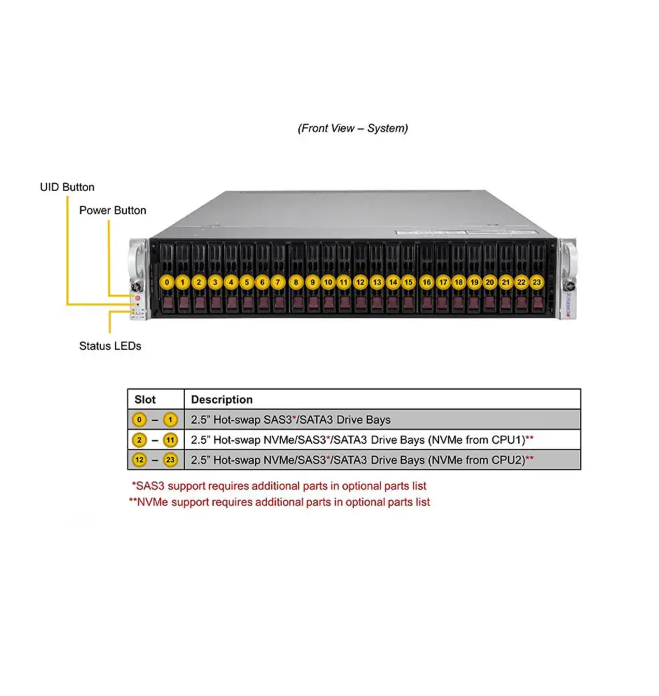

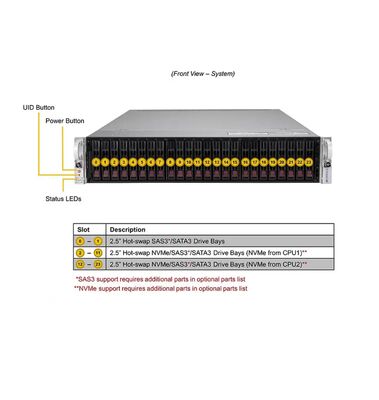

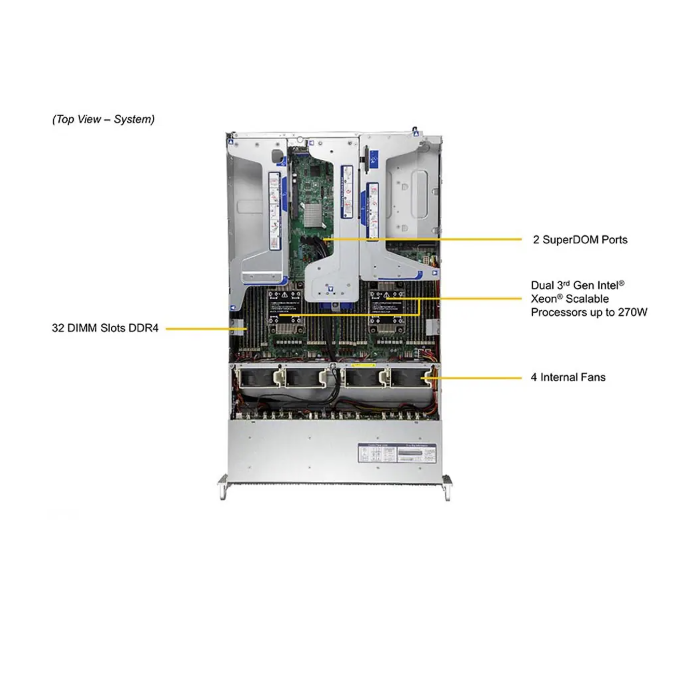

Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots 0 Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots 1 Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots 2
