Home > Products> Supermicro Storage Server> Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs

Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs

Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs
Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs
Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-220U-MTNR
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
Form Factor: 2U Rackmount Processor: Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Up To 40C/80T; Up To 60MB Cache Per CPU
Max GPU Count: Up To 4 Double-width Or 6 Single-width GPUs Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
Slot Count: 32 DIMM Slots Gross Weight: 66 Lbs (30 Kg)
Net Weight: 40 Lbs (18.2 Kg) Available Color: Black Front & Silver Body
Power Supply: 2x 1200W Redundant Titanium Level (96%) Hot-plug Power Supplies
Highlight:

Dual Socket P+ 3rd Gen Intel Xeon Scalable Supermicro Ultra SuperServer

,

Up to 4 GPUs 2U Rackmount Server

,

32 DIMM slots Supermicro Storage Server

Product Description

Supermicro Ultra SuperServer SYS-220U-MTNR
A high-performance 2U rackmount server designed for demanding enterprise applications with exceptional scalability and reliability.
Key Applications
  • Virtualization
  • High Performance Computing (HPC)
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco Infrastructure
Key Features
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 32 DIMM Slots supporting up to 8TB DRAM
  • Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM)
  • 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM
  • Intel® Optane™ Persistent Memory 200 series support
  • Comprehensive PCIe 4.0 expansion capabilities
  • Flexible networking options
  • 6x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 6 heavy duty fans with optimal speed control
  • 1600W redundant Titanium level power supplies
Technical Specifications
Form Factor 2U Rackmount Enclosure: 437 x 89 x 574mm (17.2" x 3.5" x 22.6")
Package: 625 x 253 x 1154mm (24.6" x 9.96" x 45.43")
Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Up to 40C/80T; Up to 60MB Cache per CPU
GPU Support Max GPU Count: Up to 4 double-width or 6 single-width GPUs
Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
System Memory Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration Default: Total 6 bays
6 front hot-swap 2.5" NVMe/SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables)
Expansion Slots Default 1 PCIe 4.0 x16 FH/10.5"L slot
5 PCIe 4.0 x8 FH/10.5"L slots
1 PCIe 4.0 x8 LP slot
1 PCIe 4.0 x16 LP slot
On-Board Devices SATA: SATA (6Gbps); RAID 0/1/5/10 support
NVMe: NVMe; RAID 0/1/5/10 support
Chipset: Intel® C621A
Network Connectivity: 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
2 SFP+ 10GbE with Intel® X710-TM4 (optional)
No NIC option supported
Power Supply 1x 1600W Redundant Titanium Level (96%) Hot-plug power supply
Dimensions and Weight Weight: Gross Weight: 66 lbs (30 kg)
Net Weight: 40 lbs (18.2 kg)
Available Color: Black Front & Silver Body

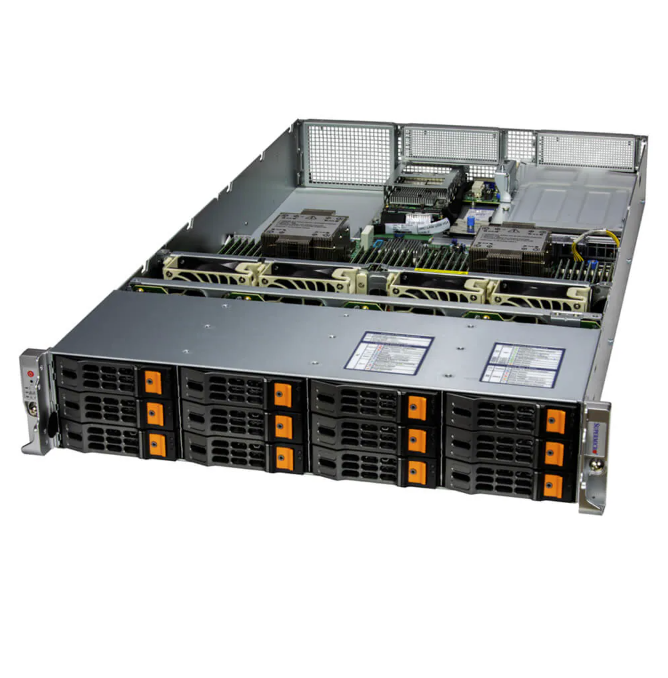

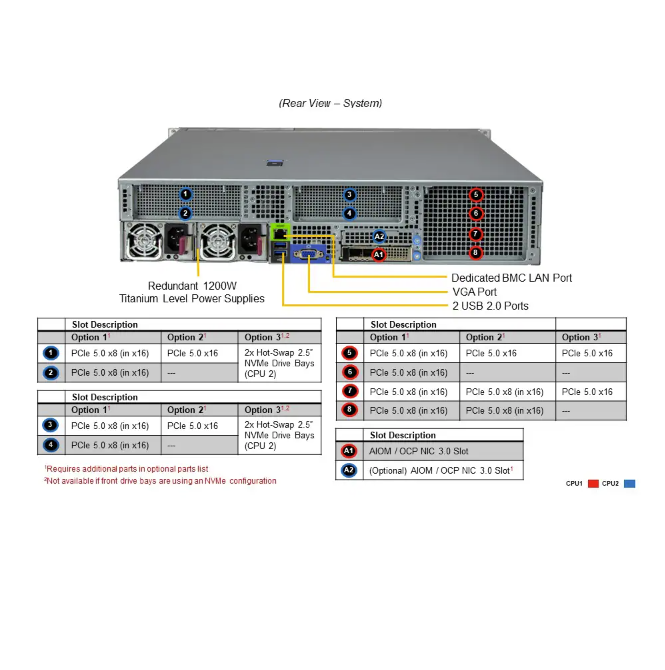

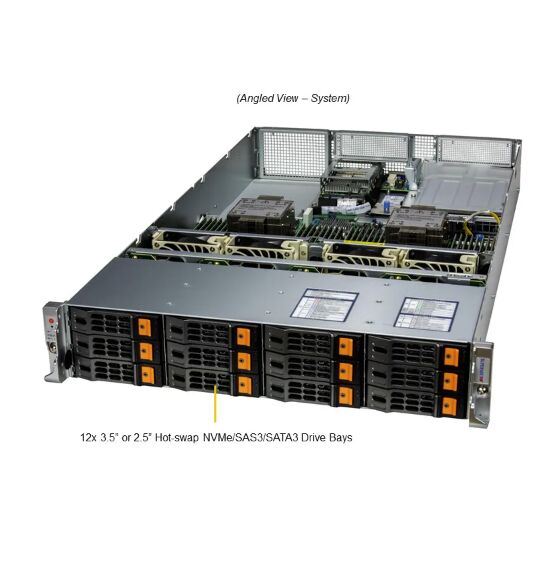

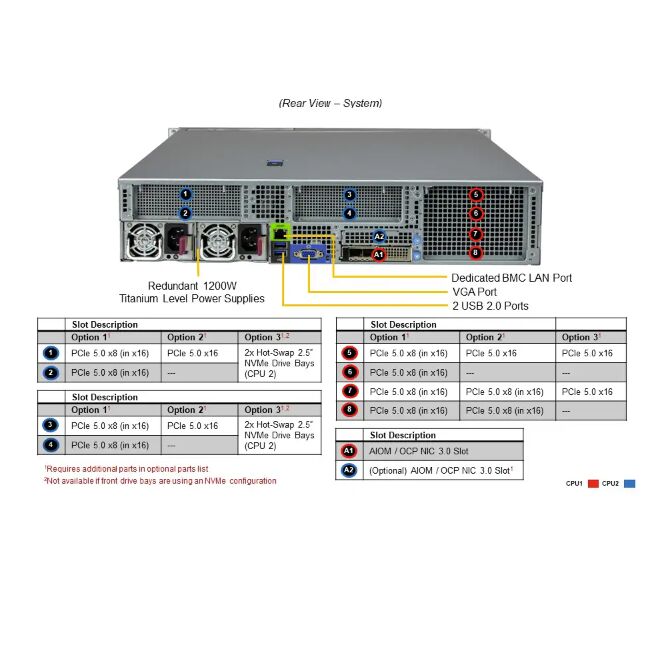

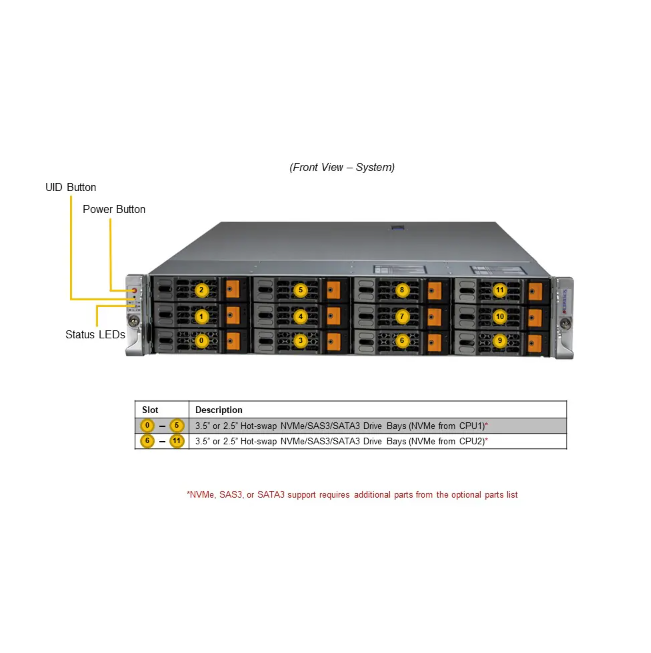

Product Images
Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs 0 Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs 1 Supermicro Ultra SuperServer SYS-220U-MTNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and Up to 4 GPUs 2
