Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots

Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-220H-TN24R
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
Form Factor: 2U Rackmount Processor: 3rd Gen Intel® Xeon® Scalable Processors
GPU: Up To 4 Double-width GPUs Slot Count: 32 DIMM Slots
Gross Weight: 66 Lbs (30 Kg) Net Weight: 40 Lbs (18.2 Kg)
Available Color: Black Front & Silver Body Power Supply: 2x 1600W Redundant Titanium Level (96%) Hot-plug Power Supplies
Drive Bays Configuration: Default: Total 24 Bays
Highlight:

3rd Gen Intel Xeon Scalable Supermicro Hyper SuperServer

,

4 double-width GPUs 2U Rackmount Server

,

32 DIMM slots Storage Server

Product Description

Supermicro Hyper SuperServer SYS-220H-TN24R
A high-performance 2U rackmount server designed for demanding enterprise workloads, featuring dual 3rd Gen Intel® Xeon® Scalable processors and extensive storage capabilities.
Key Applications
  • Virtualization and Cloud Computing
  • Software-defined Storage Solutions
  • AI Inference and Machine Learning
  • Enterprise Server Infrastructure
Key Features
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • 32 DIMM Slots supporting up to 8TB DRAM
  • Up to 8TB Intel® Optane™ Persistent Memory (12TB combined with DRAM)
  • 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM support
  • Flexible PCIe 4.0 configurations supporting up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots
  • Support for double-width GPU/Accelerator cards
  • Advanced networking with up to 2 AIOM slots (OCP NIC 3.0 compatible)

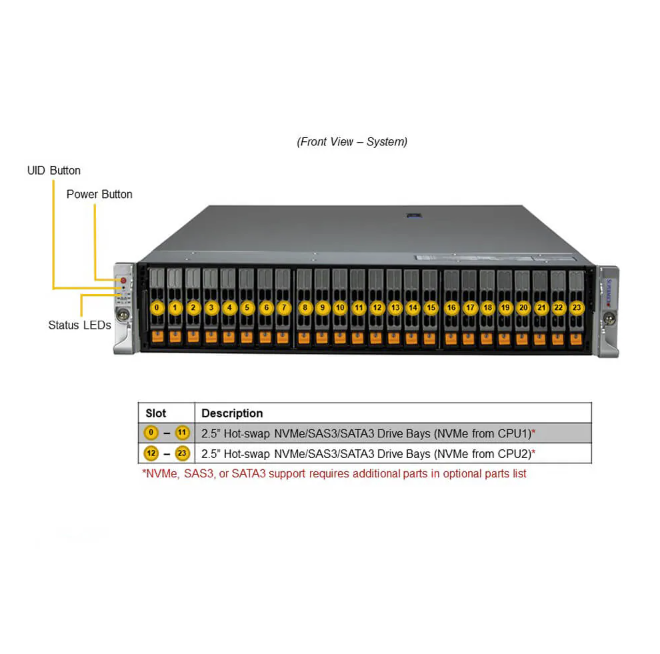

  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays
  • 2x internal M.2 NVMe/SATA drive slots
  • Optional RAID support via storage add-on card
  • 4 heavy-duty hot-swap fans with optimal speed control
Technical Specifications
Form Factor 2U Rackmount Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Up to 40C/80T; Up to 60MB Cache per CPU
GPU Support Up to 4 double-width GPUs
System Memory Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4
Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration Default: Total 24 bays - 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays
M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)
*NVMe/SAS/SATA support may require additional storage controller and/or cables

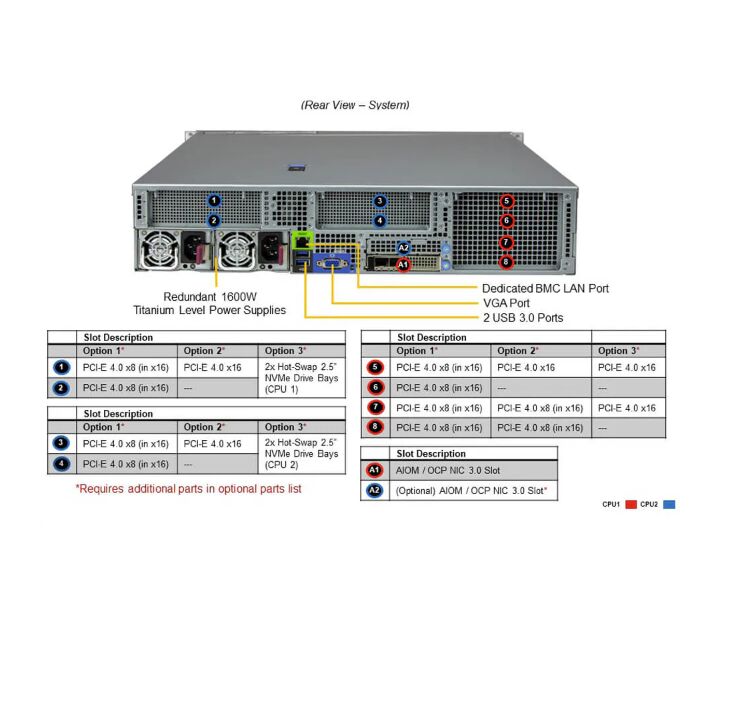

Expansion Slots Default*: 8 PCIe 4.0 x8 (in x16) FH/10.5"L slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*: 2 PCIe 4.0 x8 (in x16) FH/10.5"L slots, 3 PCIe 4.0 x16 FH/10.5"L slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
*Requires additional parts - see optional parts list for details
Power Supply 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimensions and Weight Weight: Gross Weight: 66 lbs (30 kg), Net Weight: 40 lbs (18.2 kg)
Available Color: N/A
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots 0 Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots 1
