Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs

Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs

Large Image :  Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs

Product Details:
Place of Origin: China
Brand Name: Supermicro
Model Number: AS-2025HS-TNR
Payment & Shipping Terms:
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Contact Now

Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs

Description
Form Factor: 2U Rackmount Processor: AMD EPYC™ 9004/9005 Series Processors
Max GPU Count: Up To 2 Double-width Or 2 Single-width GPUs Supported GPU: NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 4000, RTX 6000 Ada Generation, A100, RTX A4000, RTX A4500, RTX A5000, RTX A6000, T1000, RTX A5500, L40, RTX 5000 Ada, RTX A2000
Slot Count: 24 DIMM Slots Gross Weight: 69 Lbs (31.3 Kg)
Net Weight: 39 Lbs (17.7 Kg) Available Color: Black Front & Silver Body
Power Supply: 2x 1600W Redundant (1 + 1) Titanium Level (96%) Power Supplies
Highlight:

Dual AMD EPYC 9004/9005 Processors Supermicro Hyper Server

,

24 DIMM Slots DDR5 2U Rackmount Server

,

Up to 2 Double-Width GPUs AMD EPYC Server

Supermicro Hyper A+ Server AS-2025HS-TNR
Key Applications
Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Key Features
  • Dual AMD EPYC™ 9004/9005 Series Processors (AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
  • Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
  • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  • 12 Hot-swap 3.5"/2.5" NVMe/SATA/SAS drive bays
  • 2 M.2 PCIe 3.0 NVMe slots
  • Dual 1600W Redundant Titanium Level power supplies
Technical Specifications
Form Factor 2U Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6")
Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")
Processor Dual AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 320C/640T
GPU Max GPU Count: Up to 2 double-width or 2 single-width GPUs
Supported GPU: NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 4000, RTX 6000 Ada Generation, A100, RTX A4000, RTX A4500, RTX A5000, RTX A6000, T1000, RTX A5500, L40, RTX 5000 Ada, RTX A2000
CPU-GPU Interconnect: PCIe 5.0 x16
GPU-GPU Interconnect: PCIe
System Memory Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Drive Bays Configuration Default: Total 12 bays - 12 front hot-swap 3.5"/2.5" NVMe/SAS/SATA drive bays
M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Expansion Slots Multiple PCIe 5.0 configuration options available with 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Power Supply 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimensions and Weight Weight: Gross Weight: 69 lbs (31.3 kg), Net Weight: 39 lbs (17.7 kg)
Available Color: Black front & silver body
More details here
Product Images

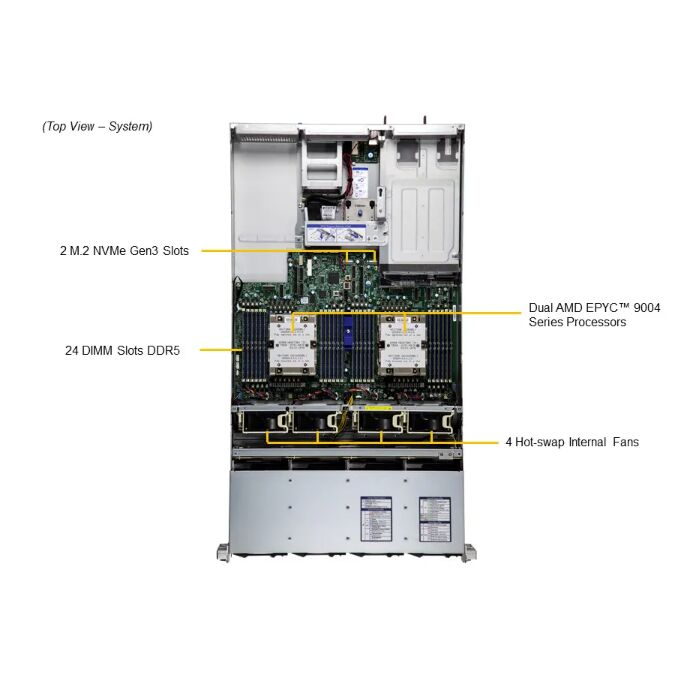

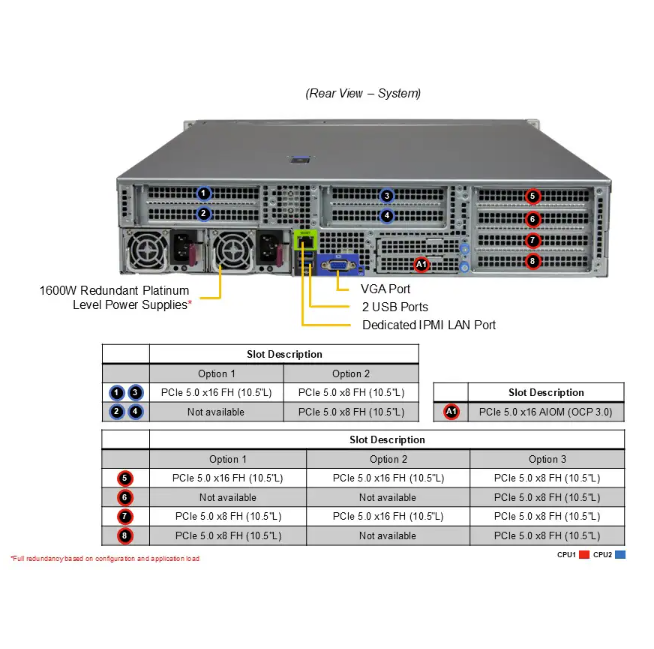

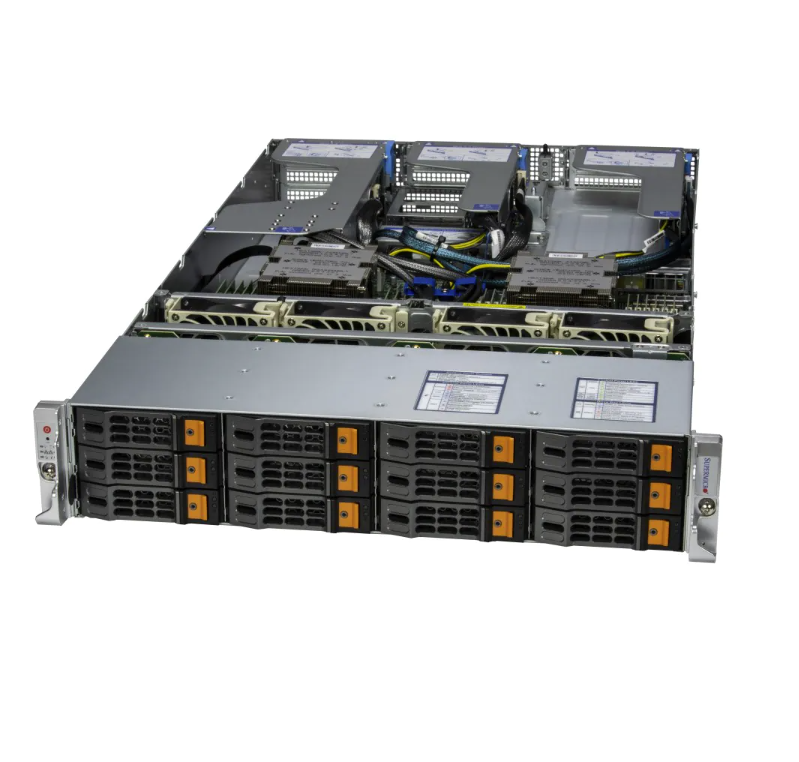

Supermicro Hyper A+ Server AS-2025HS-TNR front view Supermicro Hyper A+ Server AS-2025HS-TNR side view Supermicro Hyper A+ Server AS-2025HS-TNR rear view
