Name: Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-620U-TNR
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	3rd Gen Intel® Xeon® Scalable Processors
Max GPU Count:	Up To 4 Double-width Or 6 Single-width GPUs	Supported GPU:	NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10
Slot Count:	32 DIMM Slots	Gross Weight:	57.5 Lbs (26.2 Kg)
Net Weight:	35.5 Lbs (16.2kg)	Available Color:	Black Front & Silver Body
Power Supply:	1x 1200W Redundant Titanium Level (96%) Hot-plug Power Supply
Highlight:	3rd Gen Intel Xeon Scalable Supermicro Ultra SuperServer , 4 Double-Width GPUs Supermicro Storage Server , 32 DIMM Slots 2U Rackmount Server

Product Description

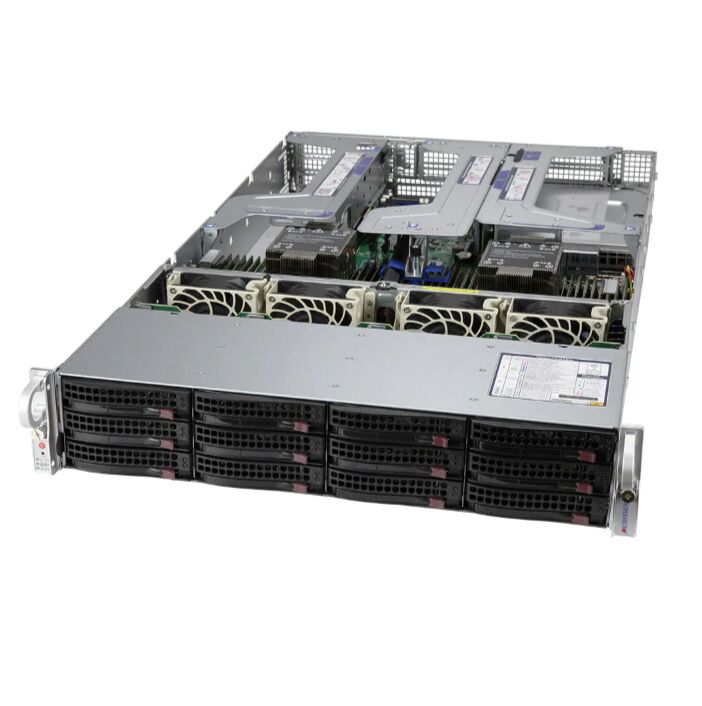

Supermicro Ultra SuperServer SYS-620U-TNR

Key Applications

Virtualization, High Performance Computing (HPC), Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco Infrastructure

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots supporting up to 8TB DRAM
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM)
3200/2933/2666 ECC DDR4 LRDIMM/RDIMM
Intel® Optane™ Persistent Memory 200 series
Flexible networking options

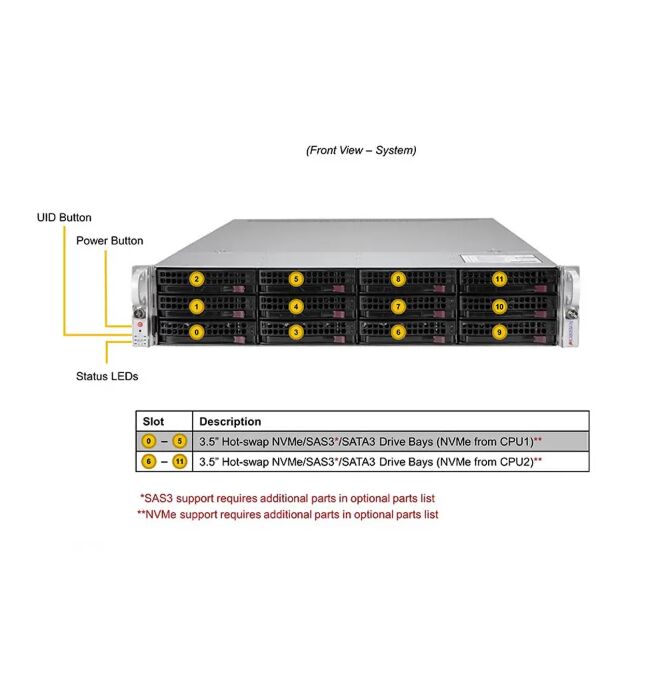

12x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
4 heavy duty fans with optimal fan speed control
1200W redundant Titanium level power supplies

Technical Specifications

Form Factor	2U Rackmount Enclosure: 437 x 89 x 737.9mm (17.2" x 3.5" x 29.05") Package: 605 x 256 x 947mm (23.81" x 10.07" x 37.28")
Processor	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU
GPU Support	Max GPU Count: Up to 4 double-width or 6 single-width GPUs Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10
System Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration	Default: Total 12 bays 12 front hot-swap 3.5" NVMe/SAS/SATA drive bays (SAS support may require additional storage controller and/or cables)

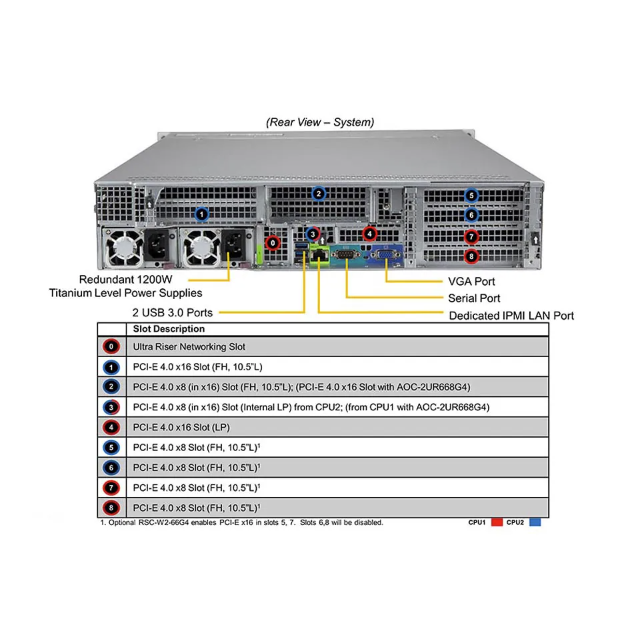

Expansion Slots	Default 1 PCIe 4.0 x16 (in x16) FH/10.5"L slot 5 PCIe 4.0 x8 (in x8) FH/10.5"L slots 1 PCIe 4.0 x8 (in x8) LP slot 1 PCIe 4.0 x16 (in x16) LP slot
Power Supply	1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Dimensions and Weight	Weight: Gross Weight: 57.5 lbs (26.2 kg) Net Weight: 35.5 lbs (16.2 kg) Available Color: Black Front & Silver Body

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-620U-TNR

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
