Name: Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-622B-TRT
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Intel® Xeon® 6700/6500 Series Processors With P-cores Or 6700 Series Processors With E-cores
Slot Count:	16 DIMM Slots	Drive Bays Configuration:	Default: Total 8 Bays
Expansion Slots:	PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 X8 LP Slots 4 PCIe 5.0 X16 LP Slots M.2: 2 M.2 PCIe 5.0 X4 NVMe Slots (M-key)	Gross Weight:	69 Lbs (31.2 Kg)
Net Weight:	36.38 Lbs (16.5kg)	Available Color:	Black
Highlight:	Intel Xeon 6700/6500 series processors Supermicro Hyper SuperServer , 16 DIMM slots 2U Rackmount Server , 2 PCIe 5.0 x8 LP slots Supermicro Storage Server

Product Description

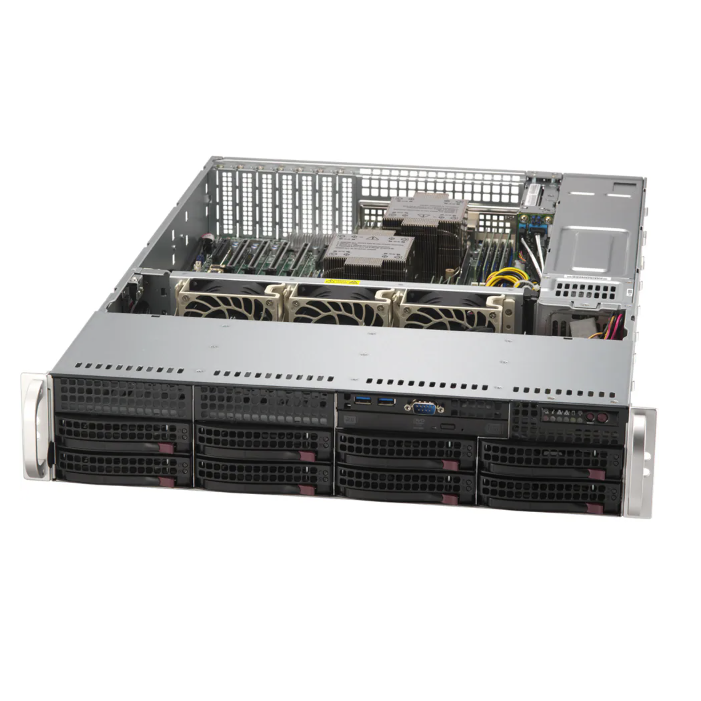

Supermicro Hyper SuperServer SYS-622B-TRT

Key Applications

Virtualization
Enterprise Server
Application and Data Serving
Compute Intensive Applications

Key Features

Dual Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, up to 350W TDP (air cooled)
Up to 2TB 6400MT/s ECC DDR5 RDIMM in 16 DIMM slots
2 RJ45 10GbE ports
Up to 2 PCIe 5.0 x8 LP + 4 PCIe 5.0 x16 LP slots
Up to 4 front hot-swap 3.5" NVMe/SAS/SATA + 4 front hot-swap 3.5" SAS/SATA drive bays
2 Redundant 1200W Titanium Level power supplies
2U Rackmount chassis with 25.5" (647mm) depth

Technical Specifications

Form Factor	2U Rackmount Enclosure: 437 x 89 x 647mm (17.2" x 3.5" x 25.5") Package: 678 x 290 x 876mm (26.7" x 11.4" x 34.5")

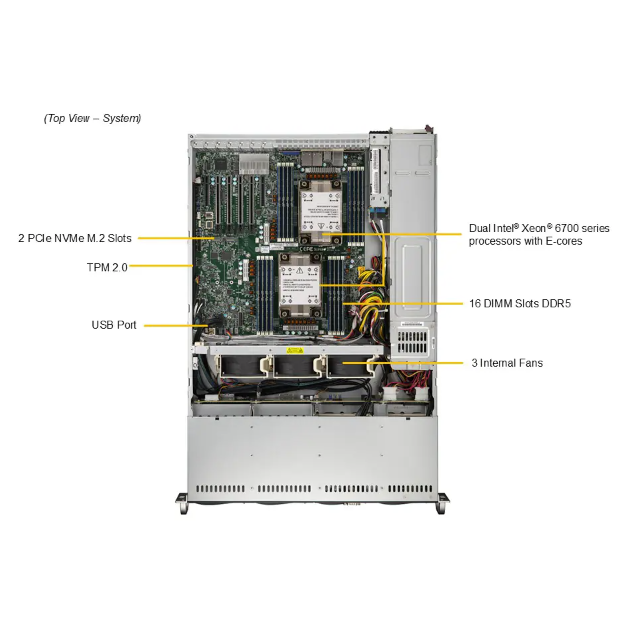

Processor	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors P-cores: Up to 128C/256T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
System Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM

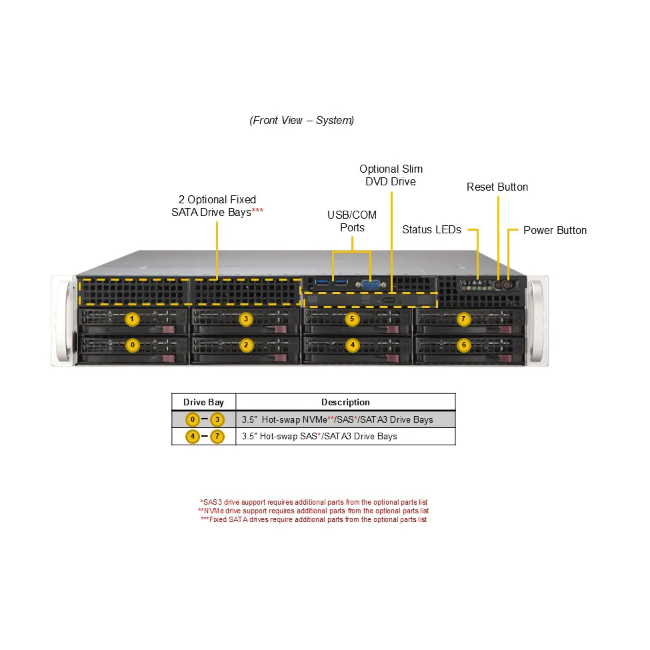

Drive Bays Configuration	Default: Total 8 bays 4 front hot-swap 3.5" NVMe/SAS/SATA drive bays 4 front hot-swap 3.5" SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key) Peripheral Bays: 1 slim DVD bay (optional)

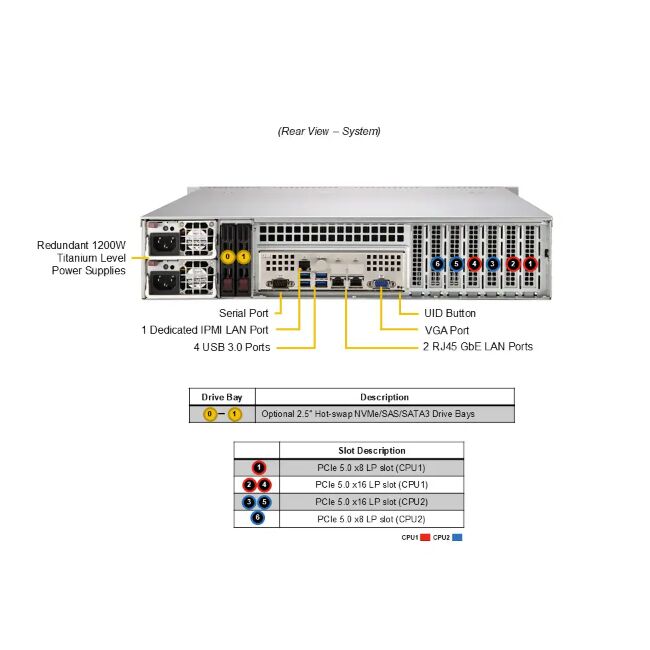

Expansion Slots	PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x8 LP slots 4 PCIe 5.0 x16 LP slots M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
On-Board Devices	SATA: SATA (6Gbps) Chipset: System on Chip Network Connectivity: 2 RJ45 10GbE
Power Supply	2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 69 lbs (31.2 kg) Net Weight: 36.38 lbs (16.5 kg) Available Color: Black

Product Images
