Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots

Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Basic Information
Place of Origin: China
Brand Name: Supermicro
Model Number: SYS-222H-TN
Minimum Order Quantity: 1/set
Delivery Time: 2-3 work days
Payment Terms: T/T
Supply Ability: 50pcs per week
Get Best Price Contact Now
Detail Information
Form Factor: 2U Rackmount Processor: Intel® Xeon® 6700/6500 Series Processors With P-cores Or 6700 Series Processors With E-cores
Max GPU Count: Up To 4 Double-width Or 8 Single-width GPUs Slot Count: 32 DIMM Slots
Gross Weight: 66 Lbs (30 Kg) Net Weight: 40 Lbs (18.2kg)
Available Color: Silver
Highlight:

Intel Xeon 6700/6500 Supermicro Hyper SuperServer

,

4 double-width GPUs 2U Rackmount Server

,

32 DIMM slots Storage Server

Product Description

Supermicro Hyper SuperServer SYS-222H-TN
Key Applications
Virtualization, Software-defined Storage, High Performance Computing, Cloud Computing, Enterprise Server
Key Features
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
  • 32 DIMM slots supporting up to 8TB of memory
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays
  • 2x internal M.2 NVMe drive slots
  • Optional RAID support via storage add-on card
Technical Specifications
Form Factor 2U Rackmount Enclosure: 438.4 x 88 x 755.2mm (17.3" x 3.5" x 29.73")
Package: 605 x 257 x 947mm (23.82" x 10.12" x 37.28")
Processor Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
GPU Max GPU Count: Up to 4 double-width or 8 single-width GPUs
Supported GPU: NVIDIA PCIe: H100 NVL, L40S
System Memory Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)
Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

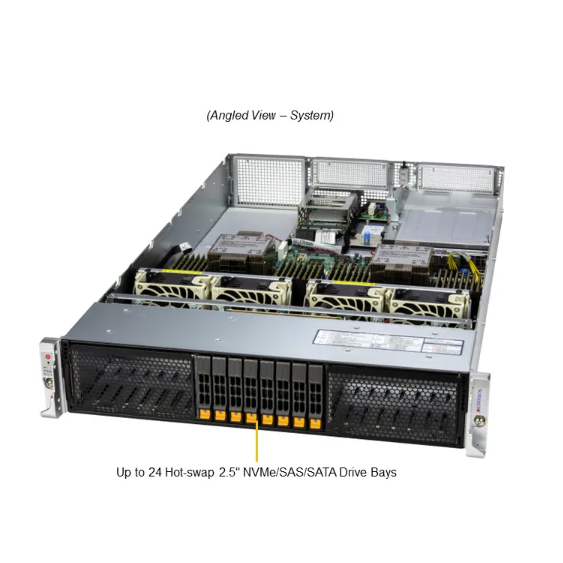

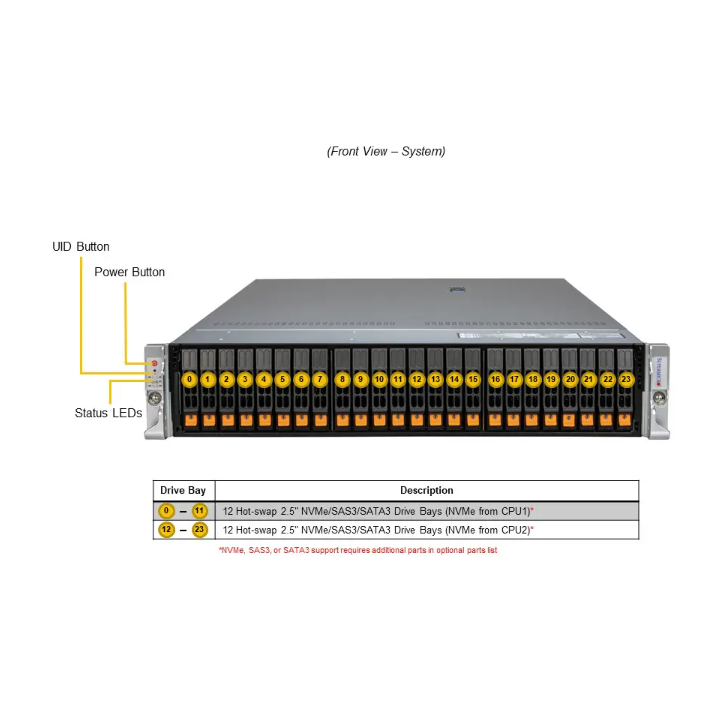

Drive Bays Configuration Default: Total 8 bays - 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 16 bays - 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option B: Total 24 bays - 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

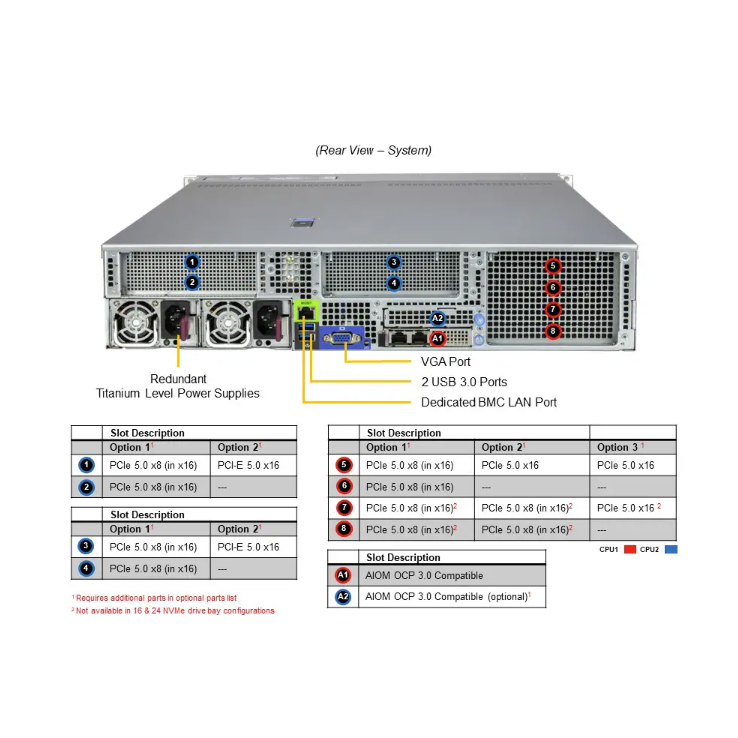

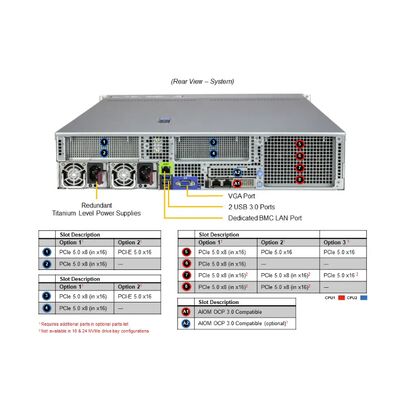

Expansion Slots PCI-Express (PCIe) Configuration:
Option A*: 4 PCIe 5.0 x16 FH/10.5"L double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible), 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
Option B*: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible), 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
CXL Support: Up to 4 CXL 2.0 x16/x8 devices
Power Supply 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimensions and Weight Weight: Gross Weight: 66 lbs (30 kg), Net Weight: 40 lbs (18.2 kg)
Available Color: Silver
Product Images
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots 0 Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots 1 Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots 2
