Name: Supermicro Hyper SuperServer SYS-222HA-TN 2U Rackmount Server with Intel® Xeon® 6900 Series Processors, 24 DIMM Slots, and Up to 4 Double-Width GPUs
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-222HA-TN
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Intel® Xeon® 6900 Series Processors With P-cores
Max GPU Count:	Up To 4 Double-width Or 4 Single-width GPUs	Slot Count:	24 DIMM Slots
Gross Weight:	75 Lbs (34 Kg)	Net Weight:	45 Lbs (20.5kg)
Available Color:	Silver
Highlight:	Intel® Xeon® 6900 series processors Supermicro Hyper SuperServer , Up to 4 double-width GPUs Supermicro Storage Server , 24 DIMM slots 2U Rackmount Server

Product Description

Supermicro Hyper SuperServer SYS-222HA-TN

Primary Applications

Artificial Intelligence (AI), Virtualization, High Performance Computing, Data Analytics

Key Features

Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays
2x internal M.2 NVMe drive slots with optional RAID support via storage add-on card

Technical Specifications

Form Factor	2U Rackmount Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74") Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31")
Processor	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
GPU Support	Max GPU Count: Up to 4 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, L40S, L4 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

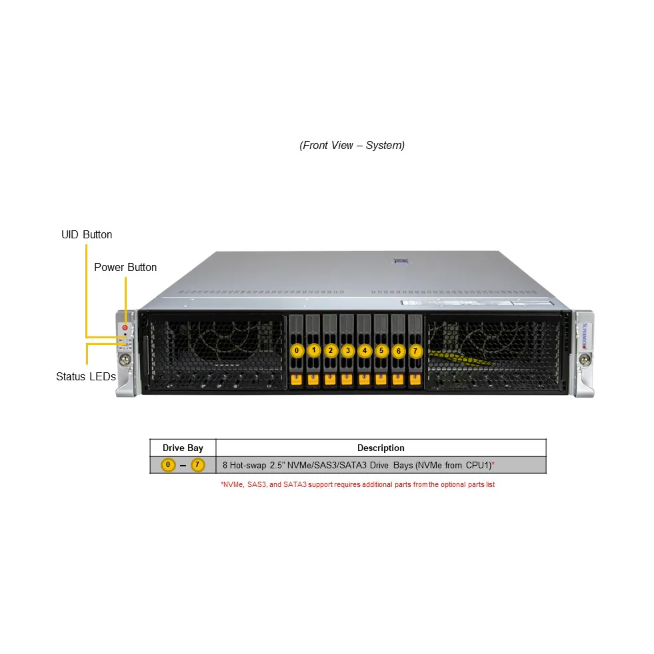

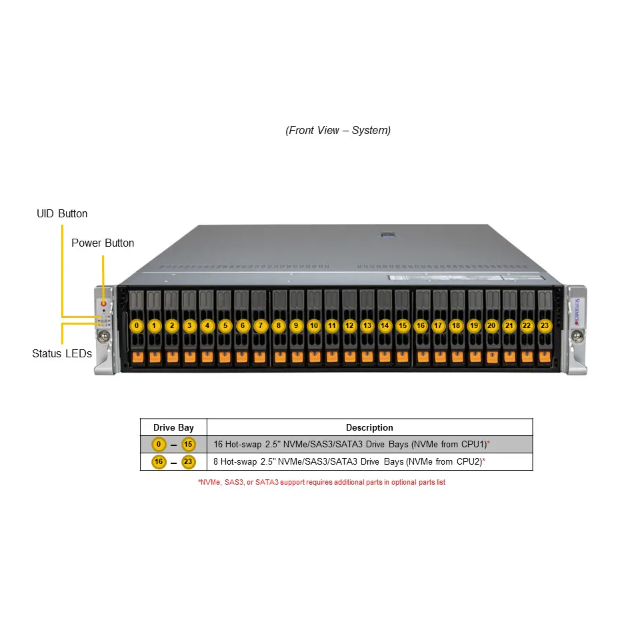

Drive Bays Configuration	Default: Total 8 bays - 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays Option A: Total 16 bays - 16 front hot-swap 2.5" NVMe/SAS/SATA drive bays Option B: Total 24 bays - 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) *NVMe/SAS/SATA support may require additional storage controller and/or cables
Expansion Slots	PCI-Express (PCIe) Configuration: Option A: 4 PCIe 5.0 x16 FH/10.5"L double-width slots + 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots + 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) CXL Support: Up to 4 CXL 2.0 x16/x8 devices
On-Board Devices	NVMe with RAID 0/1/5/10 support (Intel® VROC RAID key required) System on Chip Network Connectivity: Via AIOM
Dimensions and Weight	Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg) Available Color: Silver
Power Supply	2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-222HA-TN

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
