Name: Supermicro Hyper SuperServer SYS-222C-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 2TB DDR5 Memory, and 24 Hot-Swap Drive Bays
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-222C-TN
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	Intel® Xeon® 6700/6500 Series Processors With P-cores Or 6700 Series Processors With E-cores
Max GPU Count:	Up To 2 Double-width Or 4 Single-width GPUs	Max Memory (1DPC):	Up To 2TB 6400MT/s ECC DDR5 RDIMM
Drive Bays Configuration:	Default: Total 24 Bays	Power Supply:	2x 2000W Redundant (1 + 1) Titanium Level (96%) Power Supplies
Gross Weight:	83.78 Lbs (38 Kg)	Net Weight:	61.73 Lbs (28kg)
Available Color:	Silver
Highlight:	Intel Xeon 6700/6500 series processors Supermicro Hyper SuperServer , Up to 2TB DDR5 memory 2U Rackmount Server , 24 front hot-swap drive bays Data Center Server

Product Description

Supermicro Hyper SuperServer SYS-222C-TN

A high-performance 2U rackmount server engineered for demanding data center environments, cloud computing, and high-performance computing applications.

Key Applications

Networking Appliance Data Center Optimized Value IaaS Cloud Computing HPC Data Center Private & Hybrid Cloud Cloud Solution Provider (CSP)

Key Features

Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
Optimized power and balanced performance for cloud applications
Server management flexibility with OpenBMC

Technical Specifications

Form Factor	2U Rackmount Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2")
Processor	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
GPU	Max GPU Count: Up to 2 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

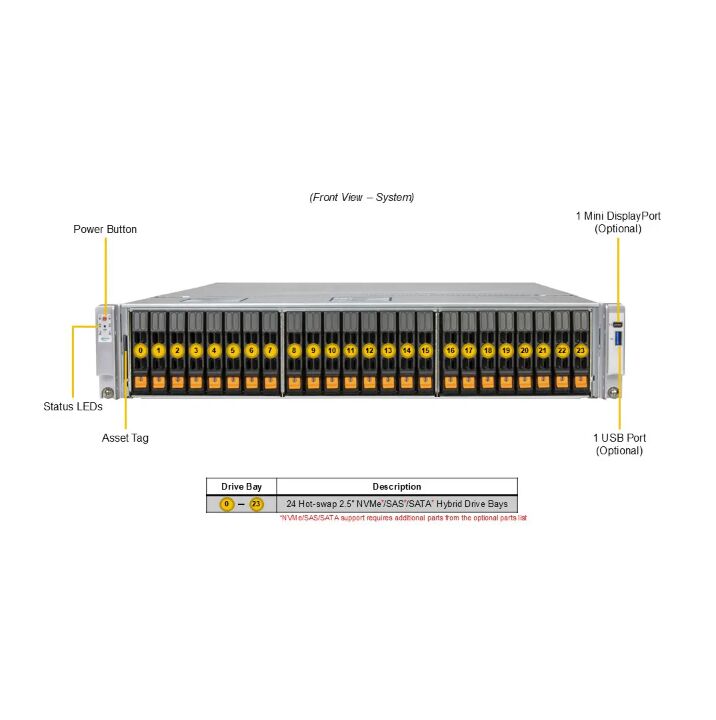

Drive Bays Configuration	Default: Total 24 bays - 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)

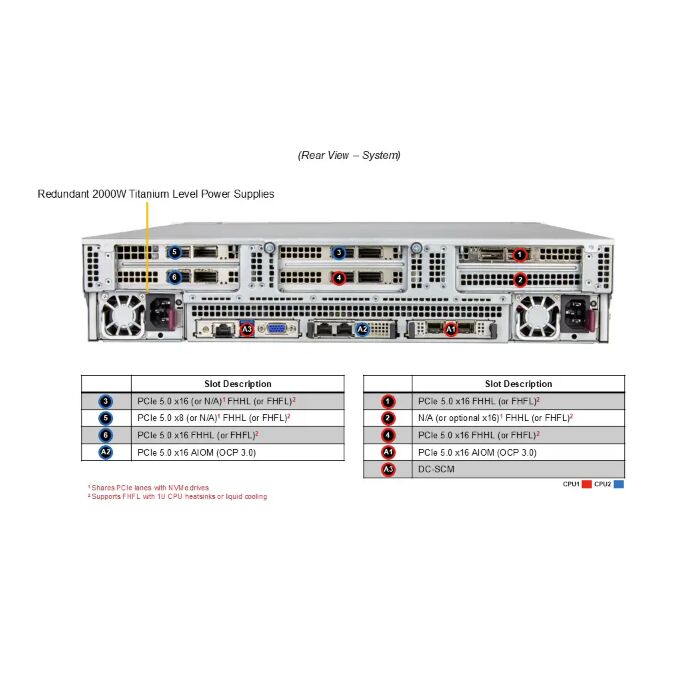

Expansion Slots	Default: 4 PCIe 5.0 x16 (in x16) FHFL slots + 1 PCIe 5.0 x8 (in x16) FHFL slot Option A: 2 PCIe 5.0 x16 (in x16) FHFL slots Option B: 6 PCIe 5.0 x16 (in x16) FHFL slots
On-Board Devices	NVMe: RAID 0/1/5/10 support (VROC HW key required) Chipset: System on Chip Network Connectivity: Via AIOM
Power Supply	2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 83.78 lbs (38 kg); Net Weight: 61.73 lbs (28 kg) Available Color: Silver

Product Images

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-222C-TN

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Supermicro Hyper SuperServer SYS-222C-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 2TB DDR5 Memory, and 24 Hot-Swap Drive Bays
