Name: Supermicro SYS-420GU-TNXR 4U GPU Server with 6 PCIe 4.0 x16 LP Slots, 10 Hot-Swap NVMe/SATA Drive Bays, and 4x 3000W Titanium Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-420GU-TNXR 4U GPU
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	4U Rackmount	Processor:	3rd Gen Intel® Xeon® Scalable Processors
GPU:	Supported GPU: NVIDIA SXM: HGX A100 4-GPU (80GB)	System Memory:	32 DIMM Slots
Expansion Slots:	Default 6 PCIe 4.0 X16 LP Slots	Drive Bays Configuration:	10 Front Hot-swap 2.5" NVMe/SATA Drive Bays
Power Supply:	4x 3000W Redundant Titanium Level (96%) Power Supplies	Available Color:	Black Front & Silver Body
Gross Weight:	140 Lbs (64 Kg)	Net Weight:	105 Lbs (48 Kg)
Highlight:	6 PCIe 4.0 x16 LP Slots Supermicro 4U GPU Server , 10 Hot-Swap NVMe/SATA Drive Bays Supermicro Storage Server , 4x 3000W Titanium Power Supplies Supermicro SYS-420GU-TNXR

Product Description

Supermicro SYS-420GU-TNXR 4U GPU Server With 3rd Gen Intel® Xeon® Scalable Processors

DP Intel Universal GPU System with NVIDIA HGX A100 4-GPU

Key Applications:

High Performance Computing
AI/Deep Learning Training

Key Features:

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots supporting up to 8TB DRAM
3200/2933/2666 ECC DDR4 LRDIMM/RDIMM
Highest GPU communication using NVIDIA® NVLINK™
Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
6 PCIe Gen 4.0 X16 LP Slots
Flexible networking options

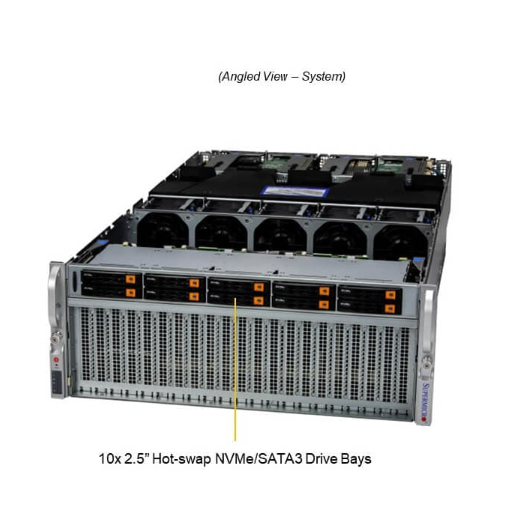

Up to 10x 2.5" Hot-swap NVMe/SATA drive bays
1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 3000W redundant Titanium level power supplies

Form	Supermicro SYS-420GU-TNXR 4U GPU Server
Processors	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU
GPU	Max GPU Count: 4 onboard GPUs Supported GPU: NVIDIA SXM: HGX A100 4-GPU (80GB) CPU-GPU Interconnect: PCIe 4.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink®
System Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" NVMe/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key)
Expansion slots	Default: 6 PCIe 4.0 x16 LP slots
Power Supply	4x 3000W Redundant Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg) Available Color: Black Front & Silver Body

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-420GU-TNXR 4U GPU

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
