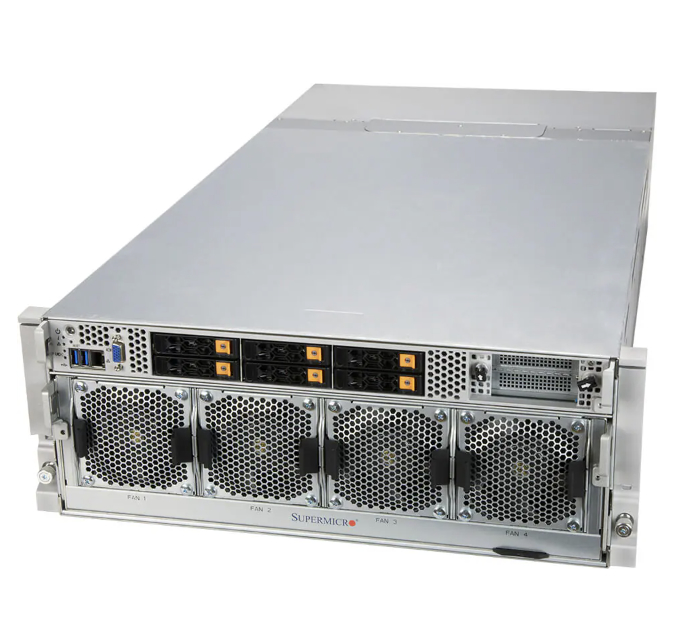

Name: Supermicro SYS-420GP-TNAR+ 4U Rackmount GPU Server with 8 Onboard GPUs 32 DIMM Slots and 10 PCIe 4.0 x16 LP Slots
Brand: Beijing Core-Net Techonology Co., Limited
SKU: SYS-420GP-TNAR+
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	4U Rackmount	Processor:	3rd Gen Intel® Xeon® Scalable Processors
GPU:	Max GPU Count: 8 Onboard GPUs	System Memory:	Slot Count: 32 DIMM Slots
Expansion Slots:	Default：10 PCIe 4.0 X16 LP Slots	Drive Bays Configuration:	Default: Total 6 Bays
Power Supply:	1x 3000W Redundant Titanium Level (96%) Power Supply	Available Color:	Black Front & Silver Body
Gross Weight:	225 Lbs (102.1 Kg)	Net Weight:	166 Lbs (75.3 Kg)
Highlight:	8 Onboard GPUs GPU Server , 32 DIMM Slots Supermicro Storage Server , 10 PCIe 4.0 x16 LP Slots 4U Rackmount Server

Product Description

Supermicro SYS-420GP-TNAR+ 4U GPU Server with 3rd Gen Intel® Xeon® Scalable processors

A high-performance 4U GPU server designed for demanding computing applications, featuring dual 3rd Gen Intel® Xeon® Scalable processors and support for up to 8 GPUs.

Key Applications

High Performance Computing
AI/Deep Learning Training

Key Features

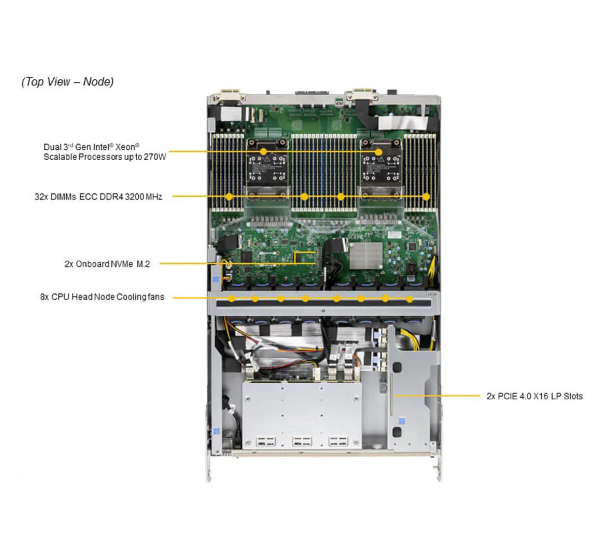

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots supporting up to 8TB DRAM
Up to 8TB Intel® Optane™ Persistent Memory (12TB with DRAM)
3200/2933/2666 ECC DDR4 LRDIMM/RDIMM
Intel® Optane™ Persistent Memory 200 series
AIOM/OCP 3.0 Support
10 PCIe Gen 4.0 X16 LP Slots
Flexible networking options

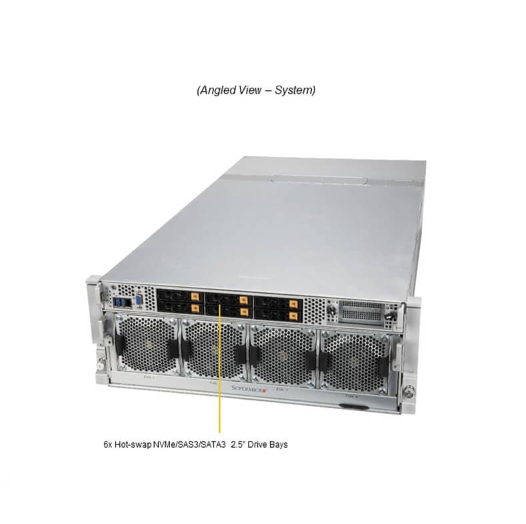

6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
2 M.2 NVMe and SATA for boot drive
4 heavy duty fans with optimal speed control
4x 3000W redundant Titanium level power supplies

Form	Supermicro AS-4124GO-NART+ 4U GPU Server
Processors	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU

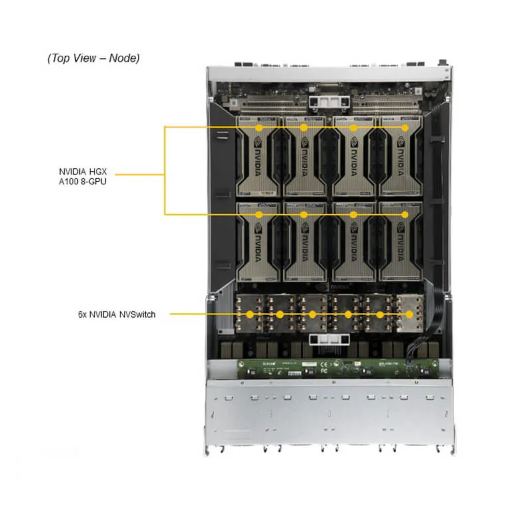

GPU	Max GPU Count: 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX A100 8-GPU (80GB) CPU-GPU Interconnect: PCIe 4.0 x16 GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™
System Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration	Default: Total 6 bays 6 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key)
Expansion slots	Default 10 PCIe 4.0 x16 LP slots
Power Supply	1x 3000W Redundant Titanium Level (96%) power supply
Dimensions and Weight	Weight: Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) Available Color: Black Front & Silver Body

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	SYS-420GP-TNAR+

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week
