Name: Supermicro AS-2145GH-TNMR-LCC 2U Rackmount GPU Server with 512GB ECC HBM3 Memory 4 PCIe 5.0 x16 Slots and 2700W Titanium Power Supplies
Brand: Beijing Core-Net Techonology Co., Limited
SKU: AS-2145GH-TNMR-LCC
Price: 2,850.00 USD
Availability: InStock

Detail Information

Form Factor:	2U Rackmount	Processor:	AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU:	Max GPU Count: 4 Onboard GPUs	System Memory:	Slot Count: Onboard Memory Max Memory: Up To 512GB ECC HBM3
Expansion Slots:	4 PCIe 5.0 X16 FHFL Slots	Power Supply:	4x 2700W Redundant (3 + 1) Titanium Level (96%) Power Supplies
Available Color:	Silver	Gross Weight:	101.1 Lbs (45.86 Kg)
Net Weight:	78 Lbs (35.38 Kg)
Highlight:	512GB ECC HBM3 Memory GPU Server , 4 PCIe 5.0 x16 Slots 2U Rackmount Server , 2700W Titanium Power Supplies Supermicro Server

Product Description

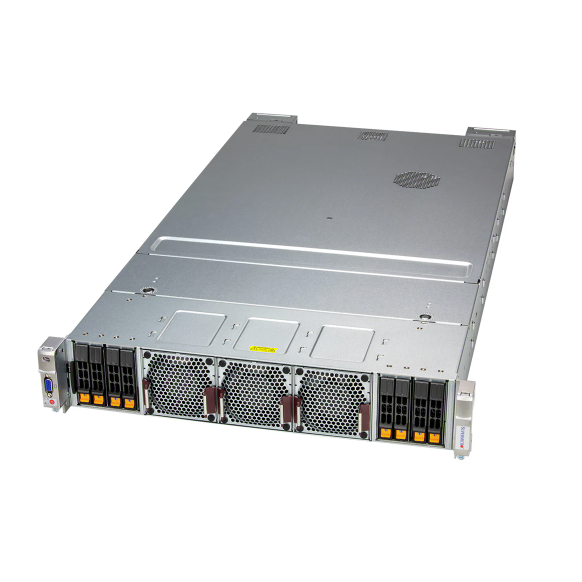

Supermicro AS-2145GH-TNMR-LCC 2U GPU Server With AMD Instinct™ MI300A Accelerated Processing Units (APUs)

2U Liquid Cooled System with Quad AMD Instinct™ MI300A Accelerators (onsite service required)

Artificial Intelligence (AI) Large Language Model (LLM) Cloud Solution Provider (CSP) High Performance Computing (HPC) Research Lab

Key Features

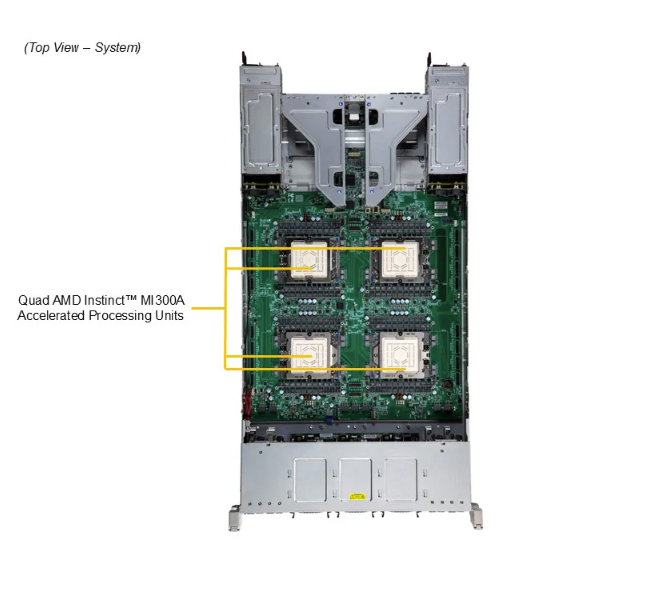

High density quad AMD Instinct™ MI300A processors
Onboard 512GB HBM3 unified memory
Optional PCIe configurations up to 6 PCIe x16 FHHL slots
Flexible networking with 1 AIOM networking slot (OCP NIC 3.0 compatible)

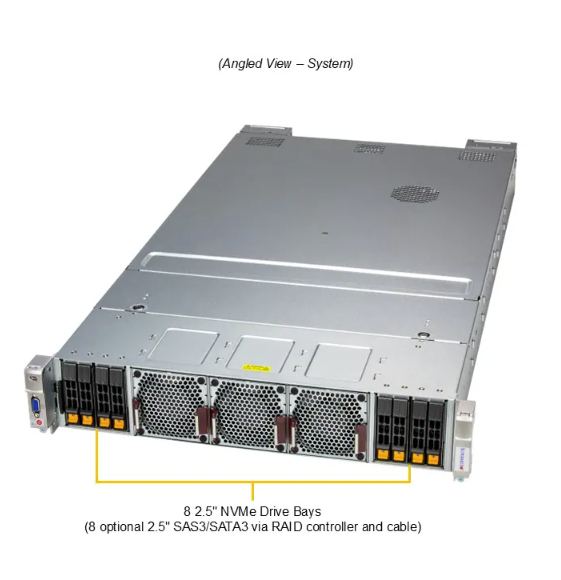

Default 8 2.5" NVMe drive bays or optional 8 2.5" SAS3/SATA3 drive bays
2 internal NVMe/SATA M.2 slots

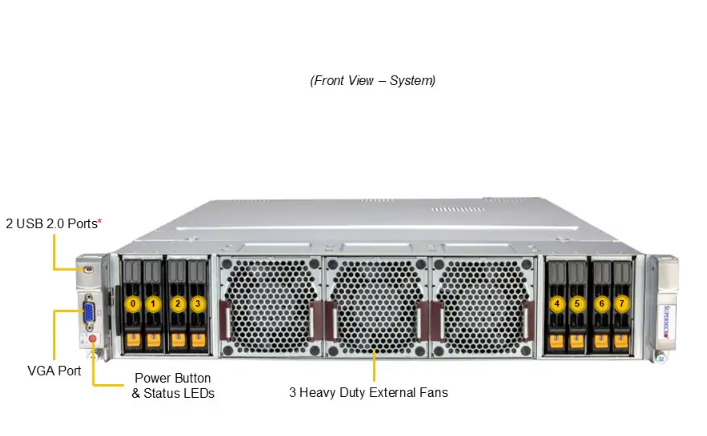

3 heavy duty fans with liquid cooling

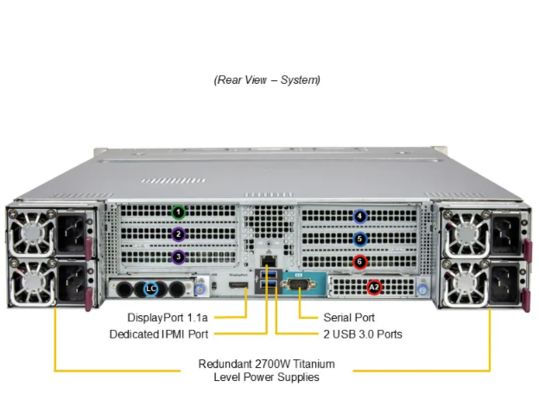

4x 2700W redundant Titanium level power supplies

Form	Supermicro AS-2145GH-TNMR-LCC 2U GPU Server
Processors	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
GPU	Max GPU Count: 4 onboard GPUs Supported GPU: AMD: Instinct™ MI300A APU
System Memory	Slot Count: Onboard Memory Max Memory: Up to 512GB ECC HBM3
Drive Bays Configuration	Default: Total 8 bays - 8 front fixed 2.5" NVMe drive bays Option A: Total 8 bays - 8 front fixed 2.5" SAS/SATA drive bays (*SAS/SATA support may require additional storage controller and/or cables) M.2: 2 M.2 NVMe slots (M-key 2280/22110)
Expansion slots	Default: 4 PCIe 5.0 x16 FHFL slots Option A*: 4 PCIe 5.0 x16 FHFL slots + 2 PCIe 5.0 x16 FHHL slots + 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Power Supply	4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimensions and Weight	Weight: Gross Weight: 101.1 lbs (45.86 kg) Net Weight: 78 lbs (35.38 kg) Available Color: Silver

Tag:

Place of Origin:	China
Brand Name:	Supermicro
Model Number:	AS-2145GH-TNMR-LCC

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Supermicro AS-2145GH-TNMR-LCC 2U Rackmount GPU Server with 512GB ECC HBM3 Memory 4 PCIe 5.0 x16 Slots and 2700W Titanium Power Supplies

512GB ECC HBM3 Memory GPU Server

4 PCIe 5.0 x16 Slots 2U Rackmount Server

2700W Titanium Power Supplies Supermicro Server
