Supermicro SYS-522GA-NRT 5U GPU Server with Intel® Xeon® 6900 series processors with P-cores

Dual Socket BR (LGA-7529)

Intel® Xeon® 6900 series processors with P-cores

Up to 128C/256T; Up to 504MB Cache per CPU

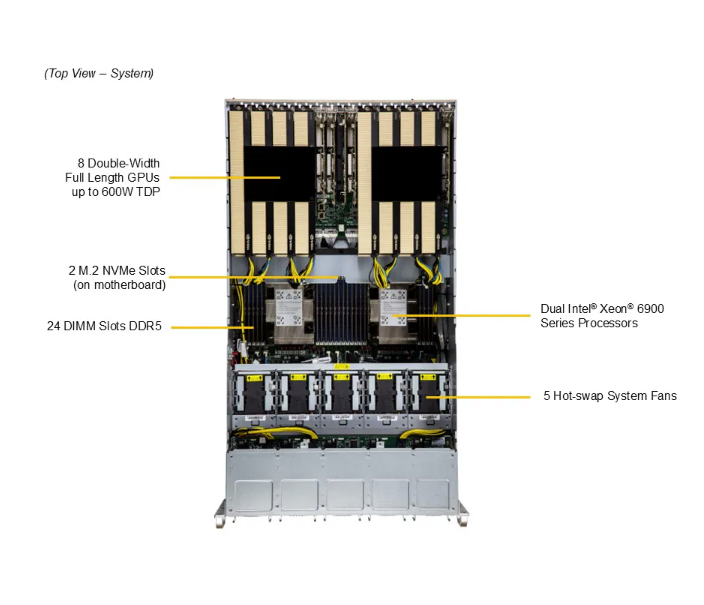

Max GPU Count: Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S, L4

CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root

GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional)

Slot Count: 24 DIMM slots

Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM

Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

Default: Total 24 bays

24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays

M.2: 2 M.2 NVMe slots (M-key)

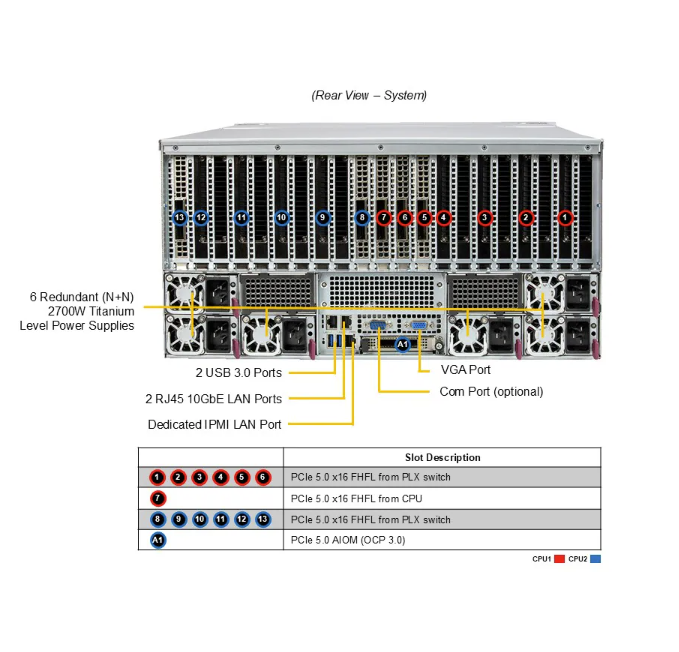

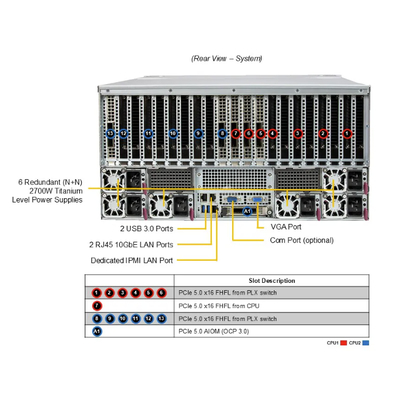

PCI-Express (PCIe) Configuration: Default 13 PCIe 5.0 x16 FHFL slots

M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)

Weight: Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)

Available Color: Black Front & Silver Body
