| Place of Origin: | China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | SYS-420GU-TNXR 4U GPU |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 4U Rackmount | Processor: | 3rd Gen Intel® Xeon® Scalable Processors |
|---|---|---|---|
| GPU: | Supported GPU: NVIDIA SXM: HGX A100 4-GPU (80GB) | System Memory: | 32 DIMM Slots |
| Expansion Slots: | Default 6 PCIe 4.0 X16 LP Slots | Drive Bays Configuration: | 10 Front Hot-swap 2.5" NVMe/SATA Drive Bays |
| Power Supply: | 4x 3000W Redundant Titanium Level (96%) Power Supplies | Available Color: | Black Front & Silver Body |
| Highlight: | Supermicro SYS-420GU-TNXR GPU Server,Supermicro 4U GPU Server |
||
Key Applications:
High Performance Computing, AI/Deep Learning Training,
Key Features High density:

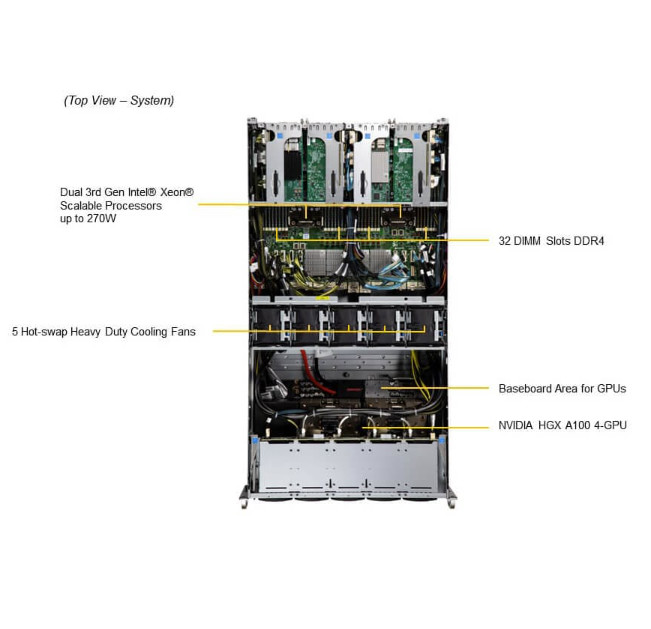

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors; Intel® C621A Chipset; 32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Highest GPU communication using NVIDIA® NVLINK™ Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e) 4U system with NVIDIA® HGX™ A100 4-GPU 6 PCIe Gen 4.0 X16 LP Slots; Flexible networking options; Up to 10x 2.5" Hot-swap NVMe/SATA drive bays 1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only); 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control; 4x 3000W redundant Titanium level power supplies;
| Form | Supermicro SYS-420GU-TNXR 4U GPU Server |
| Processors |
Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU |
| GPU |
Max GPU Count: 4 onboard GPUs Supported GPU: NVIDIA SXM: HGX A100 4-GPU (80GB) CPU-GPU Interconnect: PCIe 4.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® |
| System Memory |
Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration |

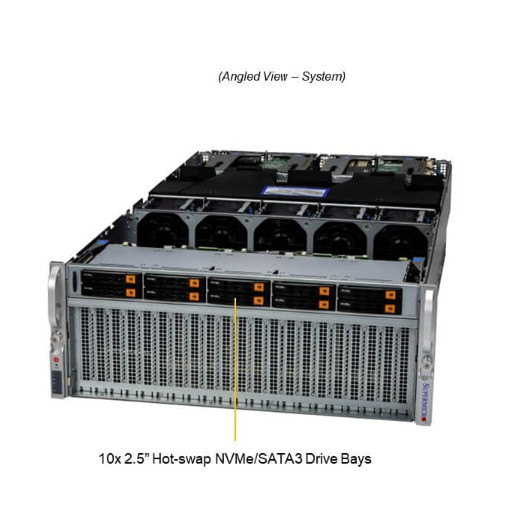

Default: Total 10 bays 10 front hot-swap 2.5" NVMe/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) |
| Expansion slots |
Default 6 PCIe 4.0 x16 LP slots |
| Power Supply | 4x 3000W Redundant Titanium Level (96%) power supplies |
| Dimensions and Weight |
Weight: Gross Weight: 140 lbs (64 kg) |
