| Place of Origin: | China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | SYS-421GE-TNHR2-LCC 4U GPU Server |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 4U Rackmount | Processor: | 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors |
|---|---|---|---|
| GPU: | Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) | System Memory: | 32 DIMM Slots |
| Expansion Slots: | 8 PCIe 5.0 X16 LP Slots 2 PCIe 5.0 X16 FHHL Slots | Drive Bays Configuration: | 8 Front Hot-swap 2.5" NVMe Drive Bays |
| Power Supply: | 4x 5250W Redundant (2 + 2) Titanium Level (96%) Power Supplies | Available Color: | Silver |
| Highlight: | Supermicro 4U GPU Server,SYS-421GE-TNHR2-LCC |
||
Key Applications:
Scientific Research, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Finance Services and Fraud Detection, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI, High Performance Computing (HPC), Autonomous Vehicle Technologies,
Key Features High density:
Complete liquid-cooled rack integration is required for purchase; 5th/4th Gen Intel® Xeon® Scalable processor support; 8 NVIDIA H200/H100 GPUs; 32 DIMM slots, ECC RDIMM DDR5 up to 4TB 5600MT/s (1DPC) or up to 8TB 4400MT/s (2DPC); 8 PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots; 8 front hot-swap 2.5" NVMe U.2, 2x front hot-swap NVMe M.2; 4 Redundant 52500W Titanium Level power supplies; 2 10GbE RJ-45, 1x Dedicated BMC/IPMI;

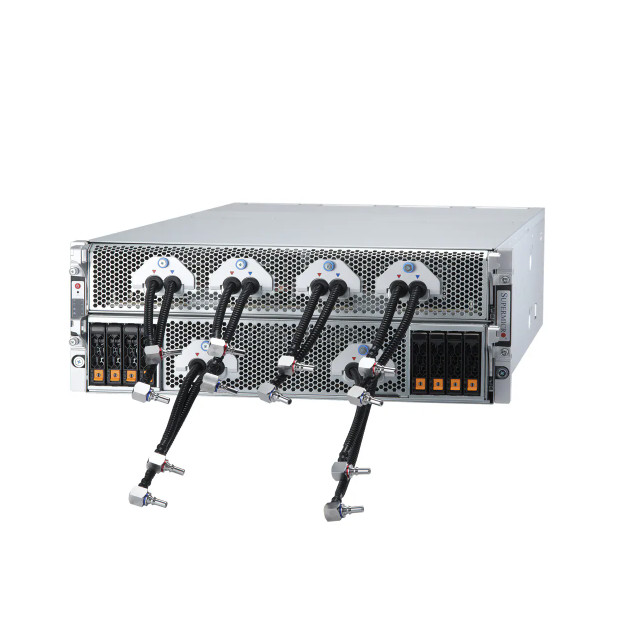

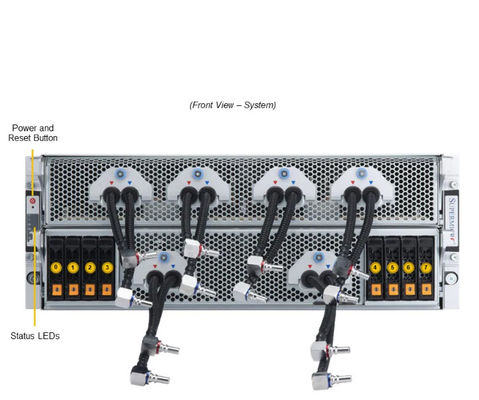

| Form | Supermicro SYS-421GE-TNHR2-LCC 4U GPU Server |
| Processors |

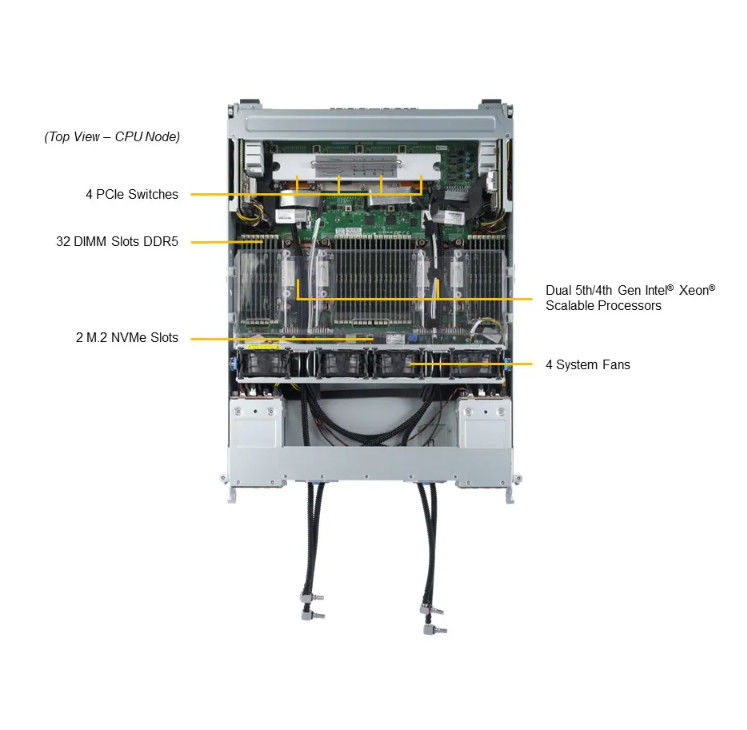

Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU |

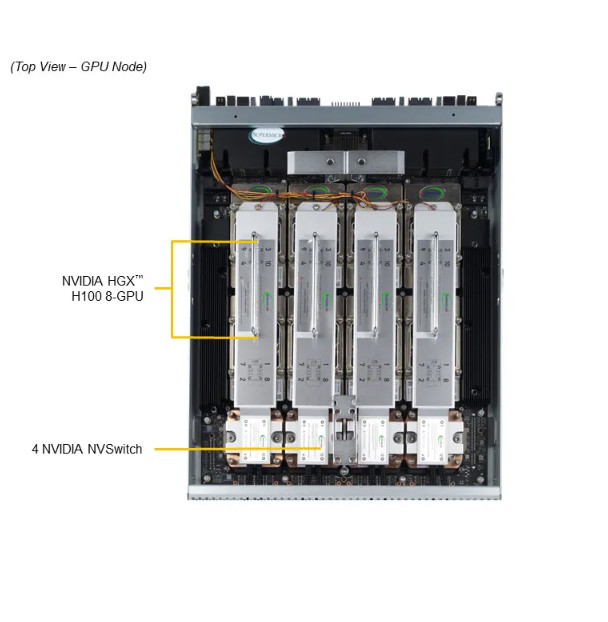

Max GPU Count: 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory |
Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration |

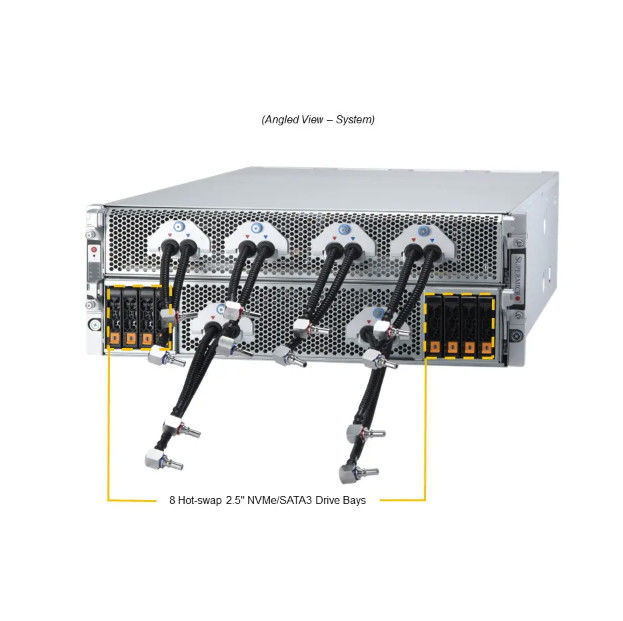

Default: Total 8 bays 8 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) |
| Expansion slots |
Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots Option A 8 PCIe 4.0 x16 LP slots 4 PCIe 5.0 x16 FHHL slots |
| Power Supply | 4x 5250W Redundant (2 + 2) Titanium Level (96%) power supplies |
| Dimensions and Weight |
Weight: Gross Weight: 216 lbs (98 kg) Net Weight: 176 lbs (80 kg) Available Color: Silver |
