| Place of Origin: | China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | SYS-210GP-DNR |
| Minimum Order Quantity: | 1/set |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per week |
| Form Factor: | 2U Rackmount | Processor: | 3rd Gen Intel® Xeon® Scalable Processors |
|---|---|---|---|
| GPU: | Supported GPU: NVIDIA PCIe: A40, RTX A4500, RTX A4000, A40, A30, A100, A10 | System Memory: | Up To 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Expansion Slots: | 3 PCIe 4.0 X16 FHFL Double-width Slots | Power Supply: | 1x 2600W Redundant Titanium Level (96%) Power Supply |
| Available Color: | Black Front & Silver Body |
Key Applications:
High Performance Computing, AI/Deep Learning Training, Media/Video Streaming, Industrial Automation, Retail, Cloud Gaming,
Key Features High density:
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:; Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor; Intel® C621A Chipset; 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs; 3 PCIe Gen 4.0 x16 FHFL DW; 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays 2 M.2 NVMe and SATA for boot drive only; AST2500 BMC;

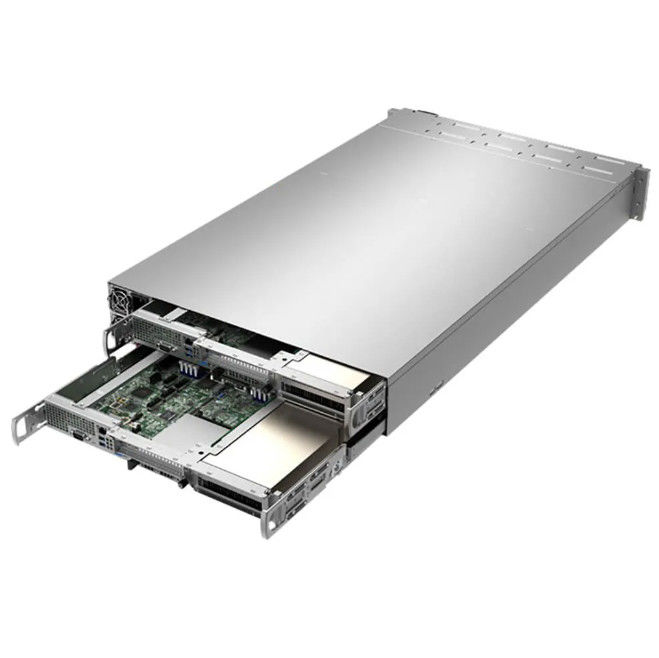

| Form | Supermicro SYS-210GP-DNR 2U GPU Server |
| Processors | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache |
| GPU | Max GPU Count: Up to 3 double-width or 3 single-width GPUs |
| System Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) |
| Expansion slots | Default |
| Power Supply | 1x 2600W Redundant Titanium Level (96%) power supply |
| Dimensions and Weight | Weight: Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg) |
