| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Supermicro |
| Model Number: | SYS-2029TP-HC1R |
| Minimum Order Quantity: | 2 pieces |
| Packaging Details: | New Original Packing |
| Supply Ability: | 100 Piece/Pieces per Quarter |
| Type: | Rack | Processor Type: | INTEL AMD |
|---|---|---|---|

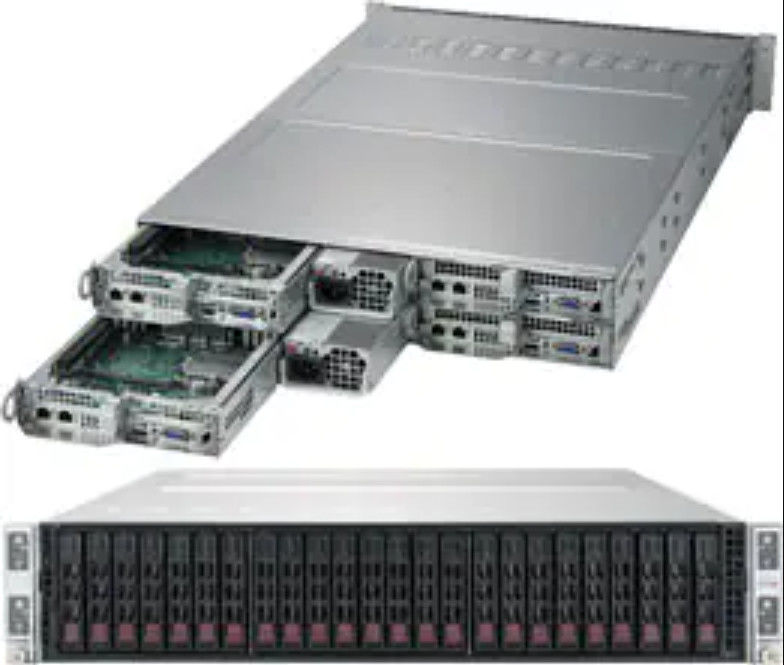

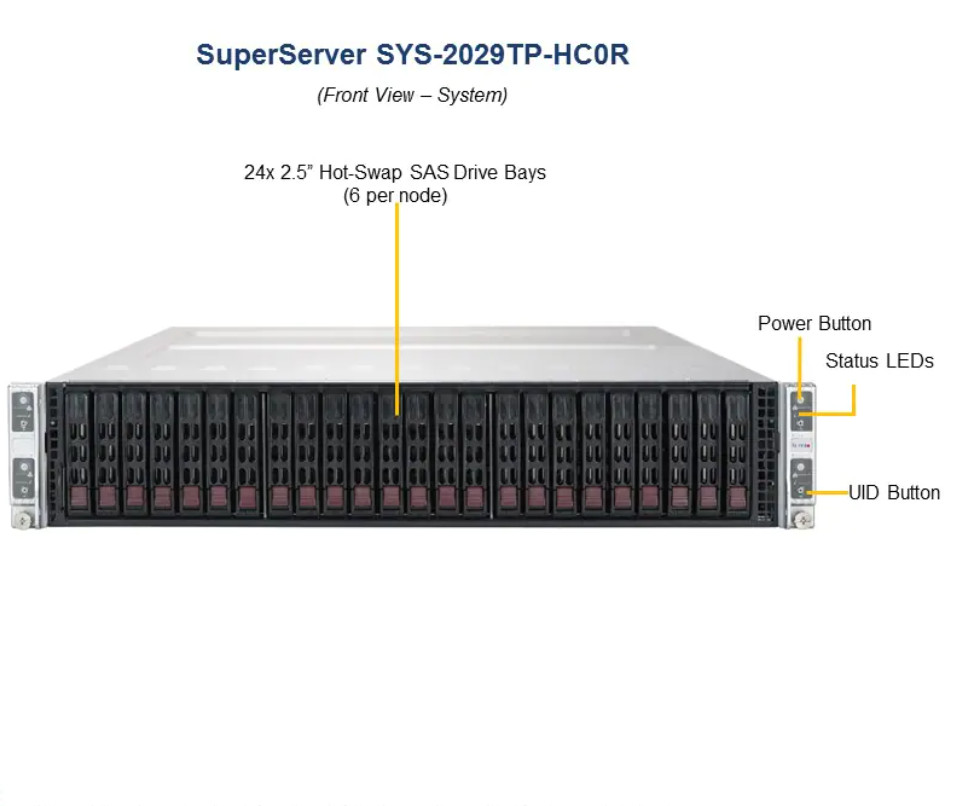

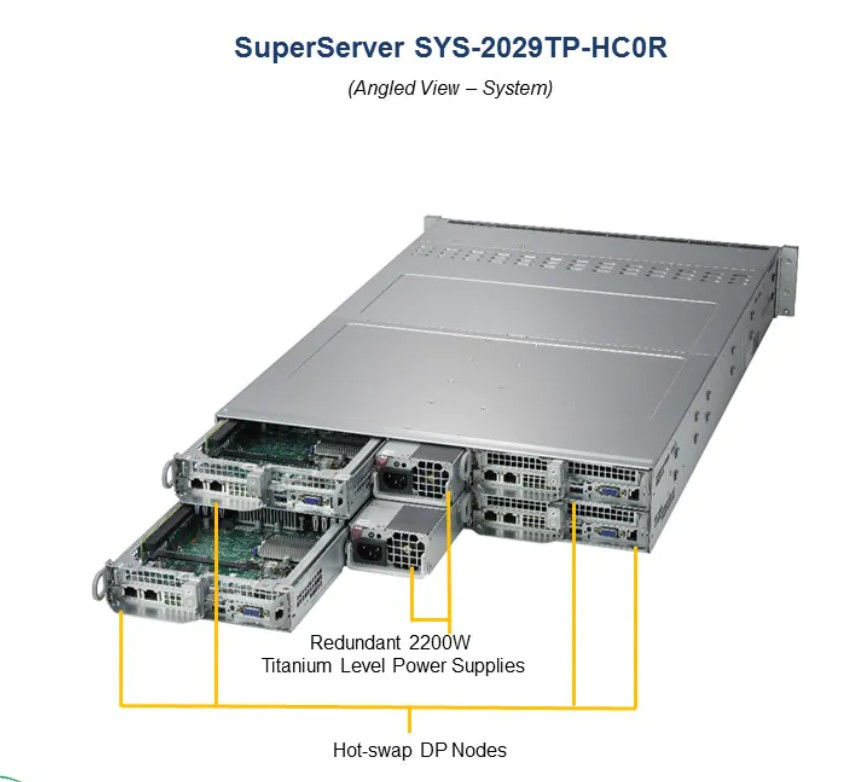

| Highlight: | 24x SATA Supermicro Storage Server,2U Twin2 Supermicro Storage Server,SYS-2029TP-HC1R |
||
|
Product SKUs
|
Expansion Slots
|
||
|
MBD-X11DPT-PS
|
|
PCIe
|
1 PCIe 3.0 x16 Right Riser Slot,
|
|
Physical Stats
|
1 PCIe 3.0 x24 riser,
|
||
|
Form Factor
|
Proprietary Twin
|
1 PCIe 3.0 x16 connector for SMC add-on cards,
|
|
|
Dimension
|
6.8" x 18.86" (17.27cm x 47.9cm)
|
1 PCIe 3.0 x8 connector for SMC add-on cards
|
|
|

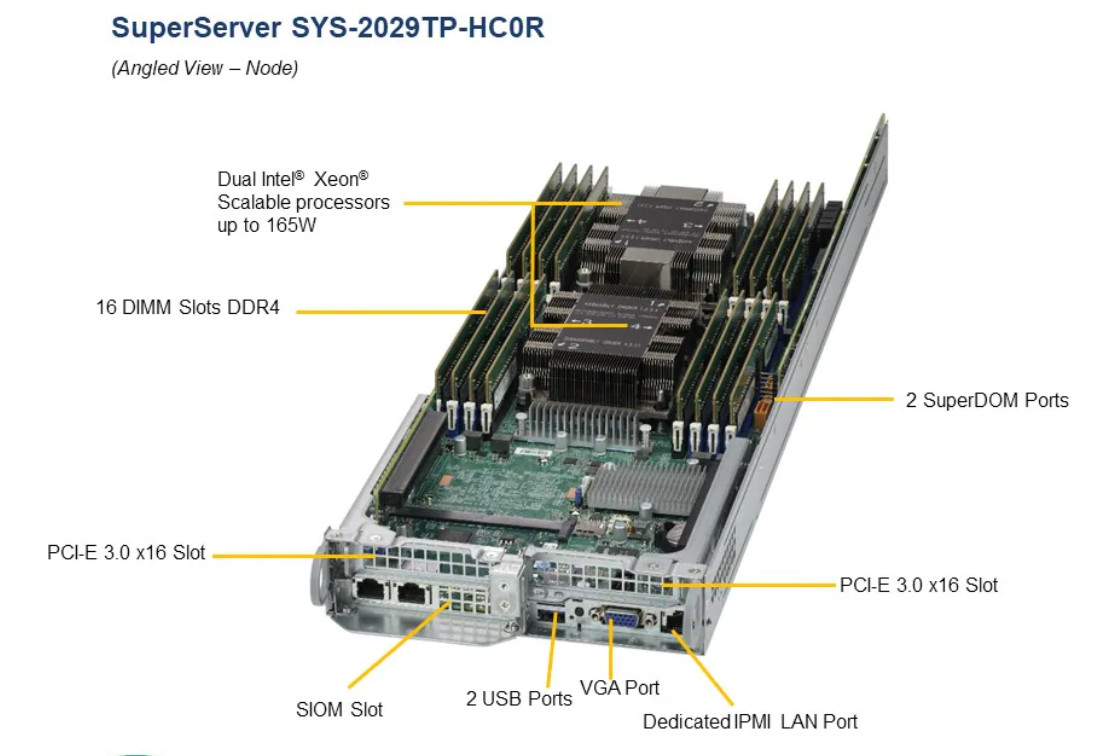

Processor
|
PCIe 3.0 x16 SIOM LAN Networking slot
|
||
|
CPU
|
2nd Gen Inte XeonScalable Processors and Inte XeonScalable Processors
|
System BIOS
|
|
|
Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s
|
BIOS Type
|
AMI UEFI
|
|
|
Core
|
Up to 28 cores
|
Management
|
|
|
Note
|
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
|
Software
|
SuperDoctor5,SUM, KVM with dedicated LAN,SPM, IntelNode Manager,SSM,IPMI2.0, Watchdog
|
|
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
|
Power Configurations
|
ACPI Power Management
|
|
|
BIOS version 3.2 or above is required to support 2nd Gen Inte XeonScalable processors (codenamed Cascade Lake-R)
|
PC Health Monitoring
|
||
|
System Memory
|
Voltage
|
Supports system management utility, Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V,
Memory Voltages |
|
|
Memory Capacity
|
16 DIMM slots
|
LED
|
UID/Remote UID
|
|
Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz
|
BMC/IPMI Heartbeat LED
|
||
|
Memory Type
|
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
|
Temperature
|
Monitoring for CPU and chassis environment
|
|
DIMM Sizes
|
LRDIMM: 64GB
|
CPU thermal trip support
|
|
|
RDIMM: 64GB
|
FAN
|
1x 4-pin fan header (up to 1 fan)
|
|
|
Memory Voltage
|
1.2V
|
PWM fan speed control
|
|
|
Error Detection
|
Corrects single-bit errors
|
Other Features
|
WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection, SDDC
|
|
Detects double-bit errors (using ECC memory)
|
Operating Environment
|
||
|
On-Board Devices
|
Operating Temperature Range
|
10°C - 35°C (50°F - 95°F)
|
|
|
Chipset
|
Inte C621
|
Non-Operating Temperature Range
|
-40°C - 70°C (-40°F - 158°F)
|
|
SATA
|
Inte C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
Operating Relative Humidity Range
|
8% - 90% (non-condensing)
|
|
Graphics
|
1 ASPEED AST2500 BMC port(s)
|
Non Operating Relative Humidity Range
|
5% - 95% (non-condensing)
|
|
Network Controllers
|
Single LAN, Networking options provided via SIOM module
|
|
|
|

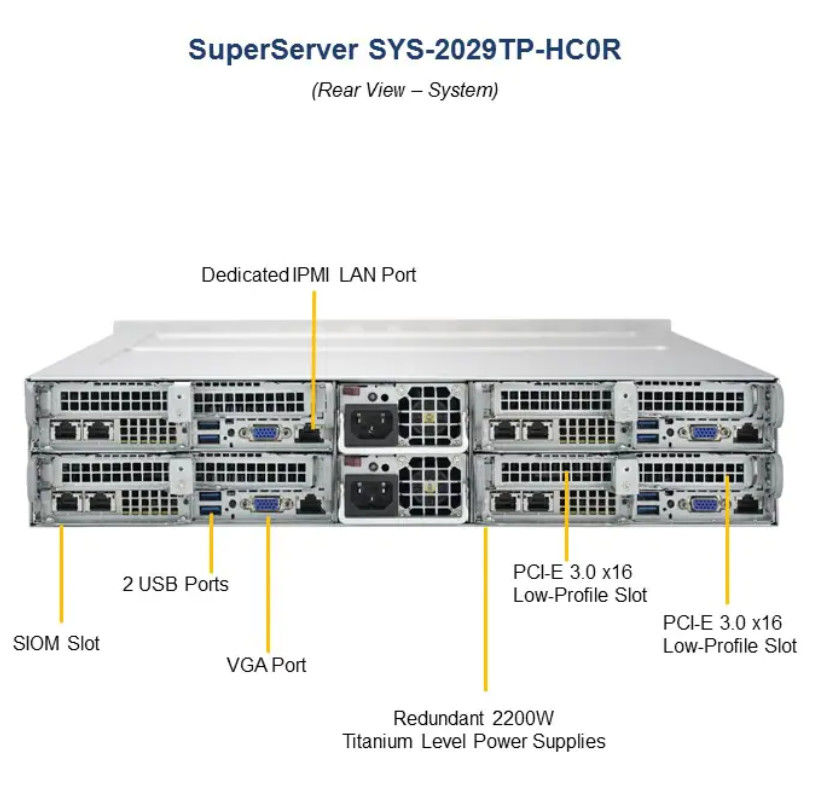

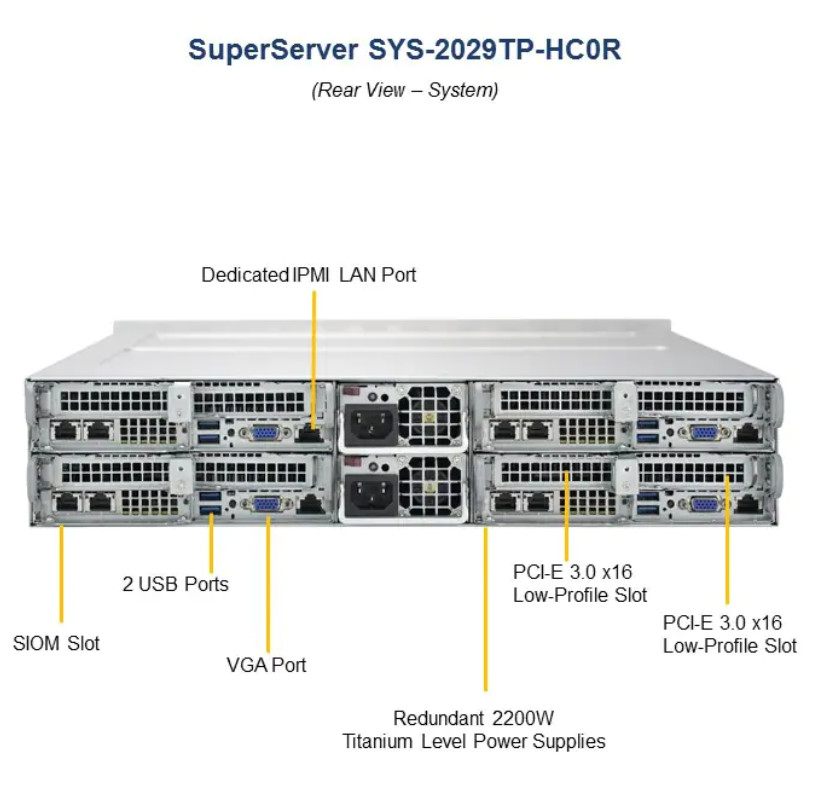

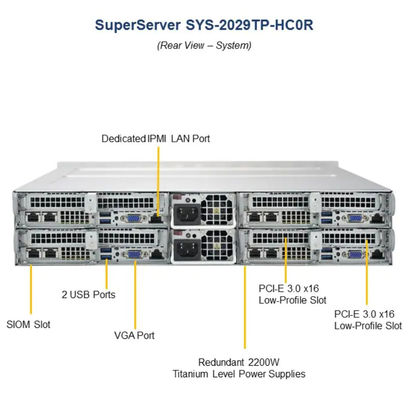

Input / Output
|
|
|
|
|
USB
|
2 USB 3.0 port(s) (2 rear)
|
|
|
|
Video Output
|
1 VGA port(s)
|
|
|
|
DOM
|
2 SuperDOM(Disk on Module) ports
|
|
|
|
TPM
|
1 TPM Header
|
|
|
|
|
|
|
|
