2 Tb/s Bandwidth Fibre Channel Switch with 24 to 64 Ports @ 32G and Dual Hot-Swappable Power Supplies, Brocade G620 Switch

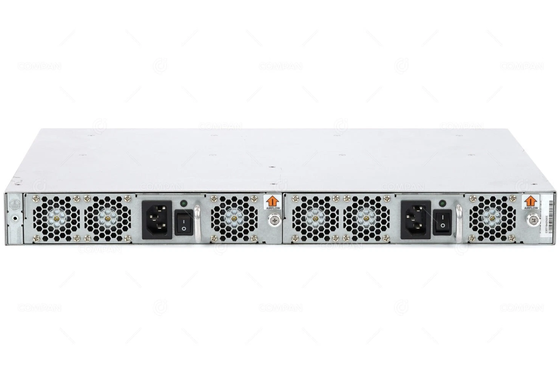

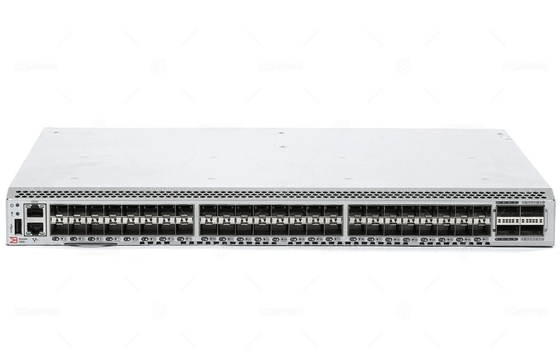

Large Image : 2 Tb/s Bandwidth Fibre Channel Switch with 24 to 64 Ports @ 32G and Dual Hot-Swappable Power Supplies, Brocade G620 Switch

Product Details:

Place of Origin:	China
Brand Name:	Brocade
Model Number:	G620

Payment & Shipping Terms:

Minimum Order Quantity:	1/set
Delivery Time:	2-3 work days
Payment Terms:	T/T
Supply Ability:	50pcs per week

Contact Now

2 Tb/s Bandwidth Fibre Channel Switch with 24 to 64 Ports @ 32G and Dual Hot-Swappable Power Supplies, Brocade G620 Switch

Description

Lifecycle:	Active	Access Gateway:	Supports
Bandwidth:	2 Tb/s	Certified Maximum:	6,000 Active Nodes; 56 Switches, 19 Hops In Brocade Fabric OS® Fabrics; Larger Fabrics Certified As Required
Power:	205W, Dual Hot-swappable Power Supplies	Size (mm):	440(W) X 43.9(H) X 355.6(D)
Total Line Rate Ports:	24 To 64 @ 32G
Highlight:	2 Tb/s Bandwidth Fibre Channel Switch , 24 to 64 Ports @ 32G Brocade G620 Switch , Dual Hot-Swappable Power Supplies Fibre Channel Switch

Take advantage of lightning-fast flash storage networking technology and adapt quickly to dynamic business demands with the Brocade G620 Switch. This powerful Gen 6 Fibre Channel switch shatters application performance barriers and simplifies scale-out network architectures—in an enviably small footprint. And with built-in instrumentation, you gain greater insight and control to reduce cost, management complexity, and risk.

Breakthrough performance: Get the performance you need to support critical business applications and the most from your investment in solid state storage technology.

Increased scalability: Reduce operating costs and management complexity by simplifying scale-out architectures—all in a 1U form factor.

Operational stability: Reduce risk with the industry’s first built-in metrics. Achieve greater control and operational insights to quickly identify issues and easily meet or crush SLAs.

Specification	Value
Lifecycle	Active
Access Gateway	Supports
Bandwidth	2 Tb/s
Certified Maximum	6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Fibre Channel Performance	Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4/8/10/16/32G port speeds; 10 Gb/s optionally programmable to fixed port speed. Auto-sensing of 432/416/48/44G speeds on the QSFP ports with Brocade FOS v8.2.0
FICON Support	Supports
Frame Based ISL Trunking	256Gb/s frame-based trunk (optional)
Power	205W, dual hot-swappable power supplies
Size (mm)	440(W) x 43.9(H) x 355.6(D)
Total Line Rate Ports	24 to 64 @ 32G

2 Tb/s Bandwidth Fibre Channel Switch with 24 to 64 Ports @ 32G and Dual Hot-Swappable Power Supplies, Brocade G620 Switch
