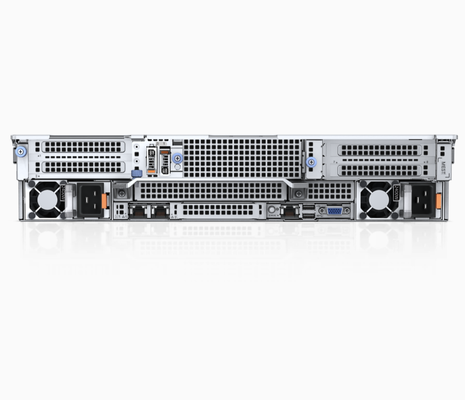

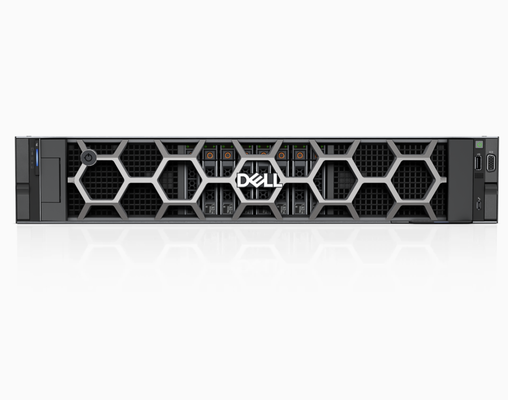

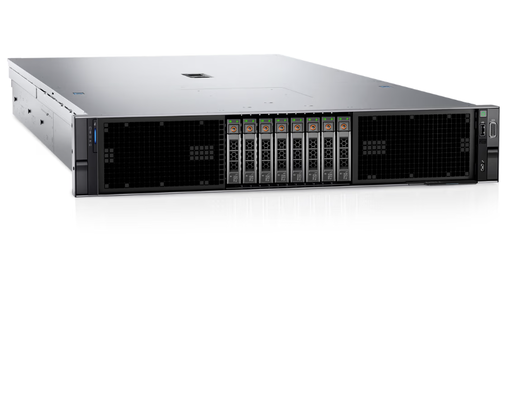

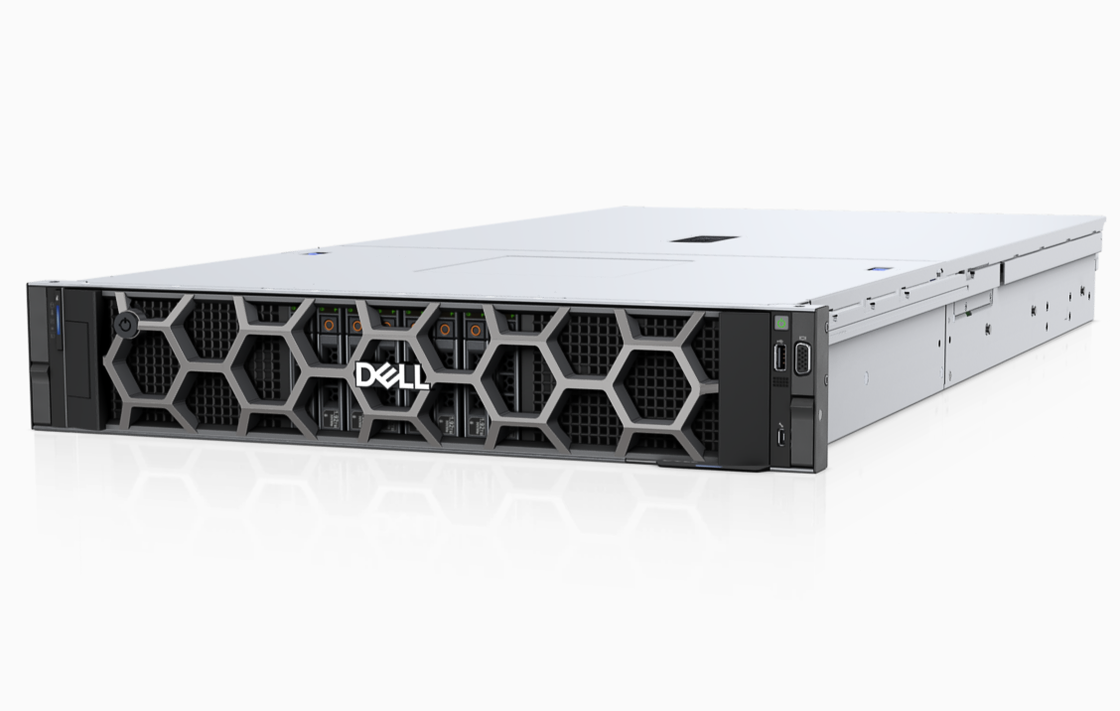

Dell PowerEdge R760xa 2U Rack Server - Dual Socket GPU Accelerated Dell PowerEdge Server

FORM

Dell PowerEdge R760xa 2U Rack Server

Processor

Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology
Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and optional Intel® QuickAssist Technology

Memory

• 32 DDR5 DIMM slot, supports RDIMM 8 TB max
• Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
• Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor
• Supports registered ECC DDR5 DIMMs only

Drive Bays

Front bays:
• Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
• Up to 6 x 2.5-inch NVMe, max 92.16 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB

Power Supplies

• 3200 W Titanium 277–305 VAC or 336 HVDC, hot swap redundant
• 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Dimensions

• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 946.73 mm (37.27 inches) - without bezel
932.89 mm (36.73 inches) - with bezel
