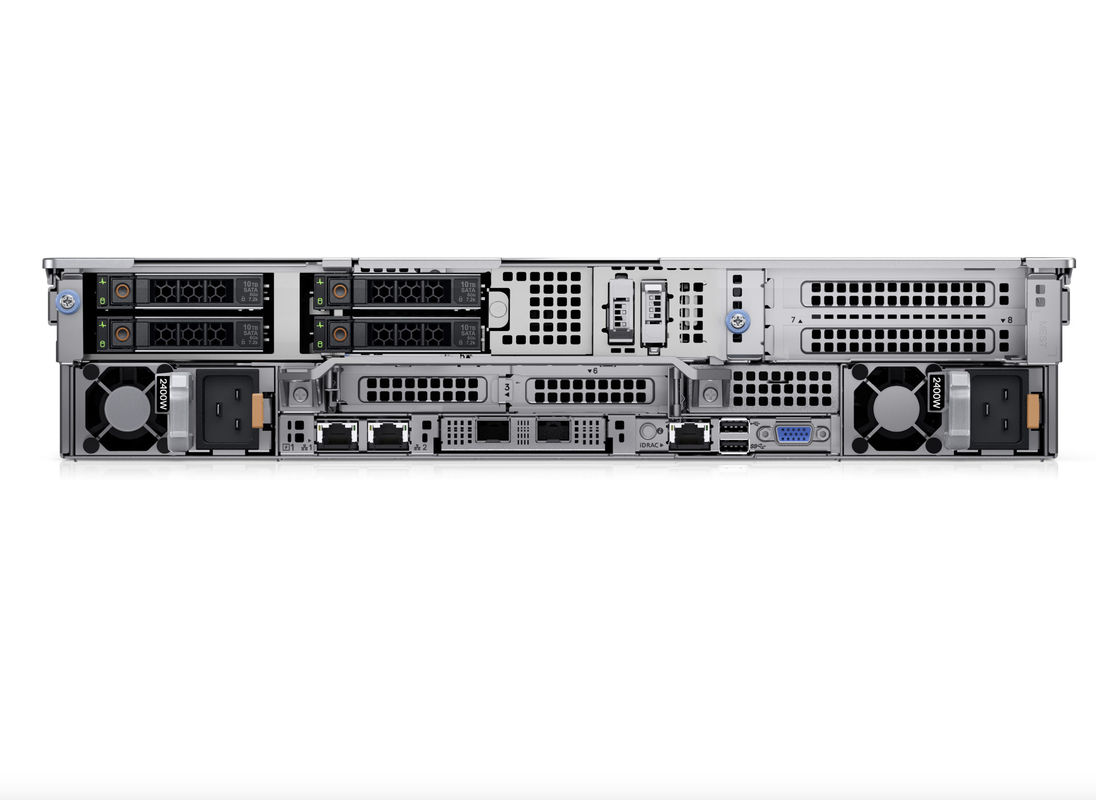

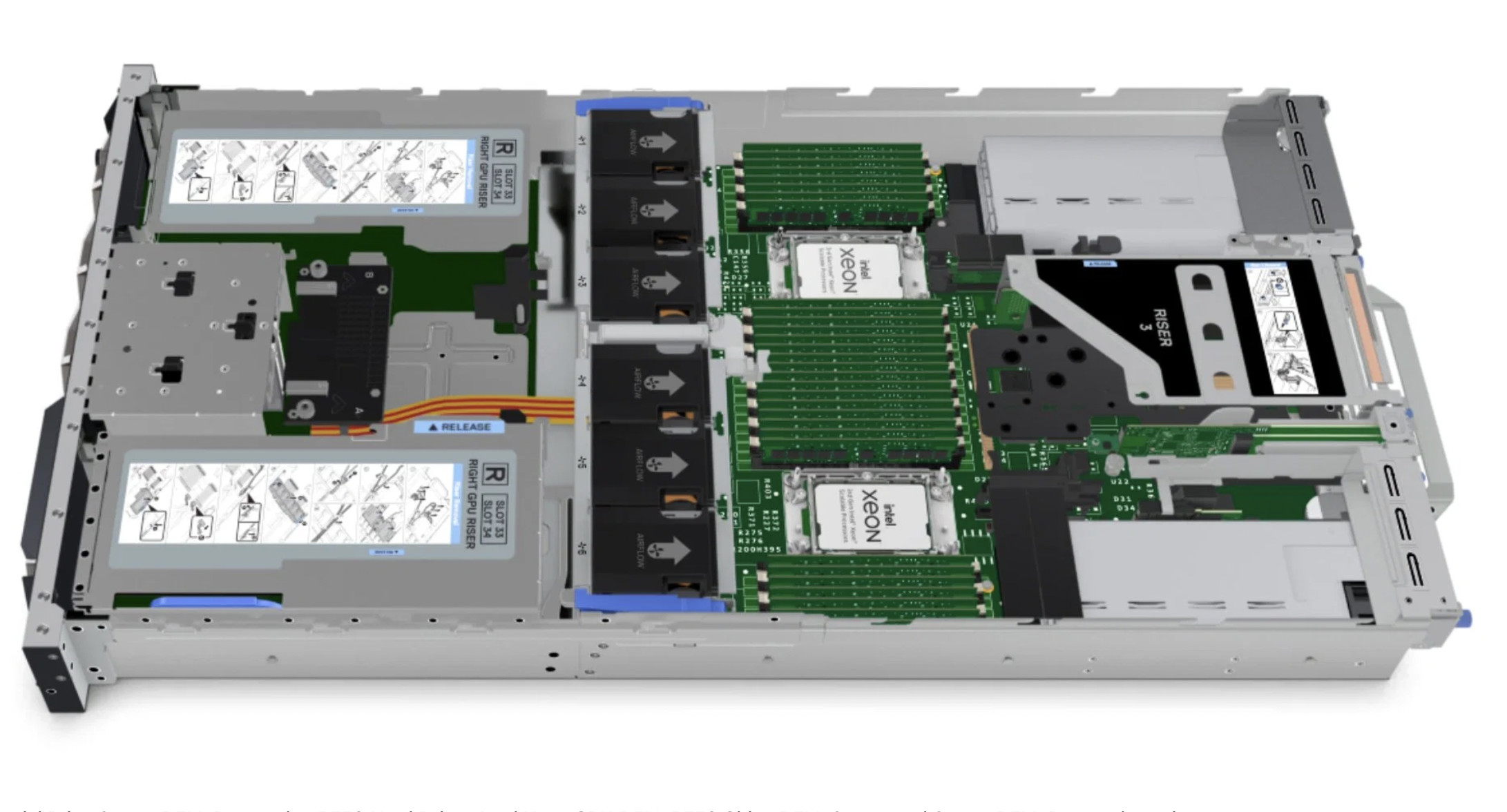

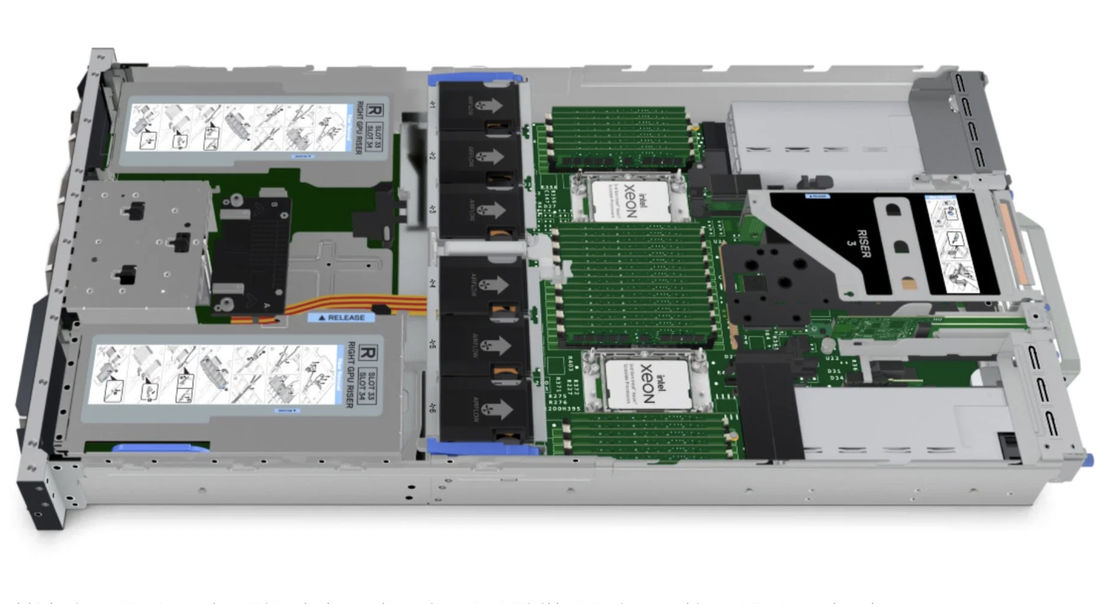

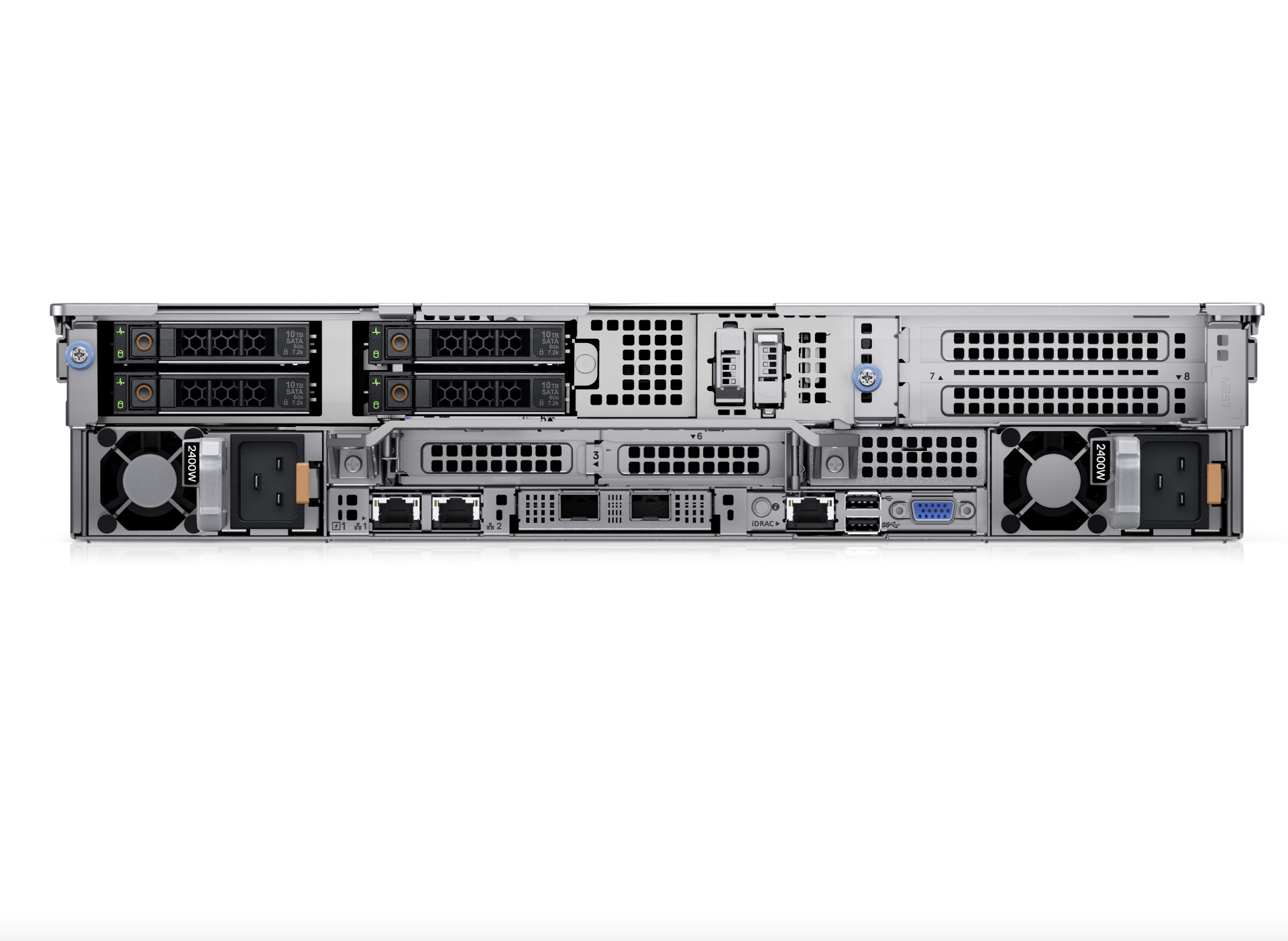

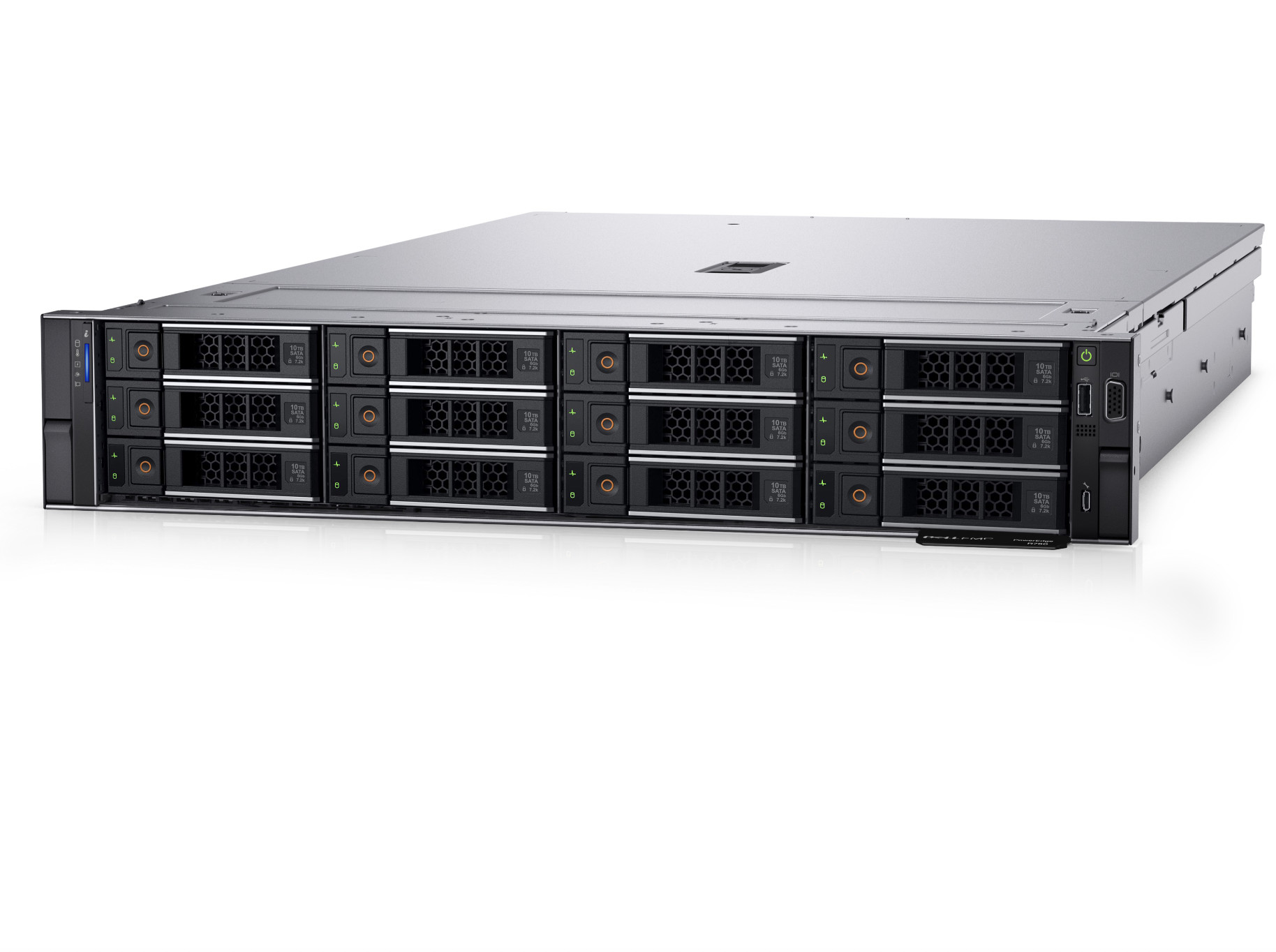

DELL PowerEdge R750 2U Storage Server

DELL PowerEdge R750 2U Storage Server
Server Processor Information

• Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

Storage

• Front Bays
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
  • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB
• Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Dell R750 Memory

• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
• Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
• Supports registered ECC DDR4 DIMMs only

PowerEdge R750 Dimensions & Weight

• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 758.3 mm (29.85 inches) - without bezel
• 772.14 mm (30.39 inches) - with bezel
